Curtiss-Wright Parvus SWI-22-10-10 User Manual

MNL-0641-01 Rev A3
ECO-4823
Effective: 04 Oct 16
Page 15 of 107

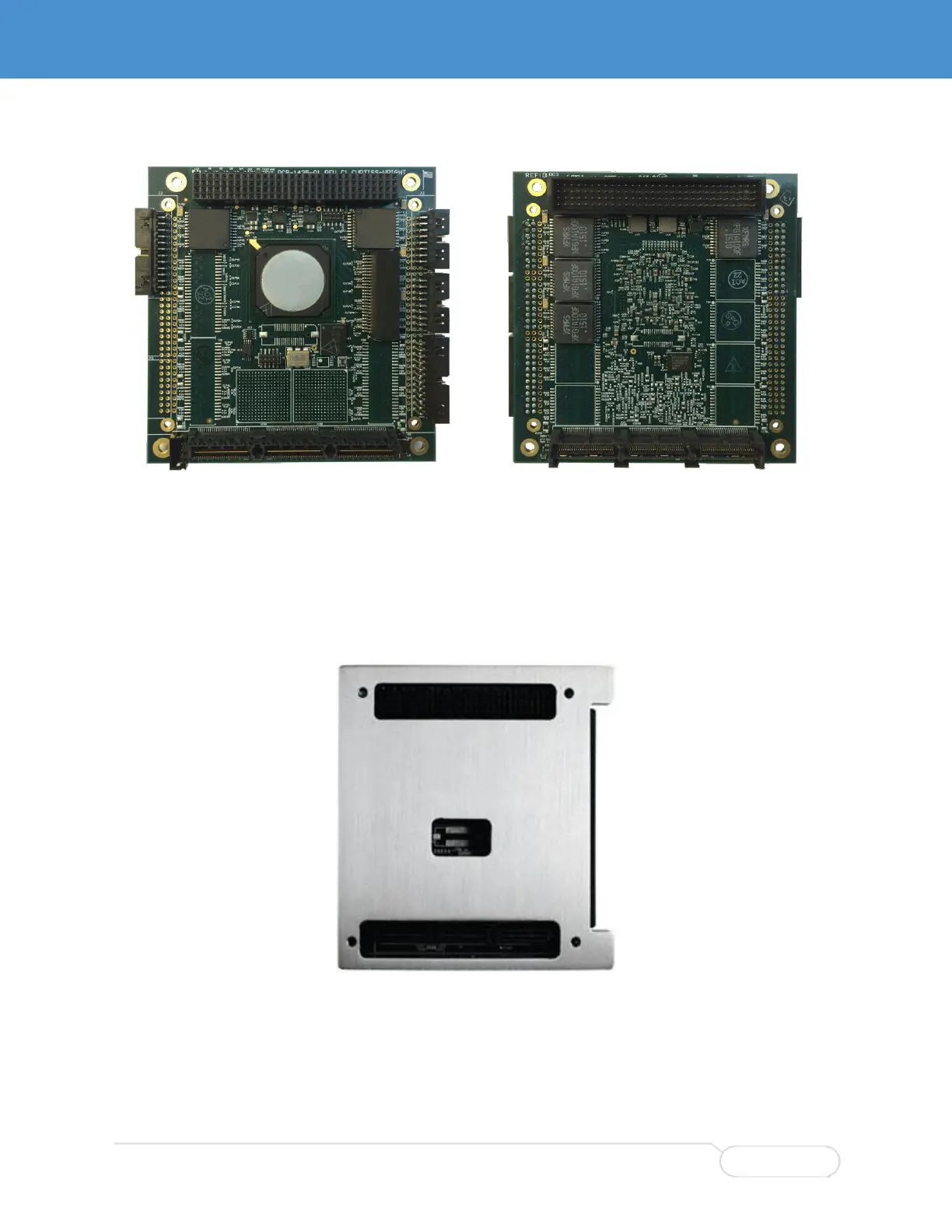

Figure 4. SWI-22-10-01 Card
SWI-22-10 THERMAL PLATE
The SWI-22-10-01T and -10T include a factory-installed thermal plate for conduction cooling in a no-
moving-parts system. Figure 5 shows the SWI-22-10-10T with the factory-installed thermal plate.
Figure 5. SWI-22-10 Card with Thermal Plate
