Curtiss-Wright Parvus SWI-22-10-10 - Figure 8. Thermal Plate Horizontal Dimensions

MNL-0641-01 Rev A3
ECO-4823
Effective: 04 Oct 16
Page 17 of 107

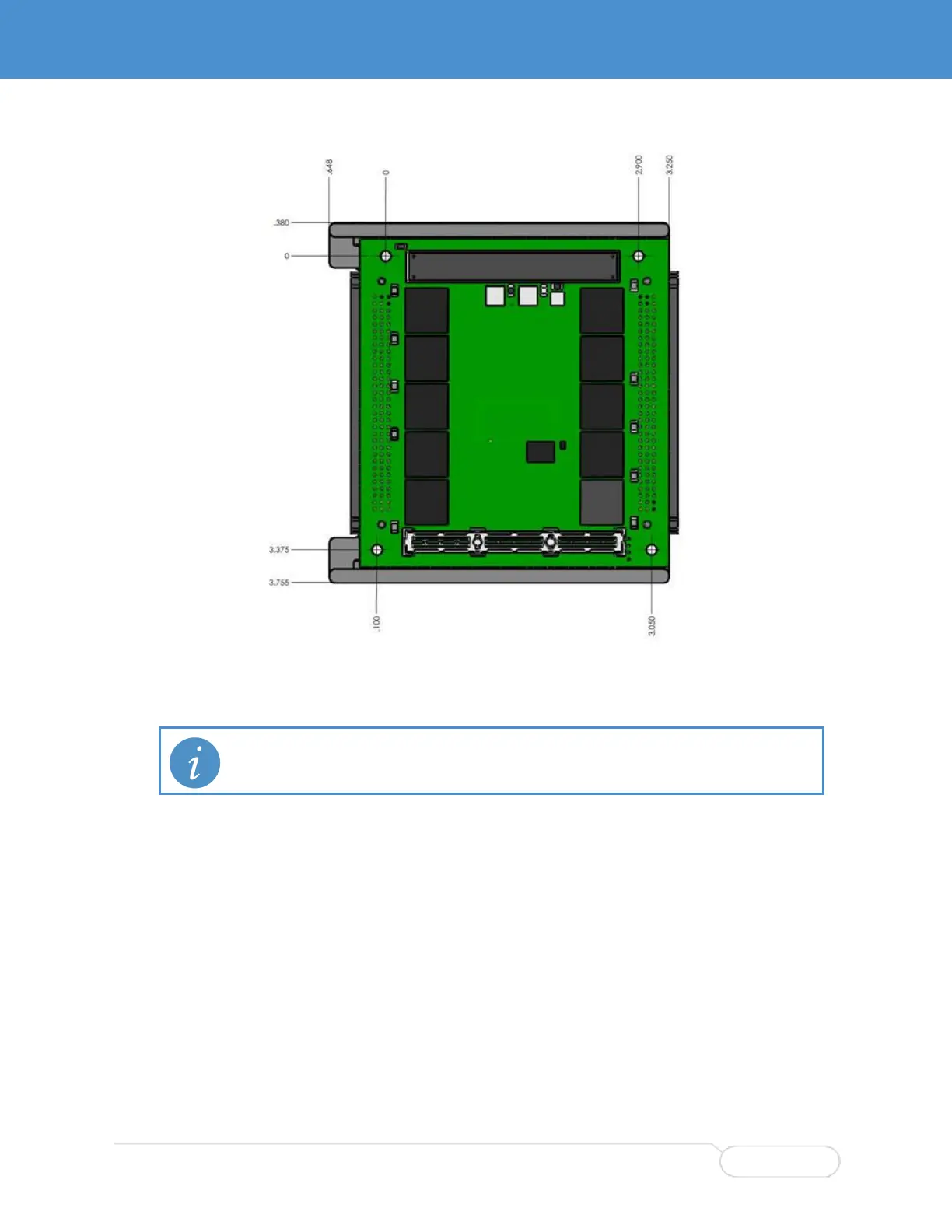

Figure 8. Thermal Plate Horizontal Dimensions
The 2D drawings and 3D model for the thermal plate are available to customers that wish to design their
own thermal solution.
Note: If you do not use the thermal plate available from Curtiss-Wright, then your system design
must provide adequate heat dissipation.
