CHAPTER 5 CONNECTOR DESCRIPTIONS
This chapter identifies connector part numbers, locations, and pinouts to facilitate fabrication of cables
that can connect to the SWI-22-10. The chapter describes the card-specific connectors for the SWI-22-
10-10 and SWI-22-10-01 and then describes the connectors common to both cards. Finally,
implementation information for the console, zeroize, and LED ports is provided.
SWI-22-10-10 CARD-SPECIFIC CONNECTORS
PART NUMBERS
The following table shows the manufacturer part numbers for the SWI-22-10-10 connectors (identified in
Figure 15), together with the suggested mating connectors.
Connector
Part Number
Mating Connector
J2 & J3
Harwin M83-LML3M1N96-0000-000
Harwin M83-LFC1F1N96-0000-000 for 24- gauge CAT-5E wiring
Harwin M83-LFT1F2N96-0000-000 for flex cable or PCB mounting

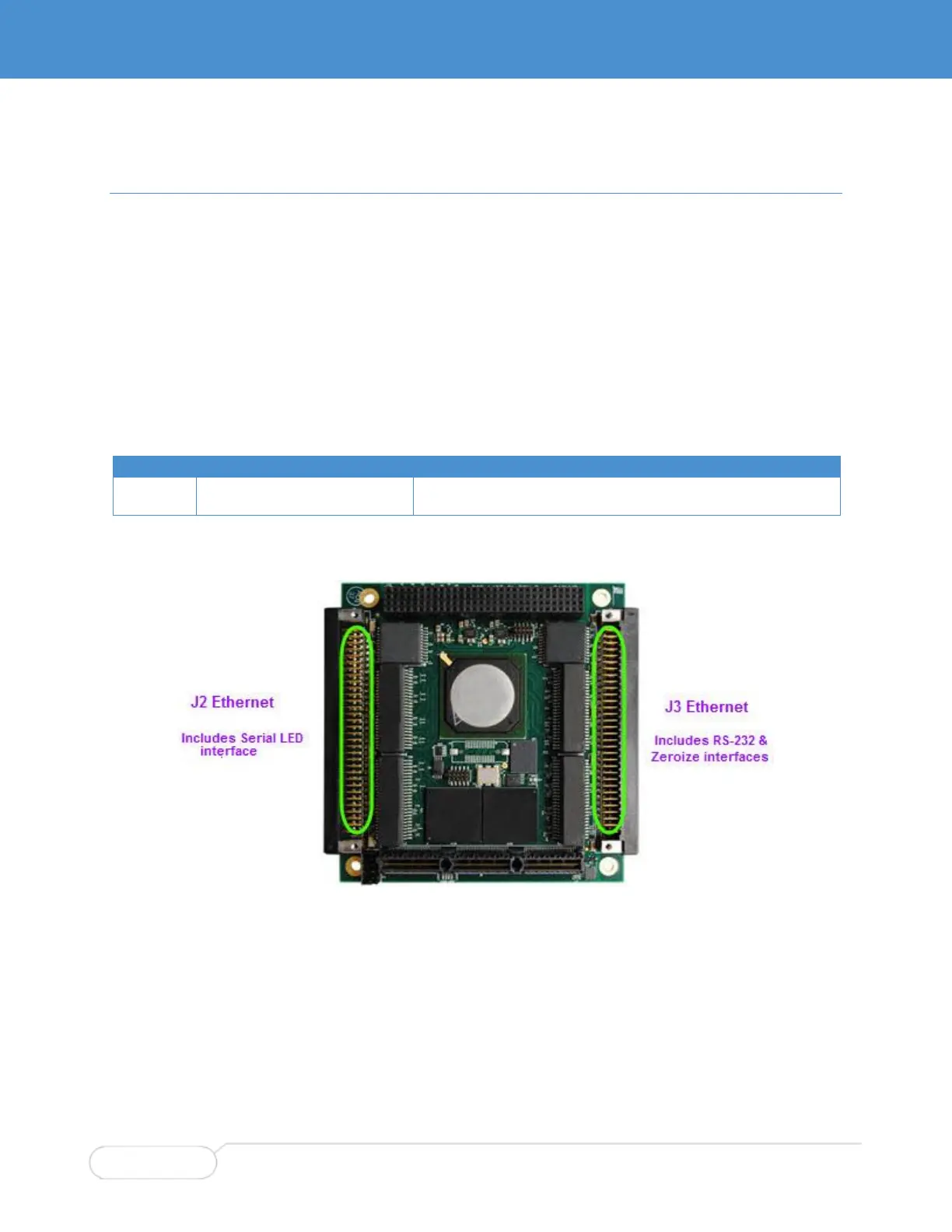

Figure 15. SWI-22-10-10 Ethernet Connectors
DESCRIPTION AND PINOUTS
Connectors J2 and J3 form the Ethernet Switch Interface for the SWI-22-10-10.
 20 Gigabit Ethernet Ports - The ports are numbered 1 through 20. Each port has four differential
matched pairs: A, B, C, and D (e.g., GBE20_A_P and GBE20_A_N).
 RS-232 Port - Serial console interface
 Zeroize - an external configuration erase function which returns the board to a default
configuration state.
 Serial LED Interface
