Curtiss-Wright Parvus SWI-22-10-10 User Manual

Chapter 2 Hardware Description
Parvus SWI-22-10
Curtiss-Wright
Page 16 of 107
MNL-0641-01 Rev A3
ECO-4823
Effective: 04 Oct 16

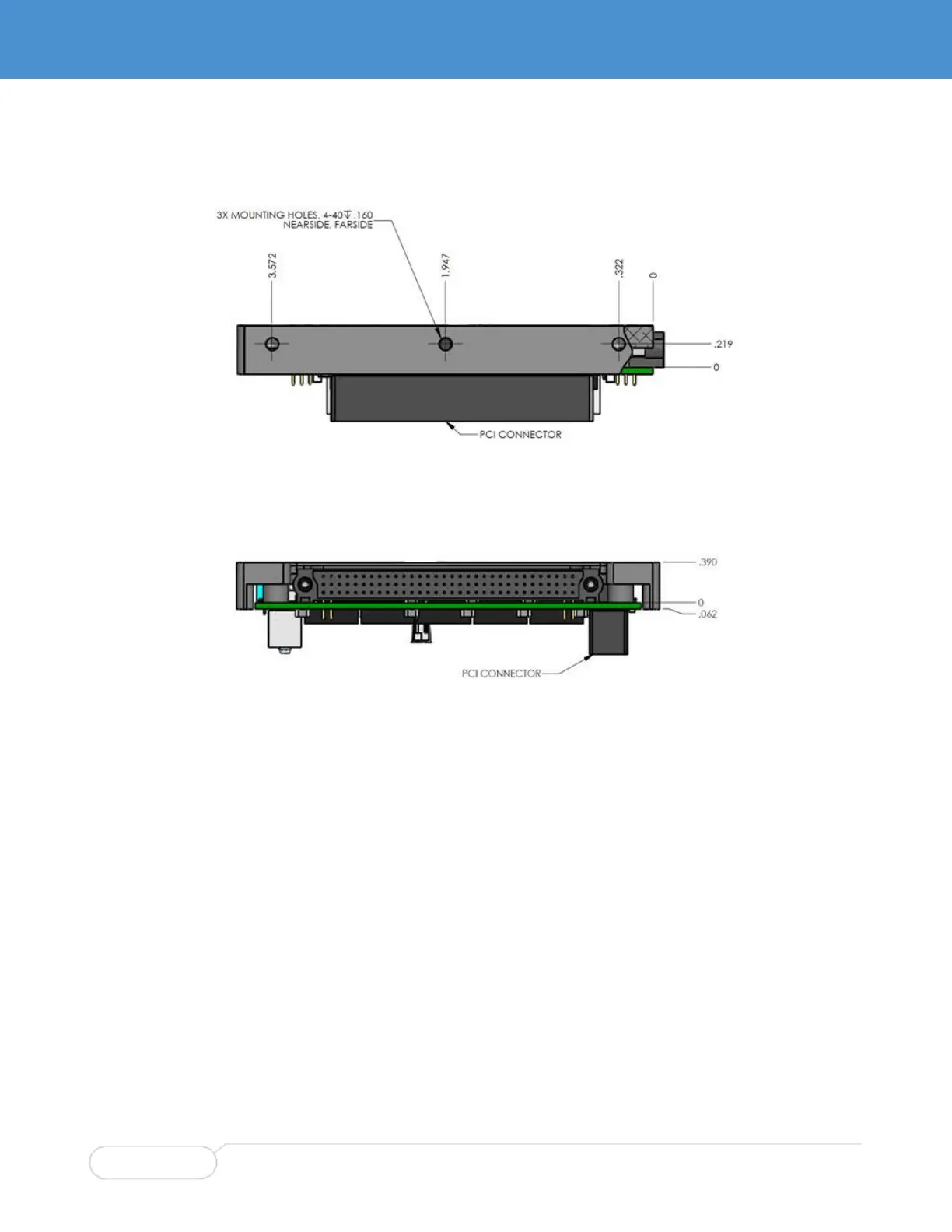

Figure 6 shows the mounting holes in the sides of the thermal plate that are used to mount the thermal
plate in a chassis for heat dissipation.
Figure 6. Thermal Plate Mounting Hole Locations
Figure 7 and Figure 8 show where the thermal plate is located relative to the PCB.
Figure 7. Thermal Plate Vertical Dimensions
