CONNECTORS COMMON TO ALL SWI-22-10 MODELS
COMMON CONNECTOR LOCATIONS
Figure 19 shows the location of the common connectors for all versions of the SWI-22-10. These
connectors are:
 Auxiliary power connector (P3)
 Mounting holes (MTG1, MTG2)
 PCI Connectors (J1 & J6)
 PCI-Express Connectors (J5 & J8)

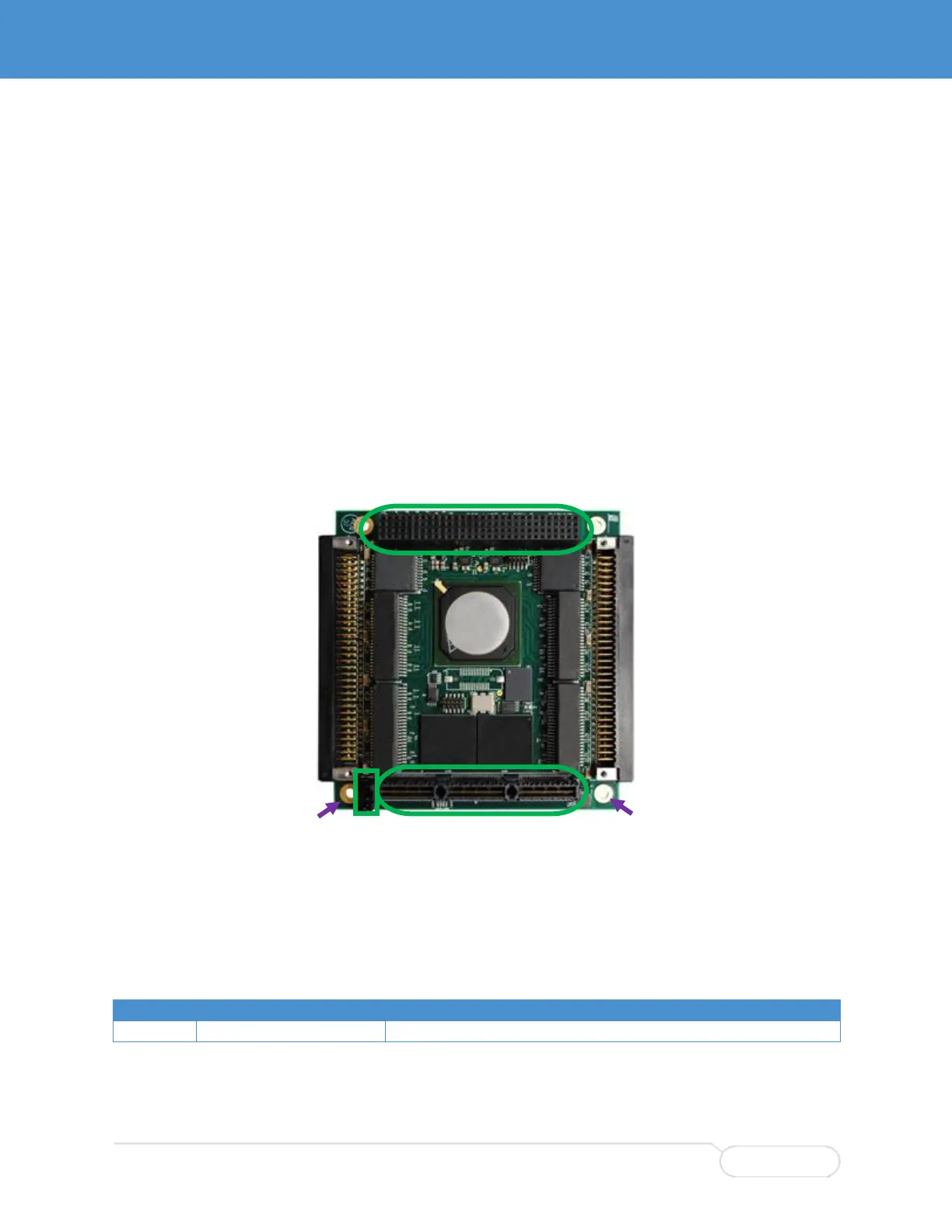

Figure 19. SWI-22-10 Common Connectors
AUXILIARY POWER CONNECTOR (P3)
The following table shows the manufacturer part number for the SWI-22-10-XX auxiliary power connector
(identified in Figure 20), together with the suggested mating connector.
Connector
Part Number
Mating Connector
P3
Hirose DF3-4P-2DSA(01)
Hirose DF3-4S-2C, use with Hirose crimp pins DF3-2428SCC or DF3-22SCC.
P3 is an alternative way to provide power to the board during lab testing and configuration. Figure 20
shows the pin orientation for P3.
P3
MTG1
MTG2
J1/J6 (on bottom)
PCI
J5/J8 (on bottom)
PCI Express
