Chapter 3. Hardware Installation
BREAKOUT CABLE SET
You should test the SWI-22-10 interfaces and cabling prior to installation in the target system to ensure
full operational capability. Full bench-top testing can be performed by using the appropriate cable set for
the card. You can also use a custom set of cables made specifically for the intended target system,
vehicle, or craft; refer to Chapter 5 for connector pinouts and descriptions.
The breakout cable set (CBL-SWI-22-10-10 or CBL-SWI-22-10-01) is available for purchase through
Curtiss-Wright and is intended for lab or bench testing purposes only.
The SWI-22-10-10 cable set (CBL-SWI-22-10-10, shown in Figure 9) includes the following cables:
SWI-22-10, ten Ethernet, console,
zeroize
Breaks out to Ports 1-6 and Ports 17-20 RJ-45 cables, DB-9
console port cable, and zeroize port cable.
SWI-22-10, ten Ethernet, LEDs
Breaks out to Ports 7-16 RJ-45 cables and LED port cable
SWI-22-10, external power
Connects auxiliary power connector and chassis ground ring
lugs to banana plugs for a bench-top power supply.
6’ DB9 M/F serial extension
Extends console port connection length if breakout cable is
not long enough to reach host computer.

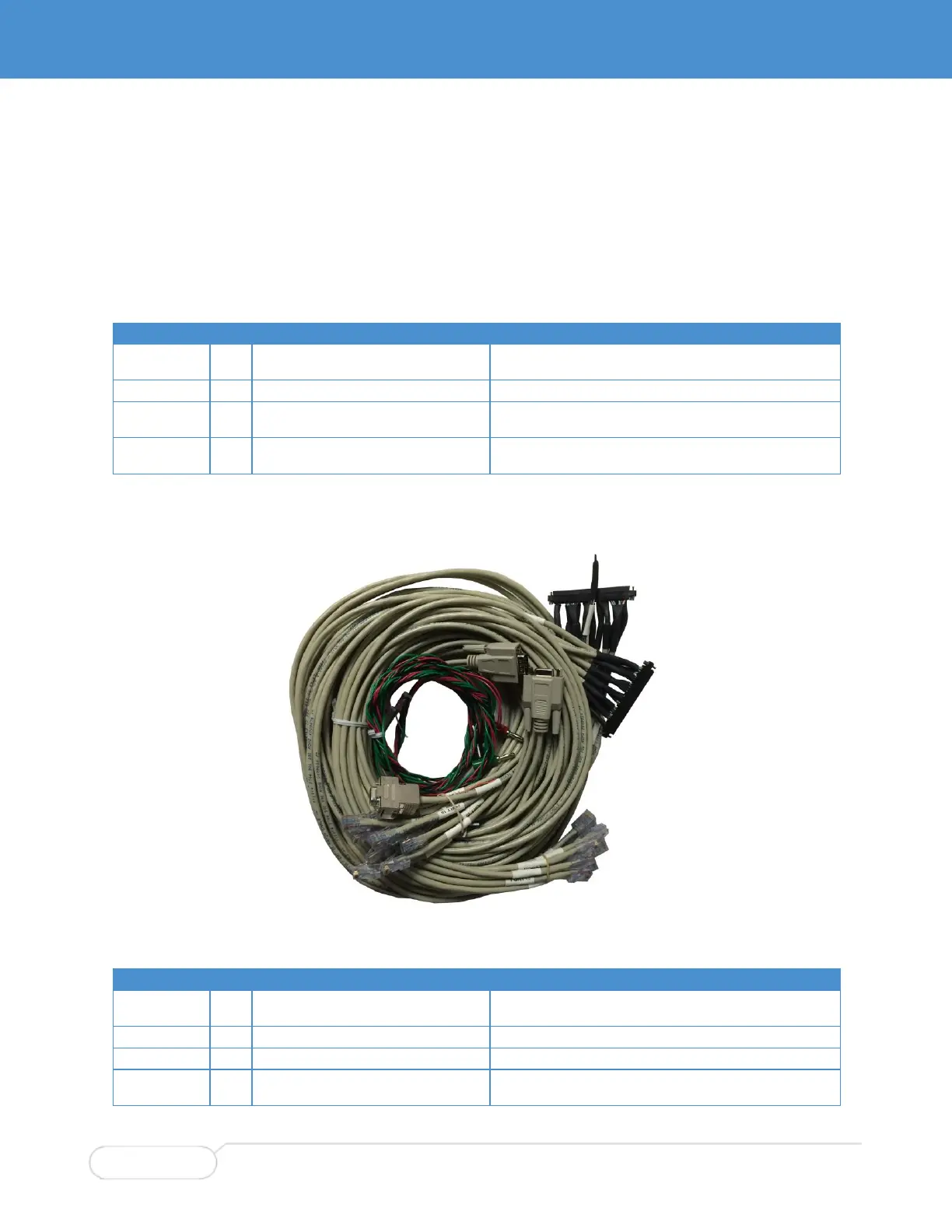

Figure 9. Breakout Cableset (CBL-SWI-22-10-10)
The SWI-22-10-01 cable set (CBL-SWI-22-10-01, shown in Figure 10) includes the following cables:
SWI-22-10-0x, Ethernet ports 1-2,
console, zeroize
Breaks out to Ethernet Ports 1 and 2 RJ-45 cables, DB-9
console port cable, and zeroize port cable.
SWI-22-10-0x, Ethernet ports 3-4
Breaks out to Ports 3 and 4 RJ-45 cables.
SWI-22-10-0x, Ethernet ports 5-6
Breaks out to Ports 5 and 6 RJ-45 cables.
SWI-22-10-0x, Ethernet ports 7-8, LEDs
Breaks out to Ports 7 and 8 RJ-45 cables and LED port
cable.
