Curtiss-Wright Parvus SWI-22-10-10 User Manual

Chapter 5 Connector Descriptions
Parvus SWI-22-10
Curtiss-Wright
Page 54 of 107
MNL-0641-01 Rev A3
ECO-4823
Effective: 04 Oct 16

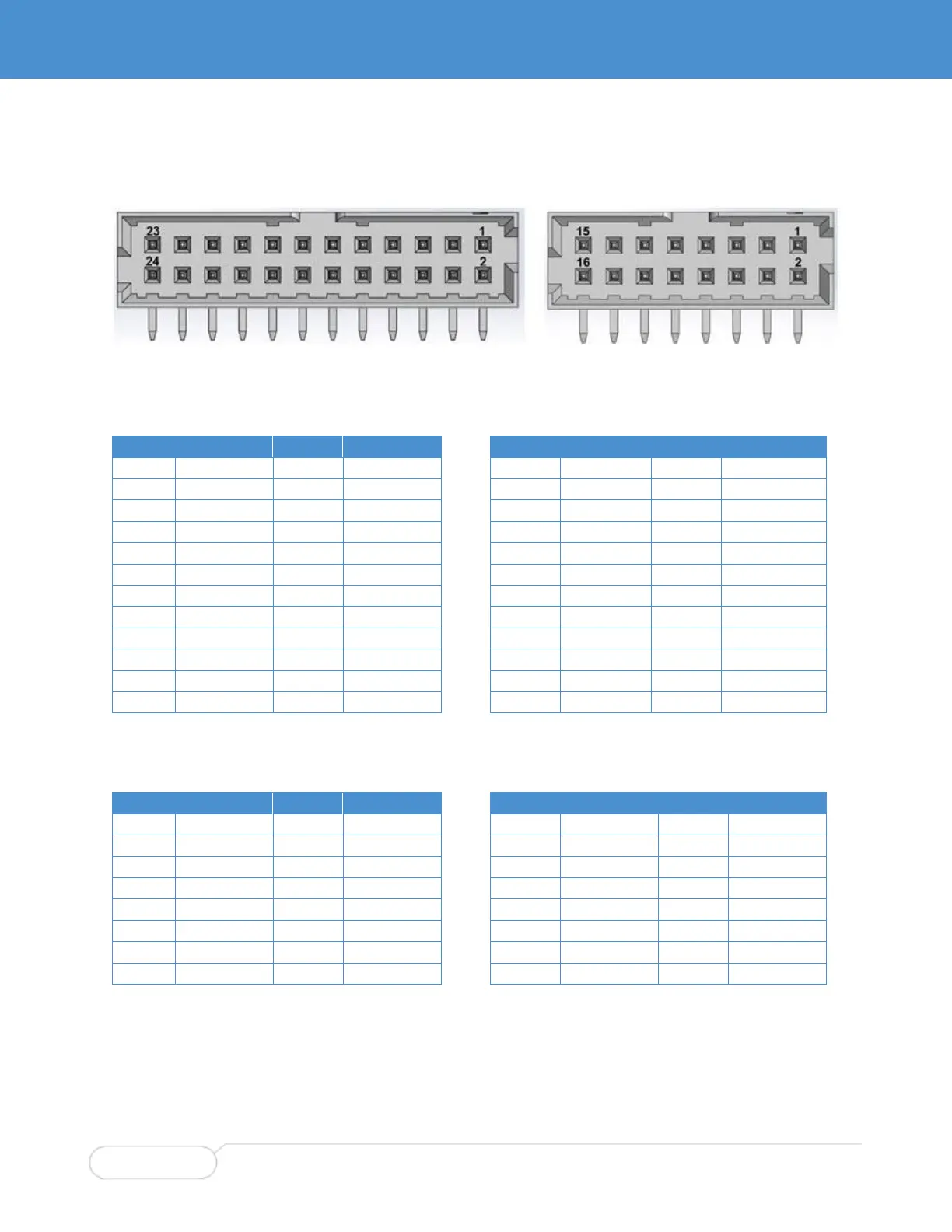

Figure 18. SWI-22-10-01 Ethernet Connector Detail
Connectors P4 and P7 pin arrangement Connectors P5 and P6 pin arrangement
P4 Pinout
P7 Pinout
P10 PIN
SIGNAL
P10 PIN
SIGNAL
P13 PIN
SIGNAL
P13 PIN
SIGNAL
1
GBE8_A_P
2
GBE8_B_P
1
GBE2_A_P
2
GBE2_B_P
3
GBE8_A_N
4
GBE8_B_N
3
GBE2_A_N
4
GBE2_B_N
5
GBE8_C_P
6
GBE8_D_P
5
GBE2_C_P
6
GBE2_D_P
7
GBE8_C_N
8
GBE8_D_N
7
GBE2_C_N
8
GBE2_D_N
9
GBE7_A_P
10
GBE7_B_P
9
GBE1_A_P
10
GBE1_B_P
11
GBE7_A_N
12
GBE7_B_N
11
GBE1_A_N
12
GBE1_B_N
13
GBE7_C_P
14
GBE7_D_P
13
GBE1_C_P
14
GBE1_D_P
15
GBE7_C_N
16
GBE7_D_N
15
GBE1_C_N
16
GBE1_D_N
17
NC
18
NC
17
NC
18
NC
19
LED_LOAD
20
LED_nRESET
19
NC
20
ZEROIZE
21
LED_CLOCK
22
LED_PWR
21
RS232_RXD
22
ZEROIZE GND
23
LED_DO
24
GND
23
RS232_TXD
24
GND
P5 Pinout
P6 Pinout
P14 PIN
SIGNAL
P14 PIN
SIGNAL
P15 PIN
SIGNAL
P15 PIN
SIGNAL
1
GBE4_A_P
2
GBE4_B_P
1
GBE6_A_P
2
GBE6_B_P
3
GBE4_A_N
4
GBE4_B_N
3
GBE6_A_N
4
GBE6_B_N
5
GBE4_C_P
6
GBE4_D_P
5
GBE6_C_P
6
GBE6_D_P
7
GBE4_C_N
8
GBE4_D_N
7
GBE6_C_N
8
GBE6_D_N
9
GBE3_A_P
10
GBE3_B_P
9
GBE5_A_P
10
GBE5_B_P
11
GBE3_A_N
12
GBE3_B_N
11
GBE5_A_N
12
GBE5_B_N
13
GBE3_C_P
14
GBE3_D_P
13
GBE5_C_P
14
GBE5_D_P
15
GBE3_C_N
16
GBE3_D_N
15
GBE5_C_N
16
GBE5_D_N
