Design Guide | iC2-Micro Frequency Converters Mechanical Installation Considerations
e30bv094.11
A
B
C

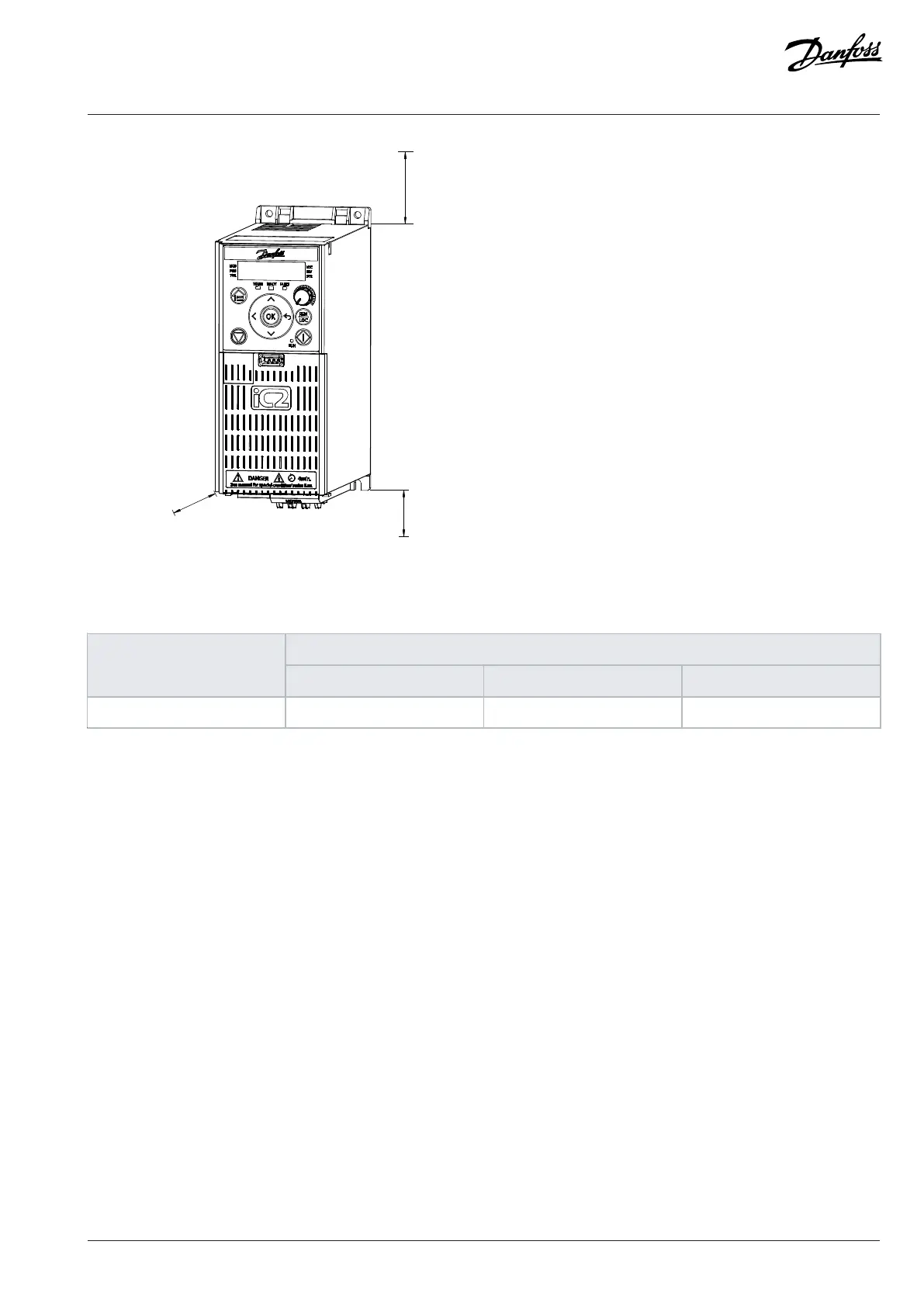

Figure 36: Recommended Clearance for Service Access
Table 52: Recommended Clearances for Service Access
Recommended space for accessEnclosure size
Above (A) [mm (in)] Below (B) [mm (in)] Front (C) [mm (in)]
All enclosure sizes 100 (3.9)
(1)(1)
200 (7.9)
(1)
100 (3.9)
1) Sufficient space to the cooling duct, exceeding need for cooling. Alternatively, unplug the drive, and remove from the installation for service.
