Enter/Exit Programming Mode1D Code Selection
178 Gryphon™ I GD44XX/GBT4400/GM440X
Industrial 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Industrial 2 of 5
Length Control. Length 1 is the minimum label length if in Variable Length
Mode, or the first fixed length if in Fixed Length Mode. Length includes the
bar code’s data charac
ters only. The length can be set from 0 to 50 charac-
ters.
Table 11 provides some examples for setting Length 1. See page 283 if you
want detailed instructions
on setting this feature.

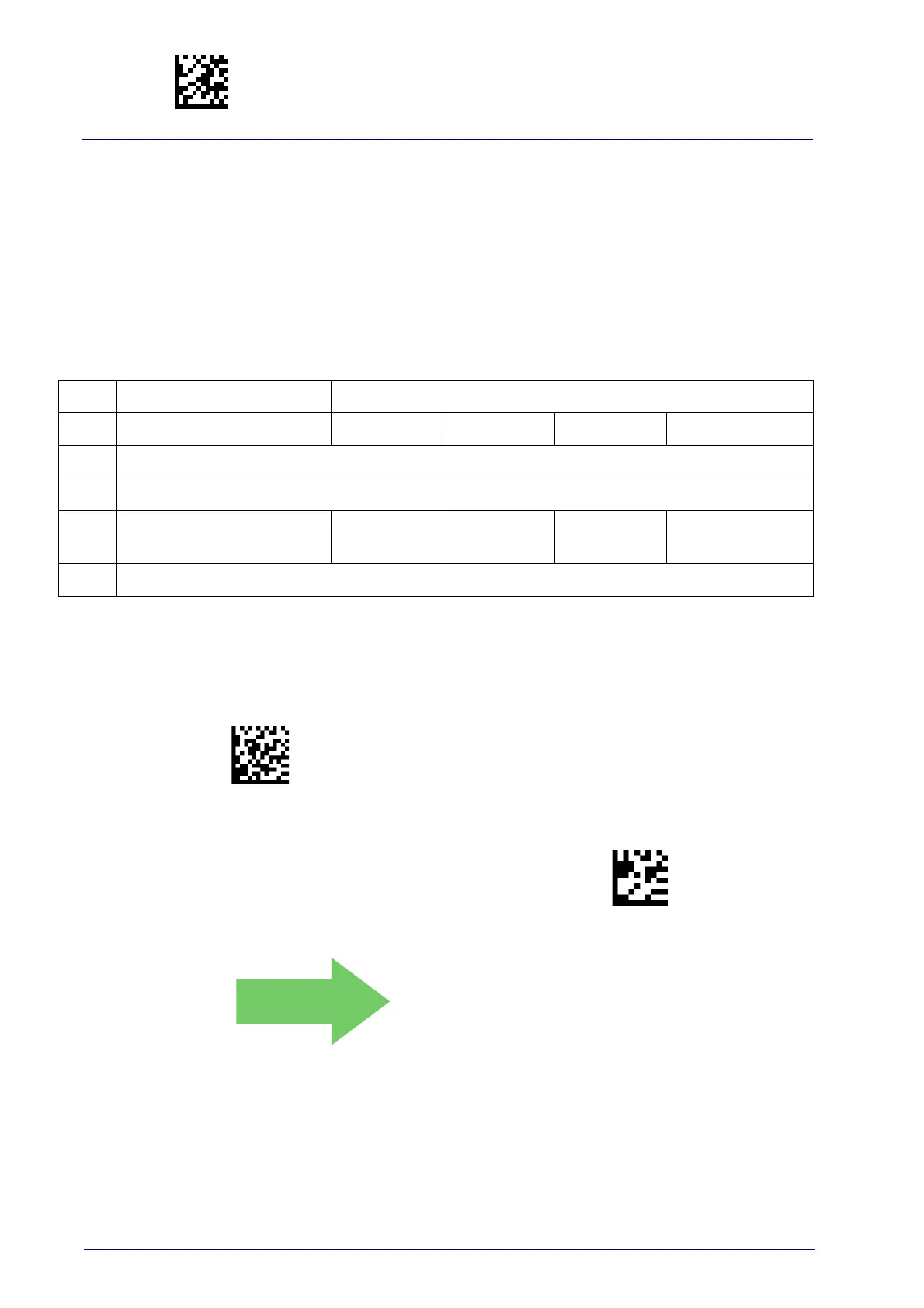

Table 11. Industrial 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CU2L1
Select Industrial 2 of 5 Set Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and not
save the entry string. You can then start again at the beginning.
~
CANCEL
DEFAULT
01 = Length 1 is 1 Character
