Enter/Exit Programming Mode1D Code Selection
198 Gryphon™ I GD44XX/GBT4400/GM440X
GS1 DataBar™ Expanded Set Length 1
This feature specifies one of the bar code lengths for GS1 DataBar™
Expanded Length Control. Length 1 is the minimum
label length if in Vari-
able Length Mode, or the first fixed length if in Fixed Length Mode. Length
includes the bar code’s data characters only. The length can be set from 1 to
74
characters.
Table 17 provides some examples for setting Length 1. See page 283 for
detailed instructions on setting this feature.

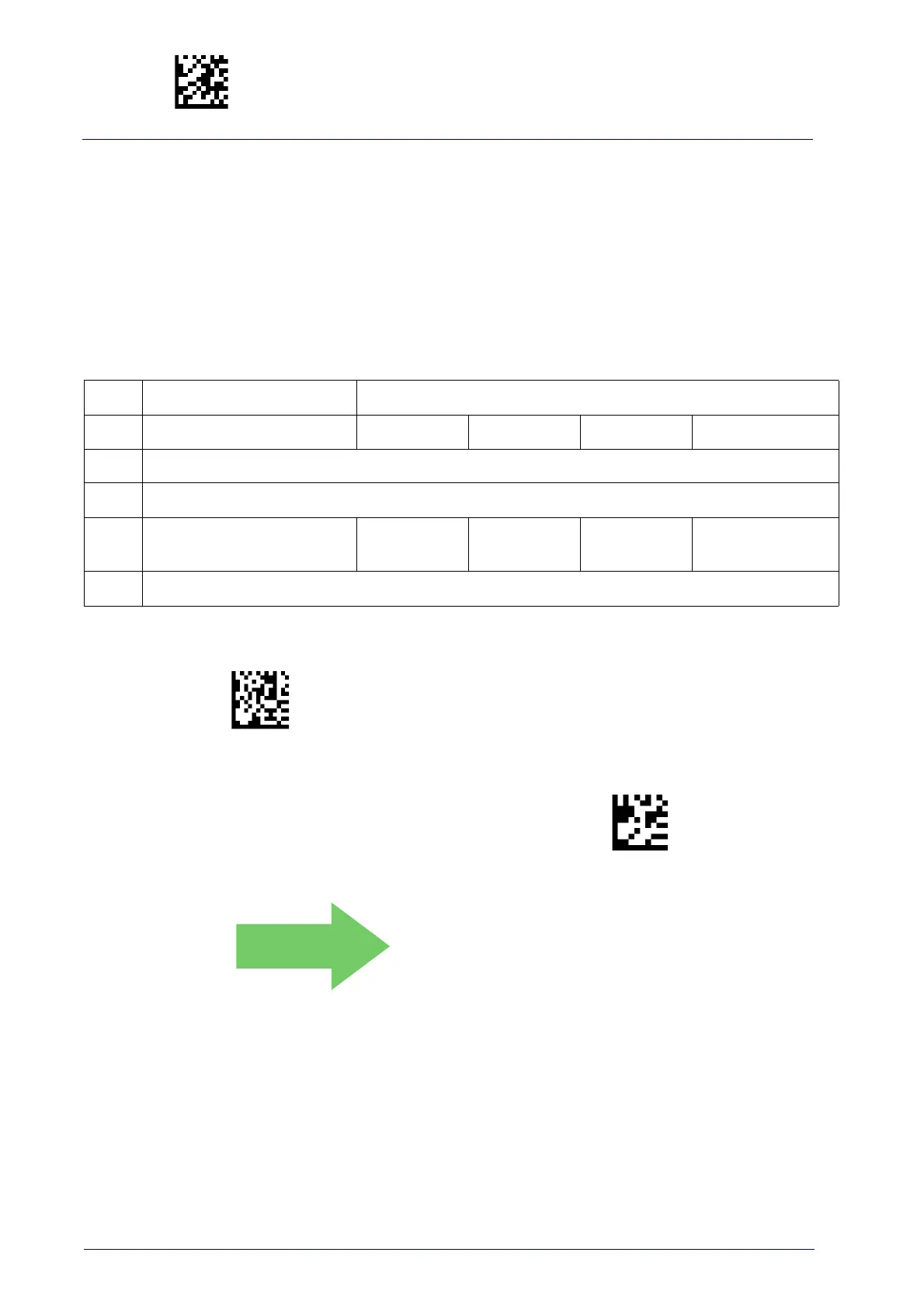

Table 17. GS1 DataBar™ Expanded Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Character 07 Characters 52 Characters 74 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 1SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ AND ‘4’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CXBL1
Select GS1 DataBar™ Expanded Set Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start again
at the beginning.
~
CANCEL
DEFAULT
01 = Length 1 is 1 Character
