Setup
22
Gryphon™ I GD44XX/GBT4400/GM440X

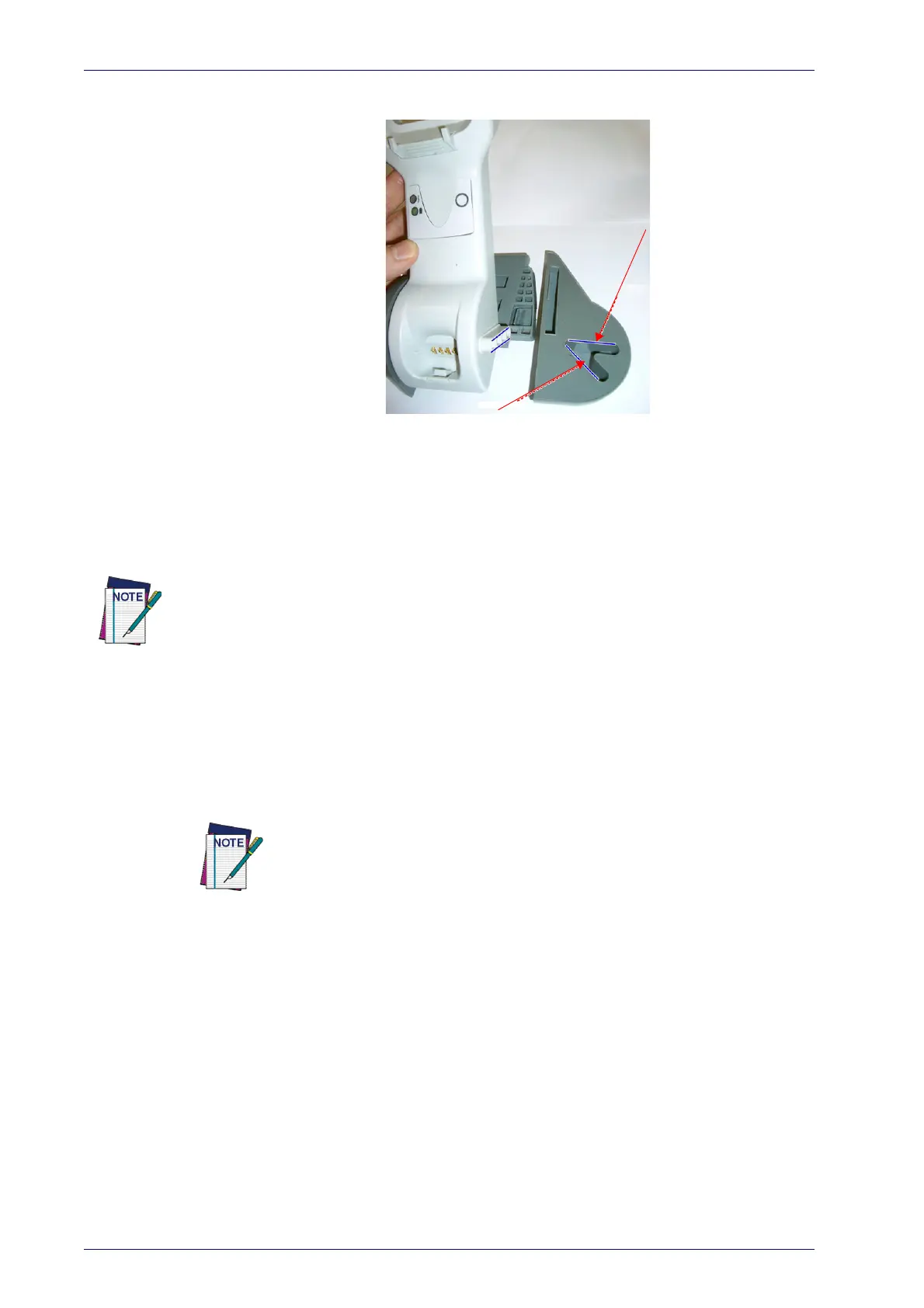

3. The stand can now be repositioned in either horizontal or standing
position.
Connecting the Base Station
Figure 7 shows how to connect the Base Station to a terminal, PC or other
host device. Turn off the host before connection and consult the manual for
tha
t equipment (if necessary) before proceeding. Connect the interface cable
before applying power to the Base Station.
The Gryphon GBT4400 can be set up to require a PIN code when connecting to
the host. If you are connecting to a system that uses a custom security PIN,
follow the procedure in
"Connecting the Base when Security Pin is Enabled" on
page
2-25
. For information on how to configure this feature, see
"BT Secu-
rity Mode"
starting on page 259.
Base Station Connection and Routing:
Fully insert the Power Cable and Interface
(I/F) Cable connectors into their respective ports in the underside of the Base
Station (see Figure 7). Then connect to an AC Adapter, and plug the AC
power cord into the (wall) outlet.
Gryphon Wireless can also be Powered by the Terminal. When powered by the
Terminal, the battery charger is automatically set as Slow charge.
For some specific interfaces or hosts or lengths of cable, the use of an exter-
nal power supply may be recommended for full rech
arging capability (see
"Technical Specifications"
on page 309 for more details).
