Configuring the Base Station
Product Reference Guide
23

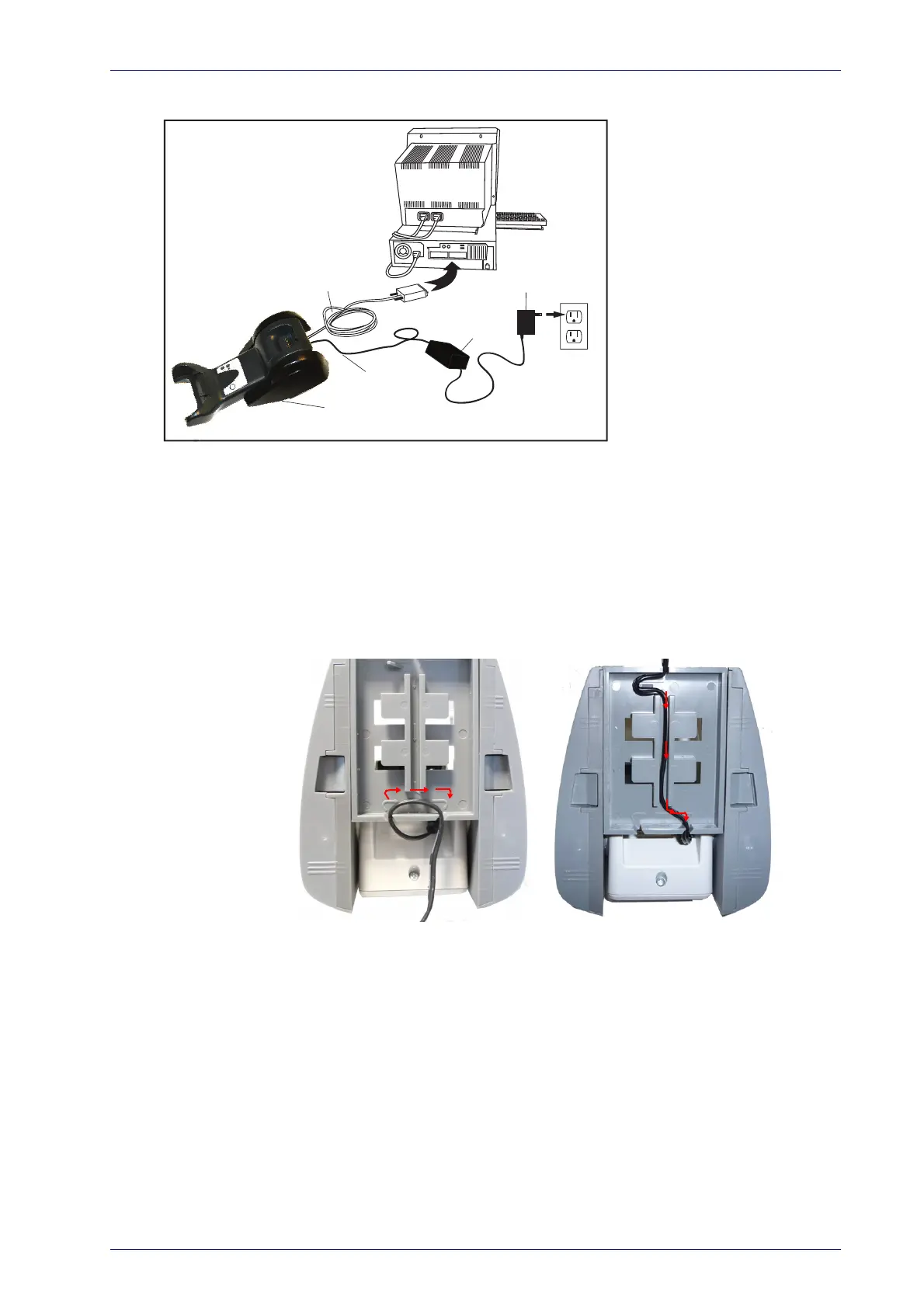

Figure 7. Connecting the Base Station
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bottom of the base
in order to maximize the mechanical retention of the cable itself. The rout-
ing of the power cord can be changed
to accommodate the base station
positioning: horizontal, stand or wall mounting. The cables can be looped
around to the front of the Base Station, or fed directly out the back of the
Base Station, as shown in Figure 8 on page 23.
Figure 8. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base when placing
the cables, detailed in Figure 9.
