Setup
24
Gryphon™ I GD44XX/GBT4400/GM440X

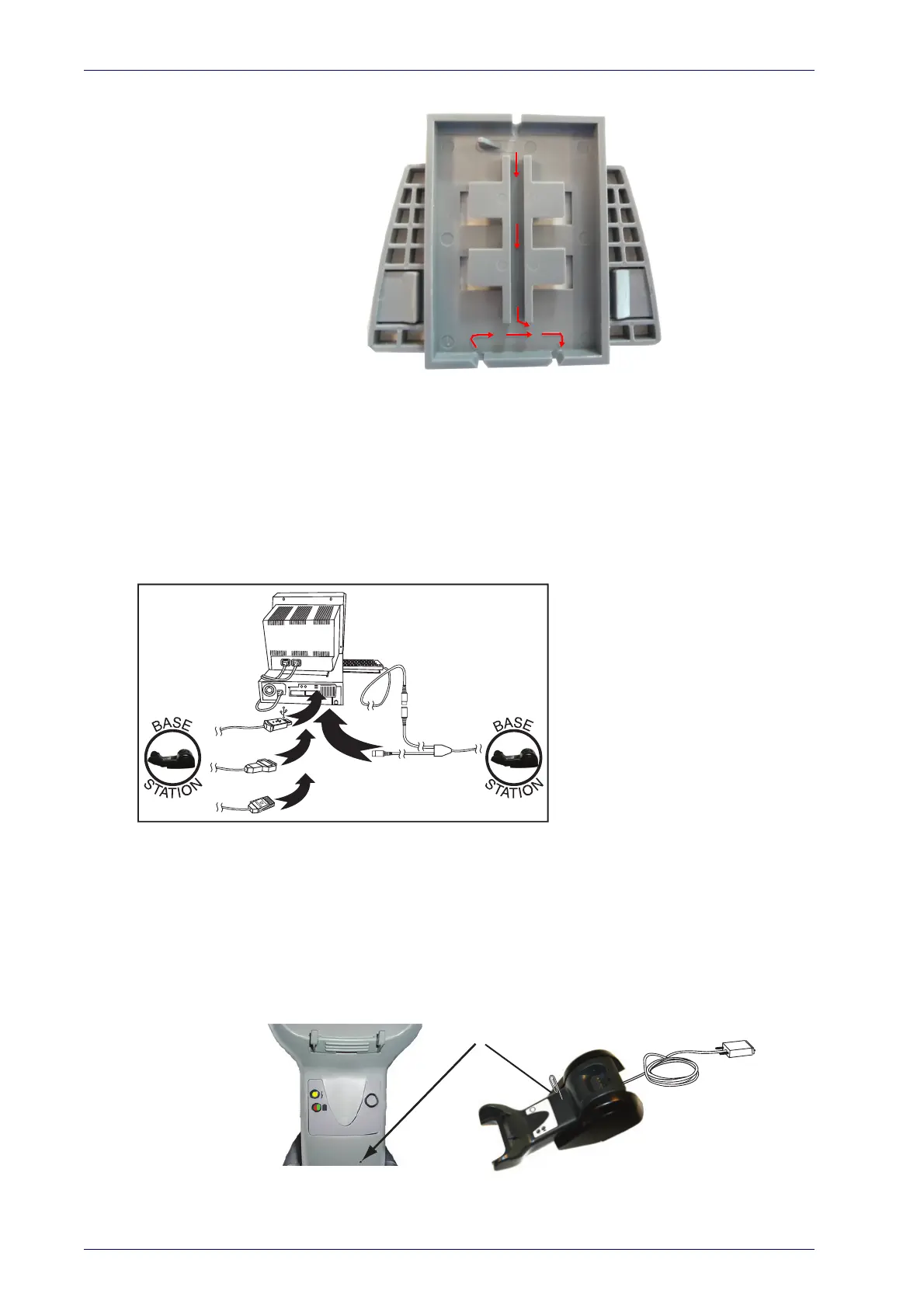

Figure 9. Arrows showing routing
Host Connection:
Verify before connection that the reader’s cable type is com-
patible with your host equipment.
Most connections plug directly into the host device as shown in Figure 10.
Keyboard Wedge interface cables have a ‘Y’ connection where its female end
m
ates with the male end of the cable from the keyboard and the remaining
end at the keyboard port on the terminal/PC.
Figure 10. Connecting to the Host
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...
Power Connection :
Plug the AC Adapter in to an approved AC wall socket with
the cable facing downwards (as shown in Figure 7) to prevent undue strain
on the socket.
Disconnecting the Cable:
To detach the cable, insert a paper clip or similar
object into the hole on the base, as shown in Figure 11.
Figure 11. Disconnecting the Cable
Insert
Paper Clip
