Changing the Base Station Position
The base station is configured by installing one of two sets of mechanical
parts that come with the cordless kit. The default mounts (shown below)
provide three options: vertical (wall) mounting, standing (45°), or horizontal
mounting with a higher mechanical retention of the scanner. Use the other
mounts only for horizontal mounting, with lower retention of the scanner.
The different parts may be interchanged to customize retention preferences.
A tool such as a rigid pen or a flat screwdriver can be used to change the
mounts. Do not allow it to touch the contacts.

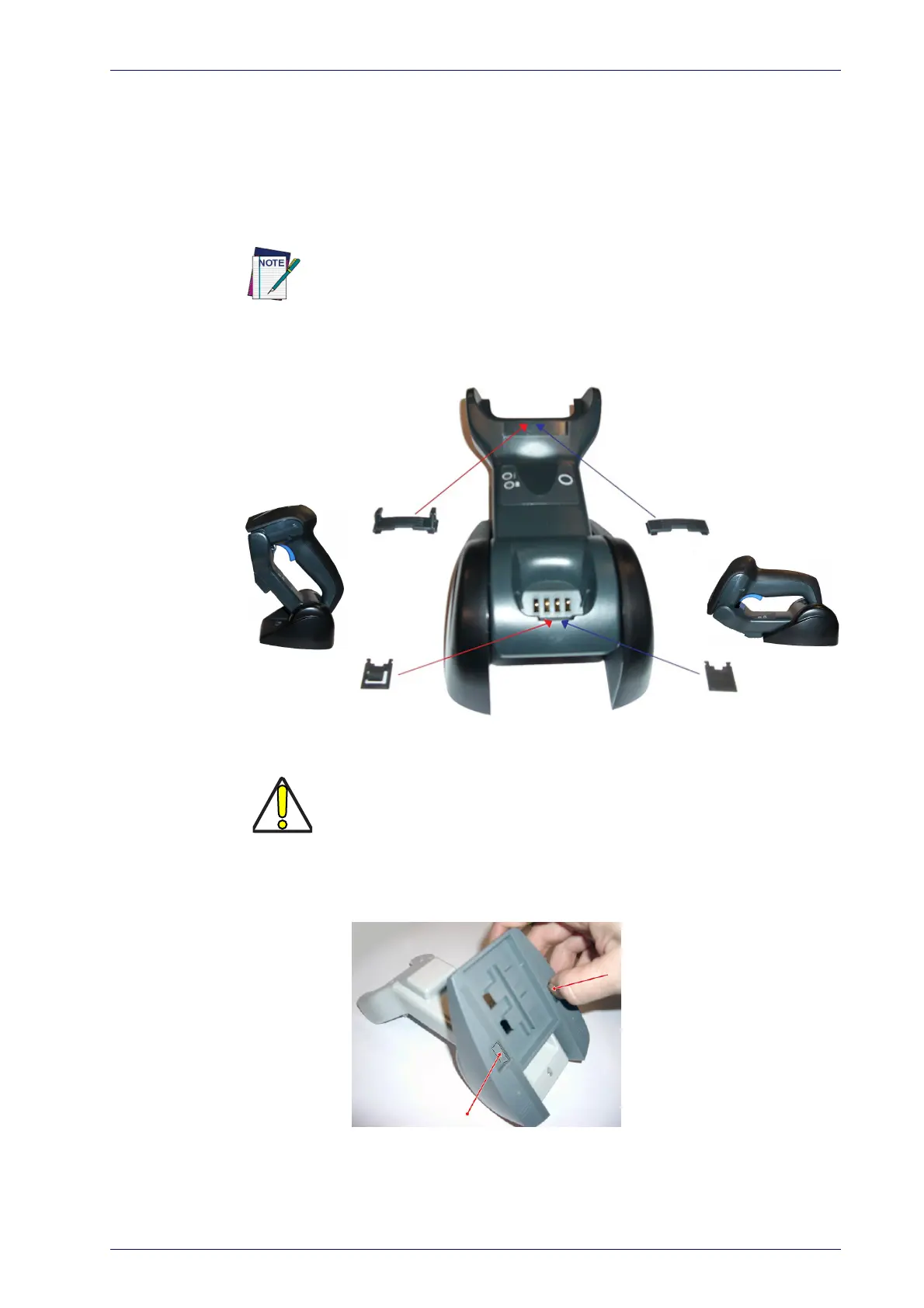

1. Insert the appropriate parts for the desired base station position, as
shown below.
Standing,
Horizontal
or Vertical
Horizontal
ONLY
CAUTION
To ensure best contact and performance, do not intermix the parts of the
two different mount sets.
2. Using your thumbs, push open the plastic tabs on the bottom of the
base to free the wing holders.
