Datalogic PowerScan RF Programming Guide

206 PowerScan
®
RF Scanner

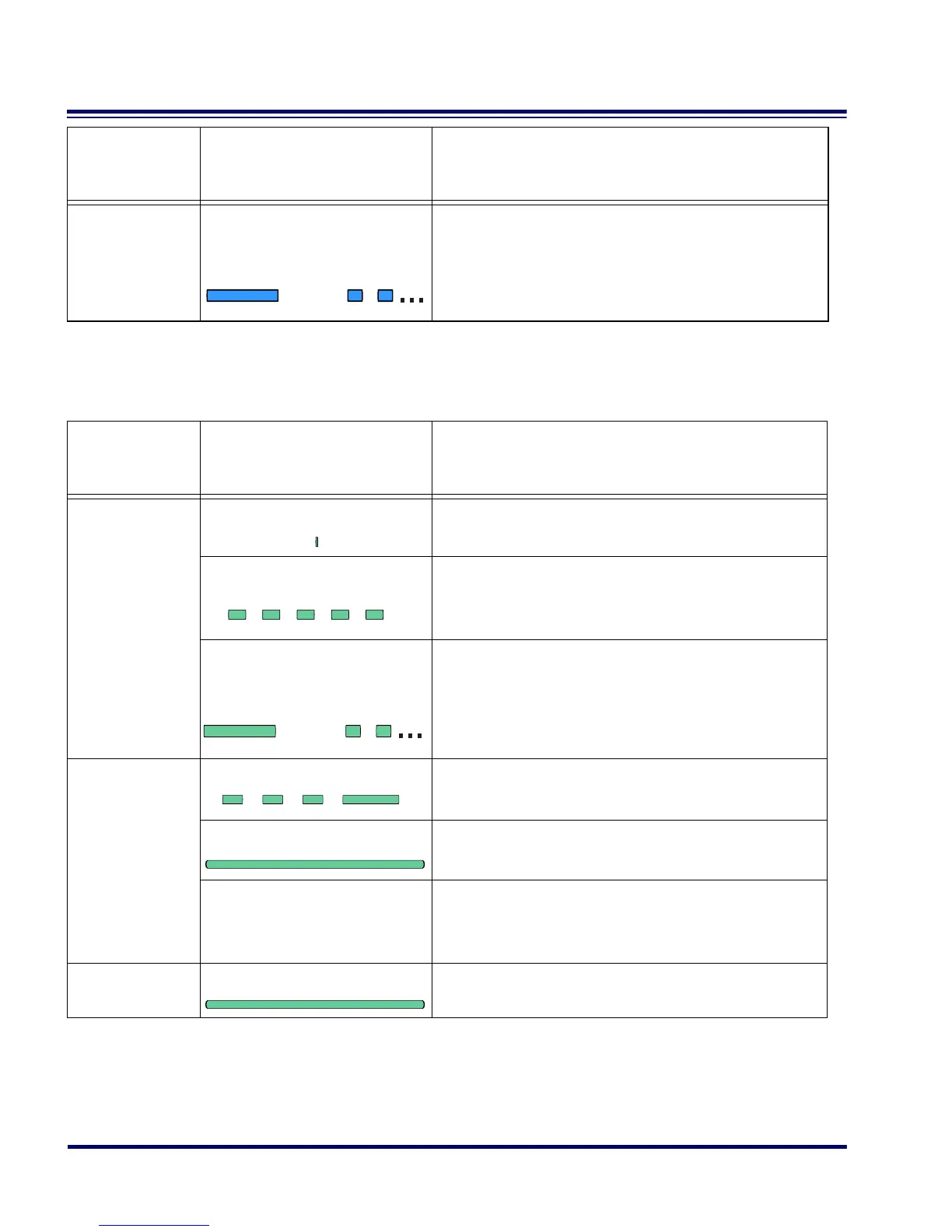

Table 12. Base Station LED Functions
Field Replace-
able Unit (FRU)
Indications
Varies. Consists of a long tone
followed by multiple short
tones.
Enables service technicians to identify Field Replace-
able Unit (FRU) errors.
SPEAKER
INDICATION
DURATION COMMENT
LED
INDICATION
DURATION COMMENT
TX/RX (Trans-
mit/Receive)
Lit for variable time
a
Indicates communications activity to or from the Base
Station.
Continuous rapid
flashing at power-up
Indicates a broken radio.
Varies. Consists of a long flash
followed by multiple short
flashes.
Enables service technicians to identify Field Replace-
able Unit (FRU) errors.
Charge
(Battery)
Continuous flashing
When a scanner is nested in the station, this indicates
its battery is being quick charged.
Lit Constantly
When a scanner is nested in the station, this indicates
its battery is at or near full charge.
Not Lit
A scanner is not present or incorrectly inserted into the
station. It can also mean the battery is below 0°C (too
cold for charge)
Power
Lit Constantly
Indicates that power is on.
a. The LED remains on while the unit is actively processing code which requires a TX/RX to occur. The
duration of the LED is dependent upon the length of the message.
