Datamax E-Class Mark II Programmer's Manual

Generating Label Formats
Class Series 2 Programmer’s Manual 159
1
Rotation (must be 1)
cccc
Column of the center point
X
Graphic field
C
Circle ID (Fixed Value)
1
Multiplier (must be 1)
ppp
Fixed Value (001)
1
Multiplier (must be 1)
bbbb
Fixed Value (0001)
fff
Fill pattern number
rrrr
Radius of the circle
rrrr
Row of the center point
<CR>
Termination character

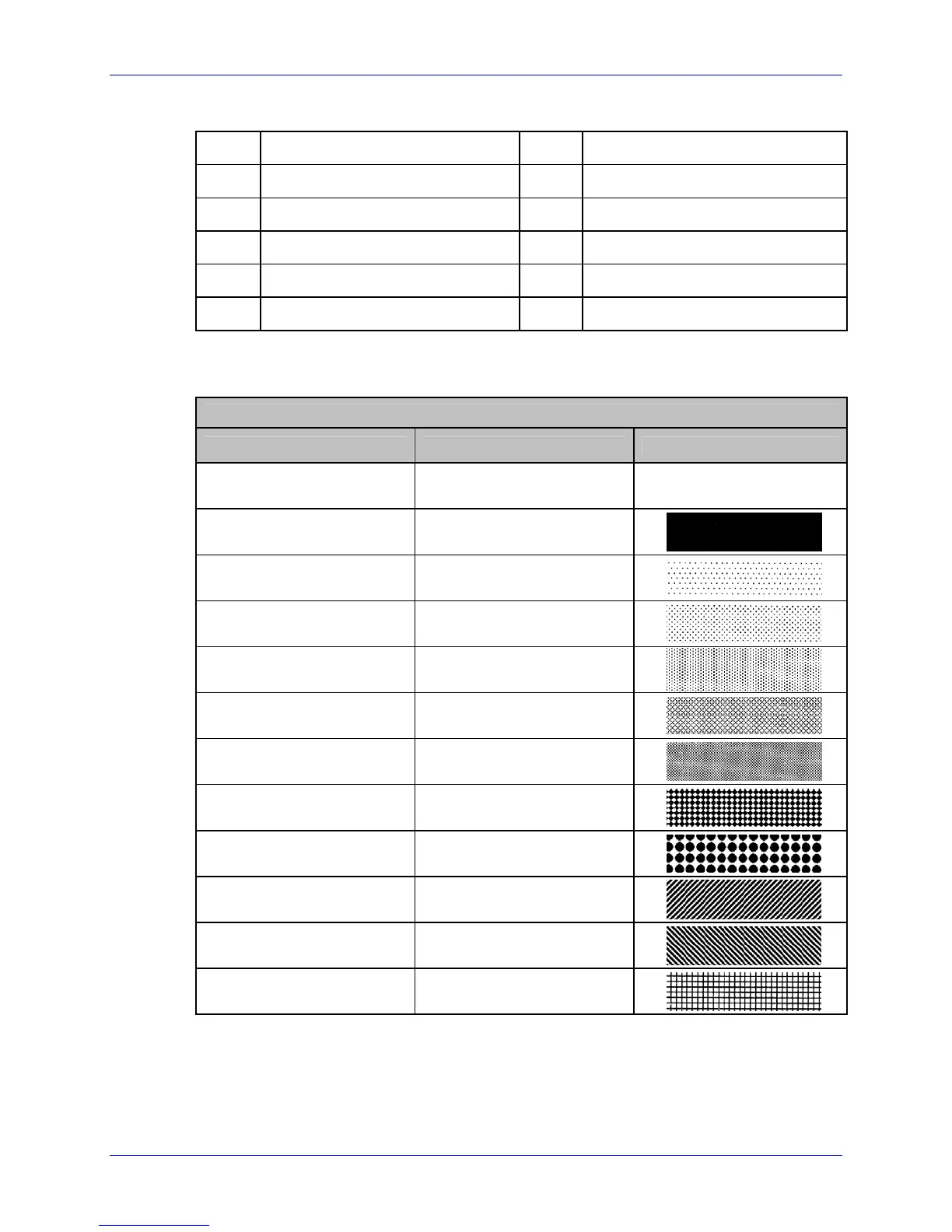

Table 8-14: Circle Record Structure
Fill Patterns
Pattern Number Description Example
0
No Pattern
1
Solid Black
2
6% Black
3
12% Black
4
25% Black
5
38% Black
6
50% Black
7
Diamonds
8
Circles
9
Right Diagonal Lines
10
Left Diagonal Lines
11
Grid
Table 8-15: Fill Patterns

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
