Datamax E-Class Mark II Programmer's Manual

Generating Label Formats
160 Class Series 2 Programmer’s Manual
Examples (with spaces added for readability):

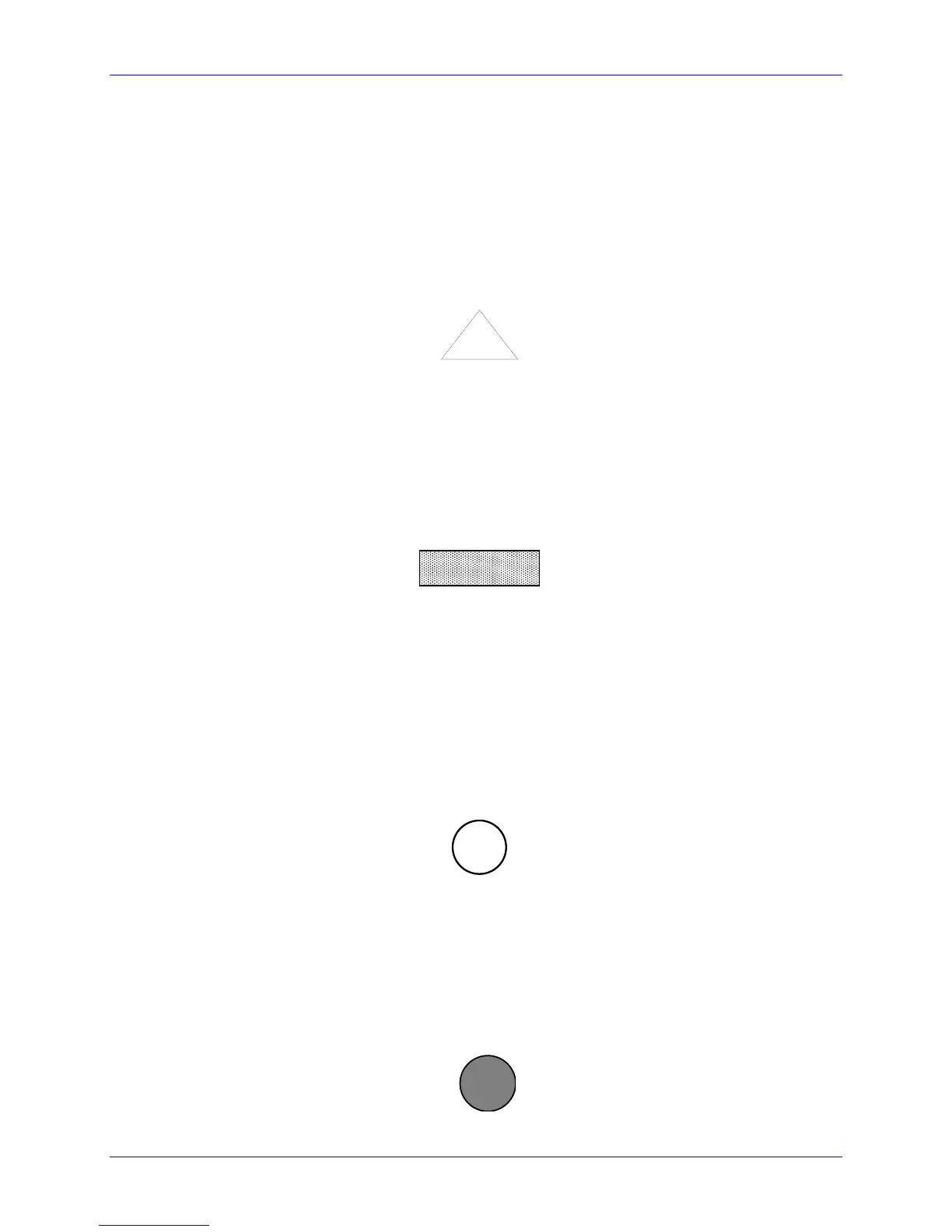

1: Triangle
The record:
1 X 11 000 0010 0010 P 001 0001 0040 0025 0010 0040<CR>
Produces a triangle with no fill pattern:
(row 0040, column 0025)
(row 0010, column 0010) (row 0010, column 0040)
2: Rectangle with Fill
The record:
1 X 11 004 0010 0010 P 001 0001 0050 0010 0050 0200 0010 0200<CR>
Produces a rectangle filled with pattern 4 (25% Black):
(row 0010, column 0010) (row 0050, column 0200)
3: Circle
The record:
1 X 11 000 0100 0100 C 001 0001 0025<CR>
Produces a circle centered at row 0100, column 0100 with a radius of 0025 and
no fill pattern:
4: Circle with Fill
The record:
1 X 11 009 0100 0100 C 001 0001 0025<CR>
Produces a circle centered at row 0100, column 0100 with a radius of 0025 and
filled with pattern 9 (right diagonal lines):

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
