Control Codes: By sending these control codes, control characters can be encoded into
a Code 128 Subset A bar code (e.g., ABC{DE will be encoded as ABC<ESC>DE):
Control Code in the Bar Code Data Stream Encoded Control Character Result
` NUL
a through z 1 - 26
{ ESC
| FS
} GS
~ RS
ASCII 127 US

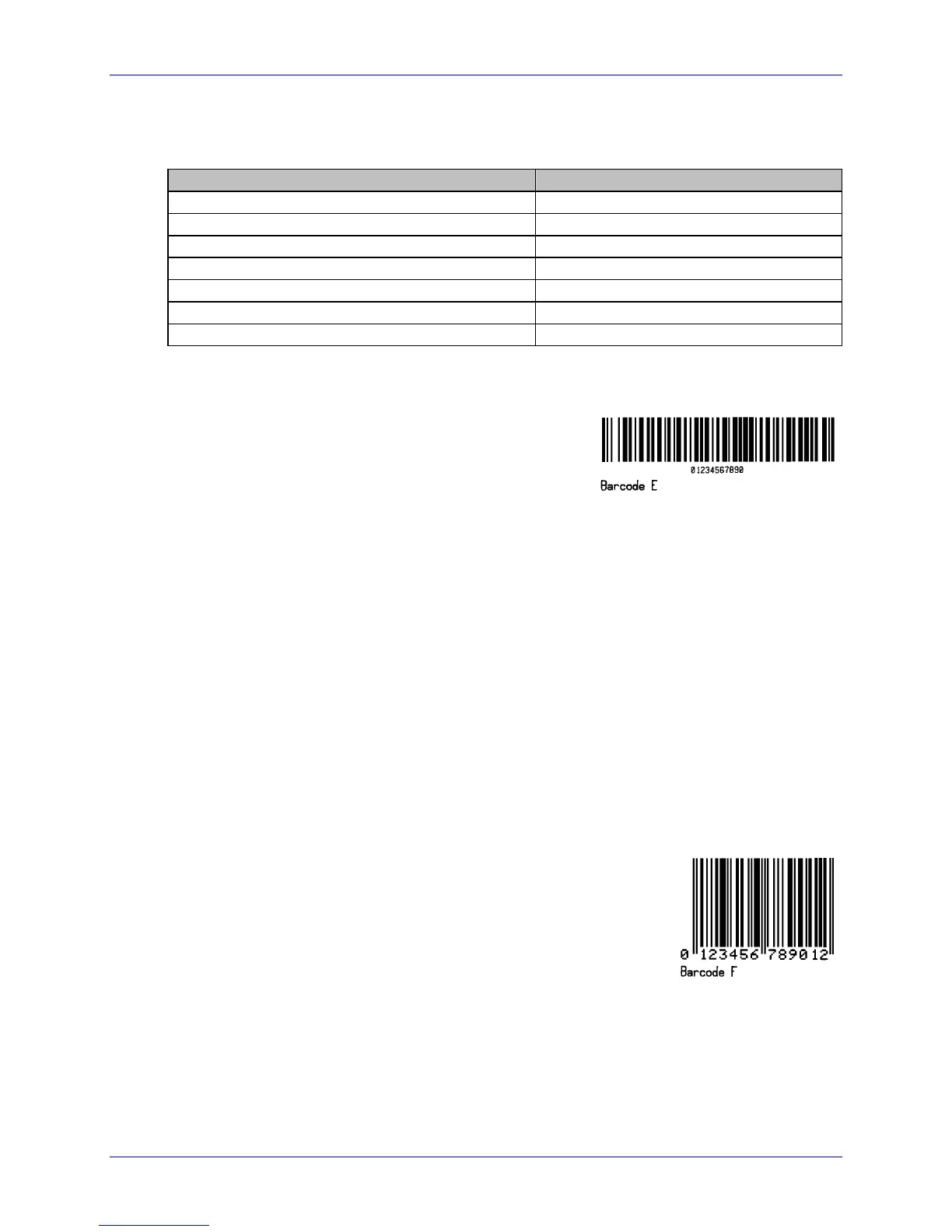

The following example prints a Code 128 bar code:
<STX>L
D11<CR>
1E000000015010001234567890<CR>
121100000000100Barcode E<CR>
E
F: EAN-13
Valid Characters: 0-9
Length: 13 digits. If the user provides 12 digits, the printer will compute the checksum.
If the user provides the checksum, the printer will check that it matches the expected
checksum. If it does not match, the printer will print all zeros and the expected
checksum. See Appendix O.
Valid bar widths: The fourth character of record is the width of the narrow bar in dots.
All other bars are a ratio of the narrow bar (2 times, 3 times, and 4 times the narrow
bar width).
The following example prints an EAN-13 bar code:
<STX>L
D11<CR>
1F0000000150100012345678901<CR>
121100000000100Barcode F<CR>
E

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
