Appendix J – General Purpose Input Output Port Applications
Class Series 2 Programmer’s Manual 262
GPI/O B (J2)
Six unassigned inputs are designed to interface to open-collector outputs. These inputs
require no external pull-ups and blocking diodes allow the use of totem pole outputs from
+4.5 to + 26 VDC. Optical isolators are available to provide isolation. Two print control
interface circuit examples are given below.
•

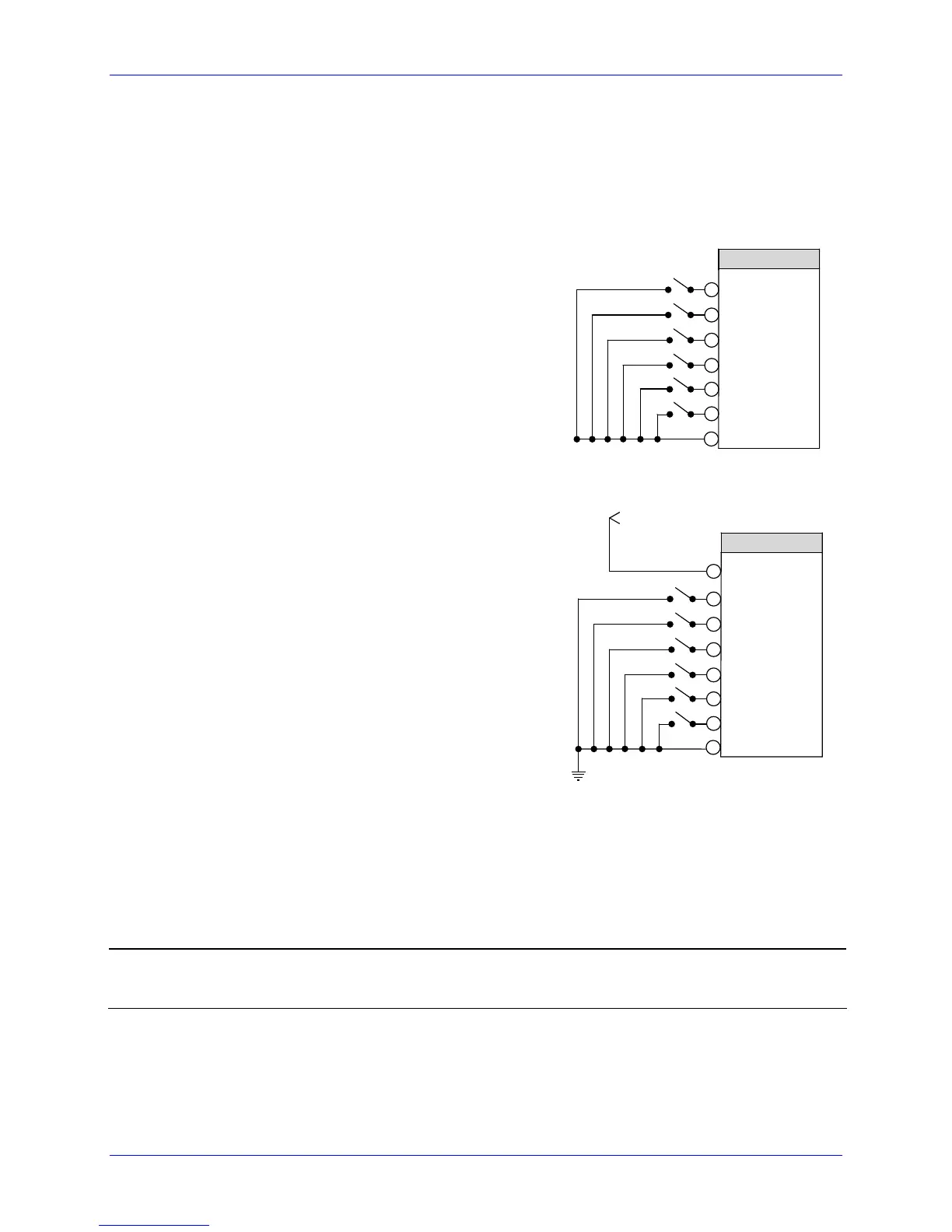

For direct inputs –
Use the printer’s +5VDC and Ground to supply
the devices interfacing to the GPI/O B inputs
(as shown, right).
GPI/O B - J2
8
3
12
7
Input 1
Ground
13
Input 2
Input 3
Input 4
6
Input 5
Input 6
2
•
For electrically-isolated inputs –
To provide galvanic isolation for the GPI/O B
inputs, remove jumper JMP 11 then supply an
external +5VDC source voltage to Pin 1, and
remove jumper JMP 10 then supply an
external Ground to Pin 6 (as shown, right).
1
Vcc
+5 VDC External Source
GPI/O B - J2
8
3
12
7
Input 1
13
Input 2
Input 3
Input 4
Input 5
Input 6
2
Ground
6
Six unassigned outputs are programmable and slew-limited. Optional 10K ohm pull-up
resistors, one for each of the output lines, can be used at either +5 or +24 VDC via jumpers
JMP 2 – 7.
To avoid damage if external pull-up resistors are used (that is, when Jumpers JMP 2 - 7 are
not installed), ensure that the external voltage does not exceed +30VDC.
The table below details the GPI/O B pin assignments, settings and functions:
