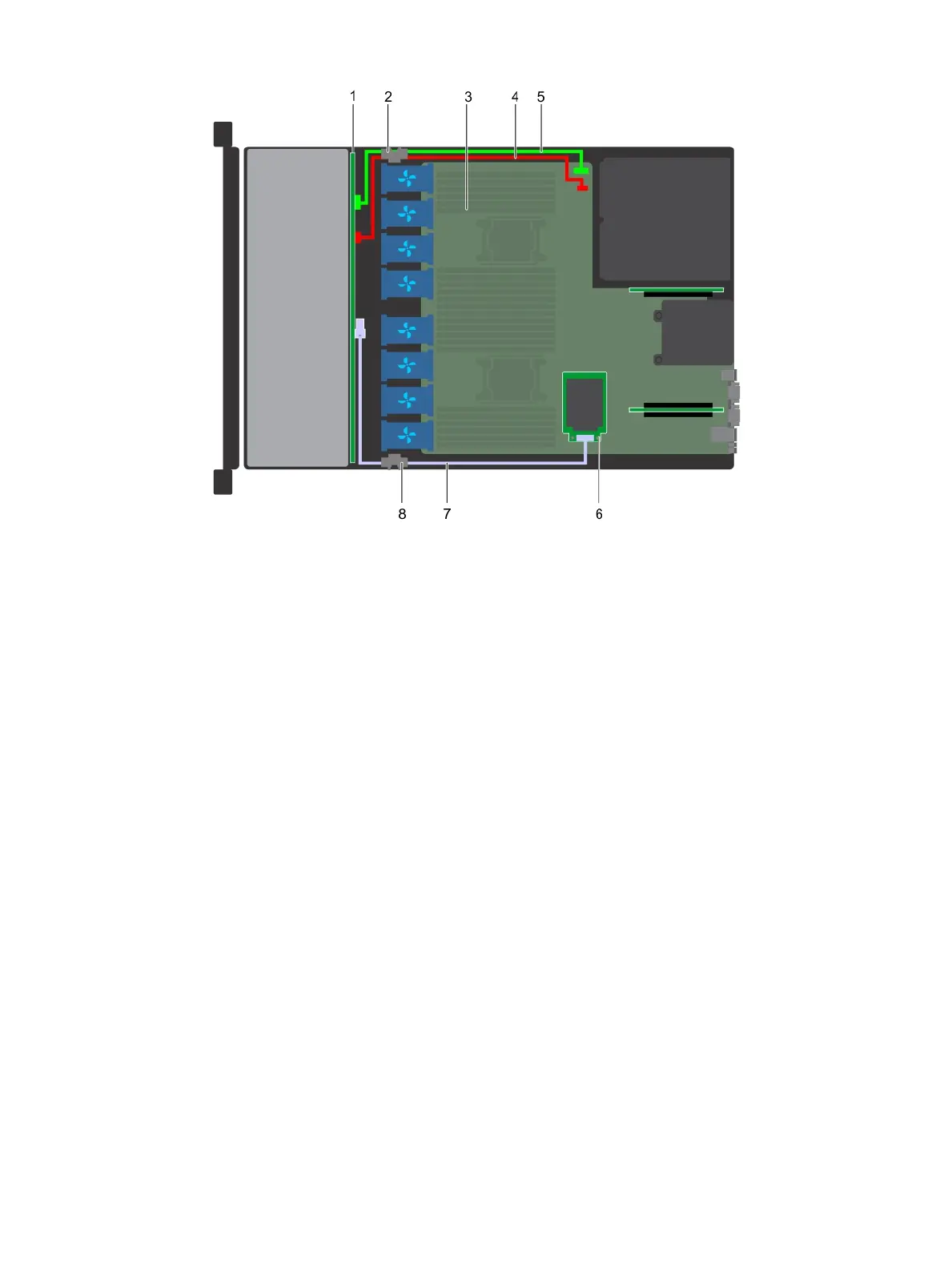

Figure 90. Cable routing - 4 x 3.5 drive backplane with mini PERC
1
drive backplane 2 cable routing clip
3 system board 4 backplane power cable(BP: J_BP_SIG to MB: J_BP_SIG1)
5 backplane signal cable(BP: J_BP_SIG to MB: J_BP_SIG1) 6 mini PERC card
7 SAS cable(BP: J_SAS_A to MB: J_STORAGE1) 8 cable routing clip
Installing and removing system components 139
