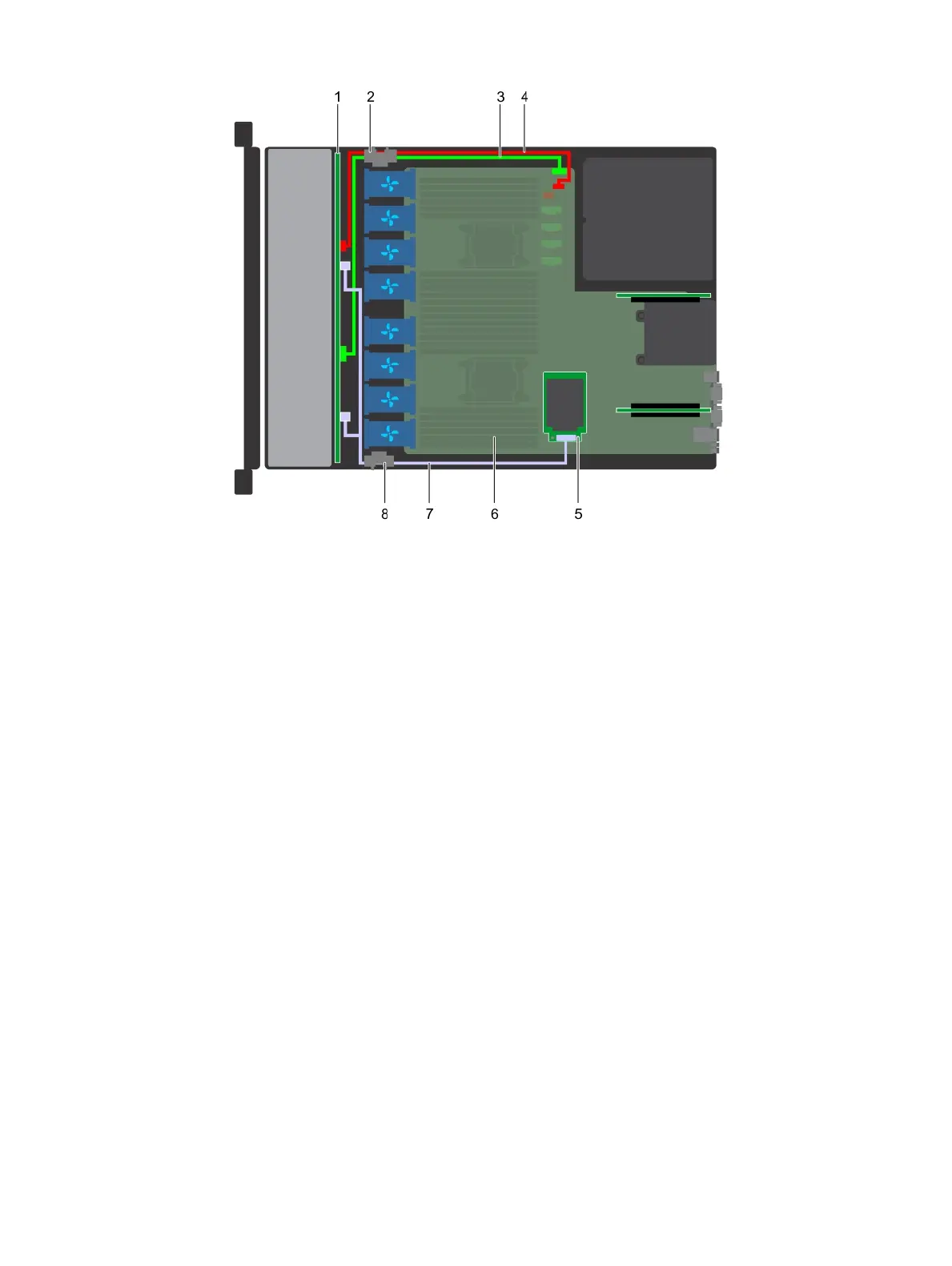

Figure 91. Cable routing - 8 x 2.5 drive backplane with mini PERC
1
drive backplane 2 cable routing clip
3 backplane signal cable(BP: J_BP_SIG to MB: J_BP_SIG1) 4 backplane power cable(BP: J_BP_PWR_A1 to MB: J_BP1)
5 mini PERC card 6 system board
7 SAS cable(BP: J_SAS_A to MP: J_STORAGE1) 8 cable routing clip
140 Installing and removing system components
