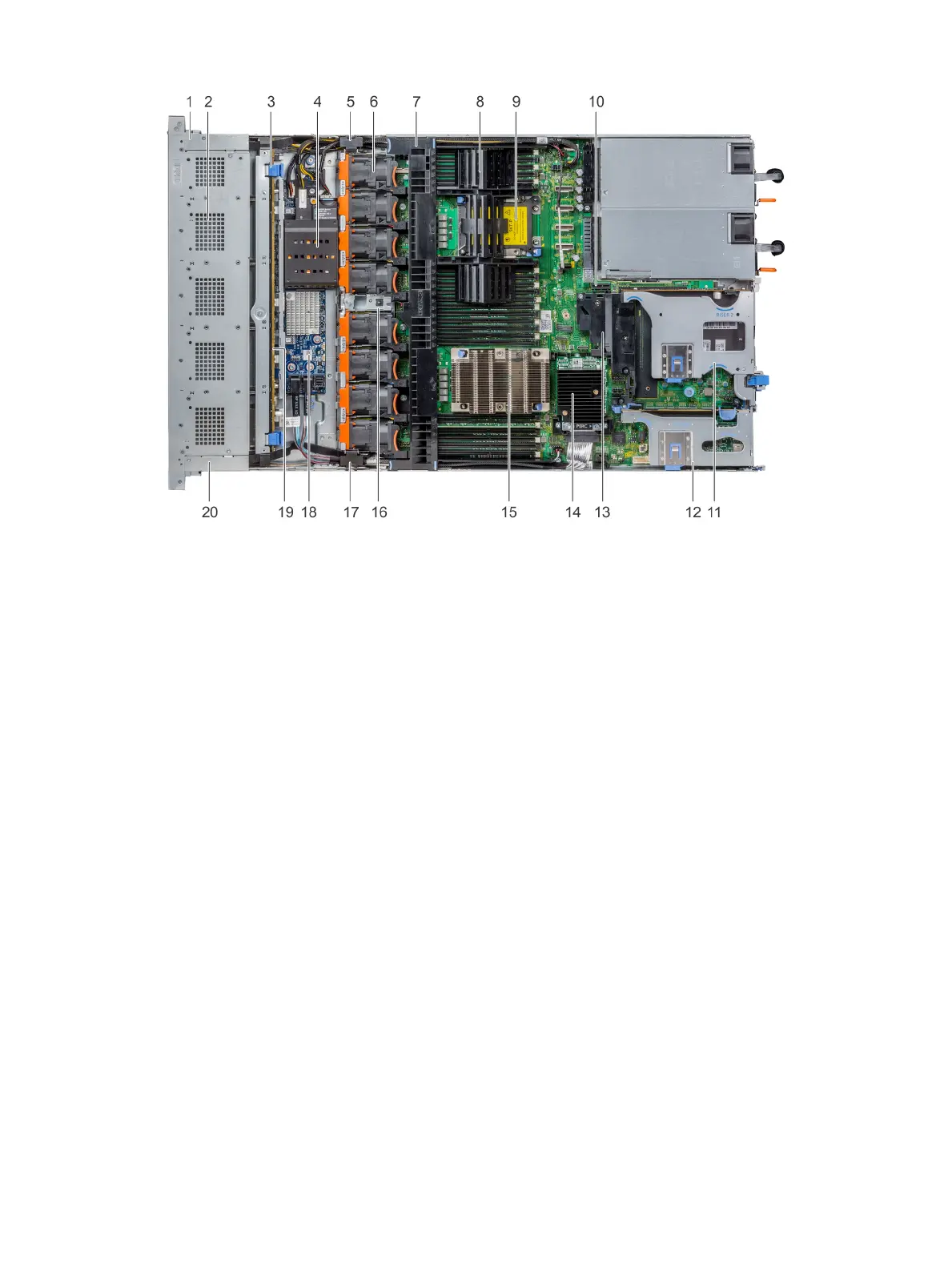

Figure 27. Inside the system - 2 PCIe expansion risers
1
right control panel cable cover 2 hard drive cage
3 backplane release latch 4 NVDIMM-N battery
5 cabling latch 6 cooling fan (8)
7 air shroud 8 processor and DIMM blank
9 processor 2 slot 10 IDSDM/vFlash module slot
11 expansion riser 2 B 12 expansion riser 1 B
13 PCIe shroud 14 integrated storage controller card
15 processor 1 16 intrusion switch
17 cabling latch 18 SAS expander board
19 hard drive backplane 20 left control panel cable cover
