Dell EMC PowerEdge XR11

Table 17. NVMe cable from PERC to 4 x 2.5-inch drive backplane (continued)
From To
CTRL_SRC_SA1_PA1 (NVMe signal connector on PERC
adapter)
BP_DST_PA1 (NVMe signal connector on backplane)
BP_DST_PB1 (NVMe signal connector on backplane)

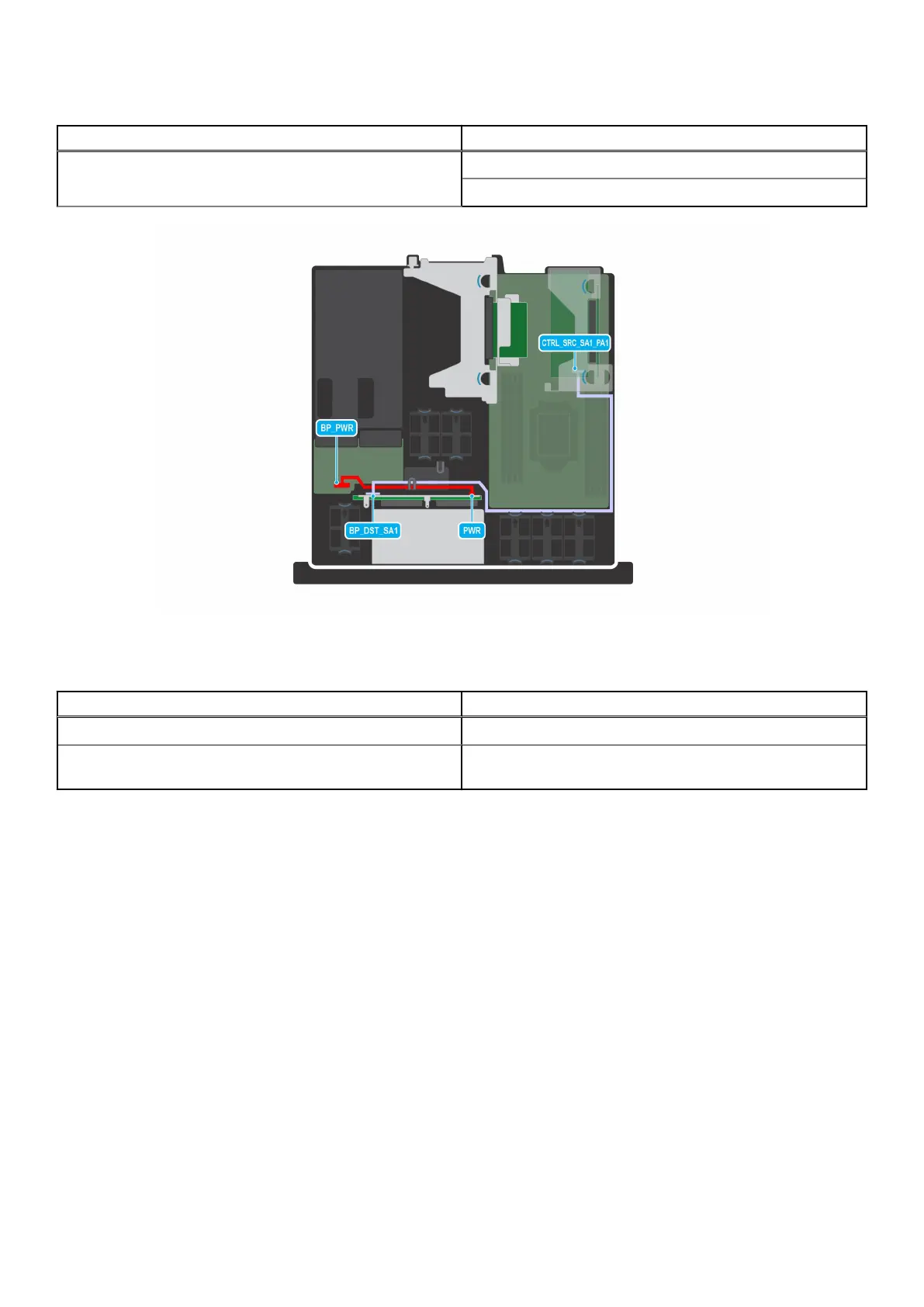

Figure 42. Cable routing- SAS cable from PERC to 4 x 2.5-inch drive backplane
Table 18. SAS cable from PERC to 4 x 2.5-inch drive backplane
From To
BP_PWR (Power connector on PIB) PWR (Power connector on backplane)
CTRL_SRC_SA1_PA1 (SAS signal connector on PERC
adapter)
BP_DST_SA1 (SAS signal connector on backplane)
52 Installing and removing system components
