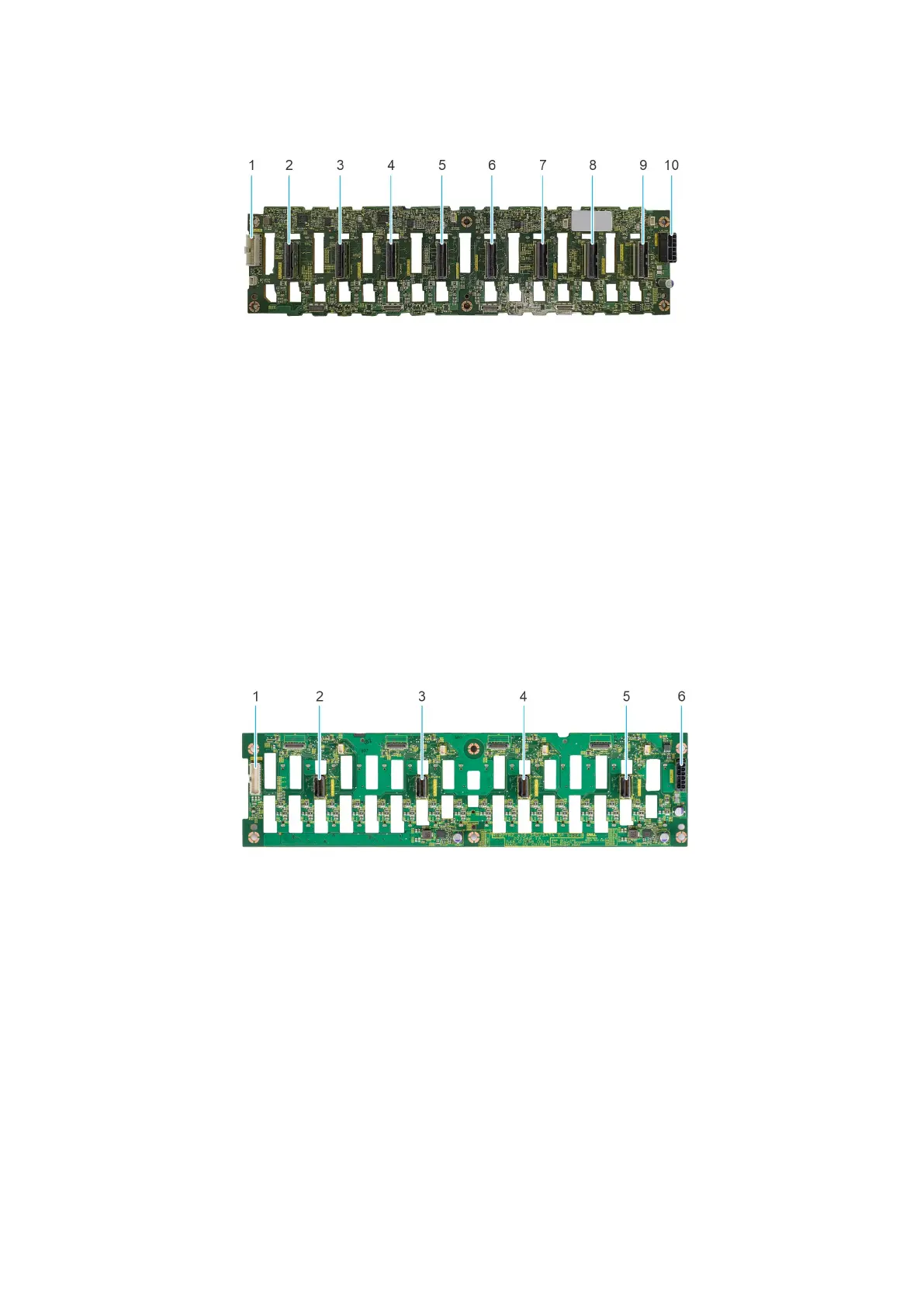

Figure 87. 16 x 2.5-inch NVMe hard drive backplane
1. Backplane signal cable connector
2. Backplane signal cable to sled 4
3. Backplane signal cable to sled 4
4. Backplane signal cable to sled 3
5. Backplane signal cable to sled 3
6. Backplane signal cable to sled 2
7. Backplane signal cable to sled 2
8. Backplane signal cable to sled 1
9. Backplane signal cable to sled 1
10. Backplane power connector
Figure 88. 16 x 2.5-inch SAS/SATA hard drive backplane
1. Backplane signal cable connector
2. Backplane signal cable to sled 4
3. Backplane signal cable to sled 3
4. Backplane signal cable to sled 2
5. Backplane signal cable to sled 1
6. Backplane power connector
