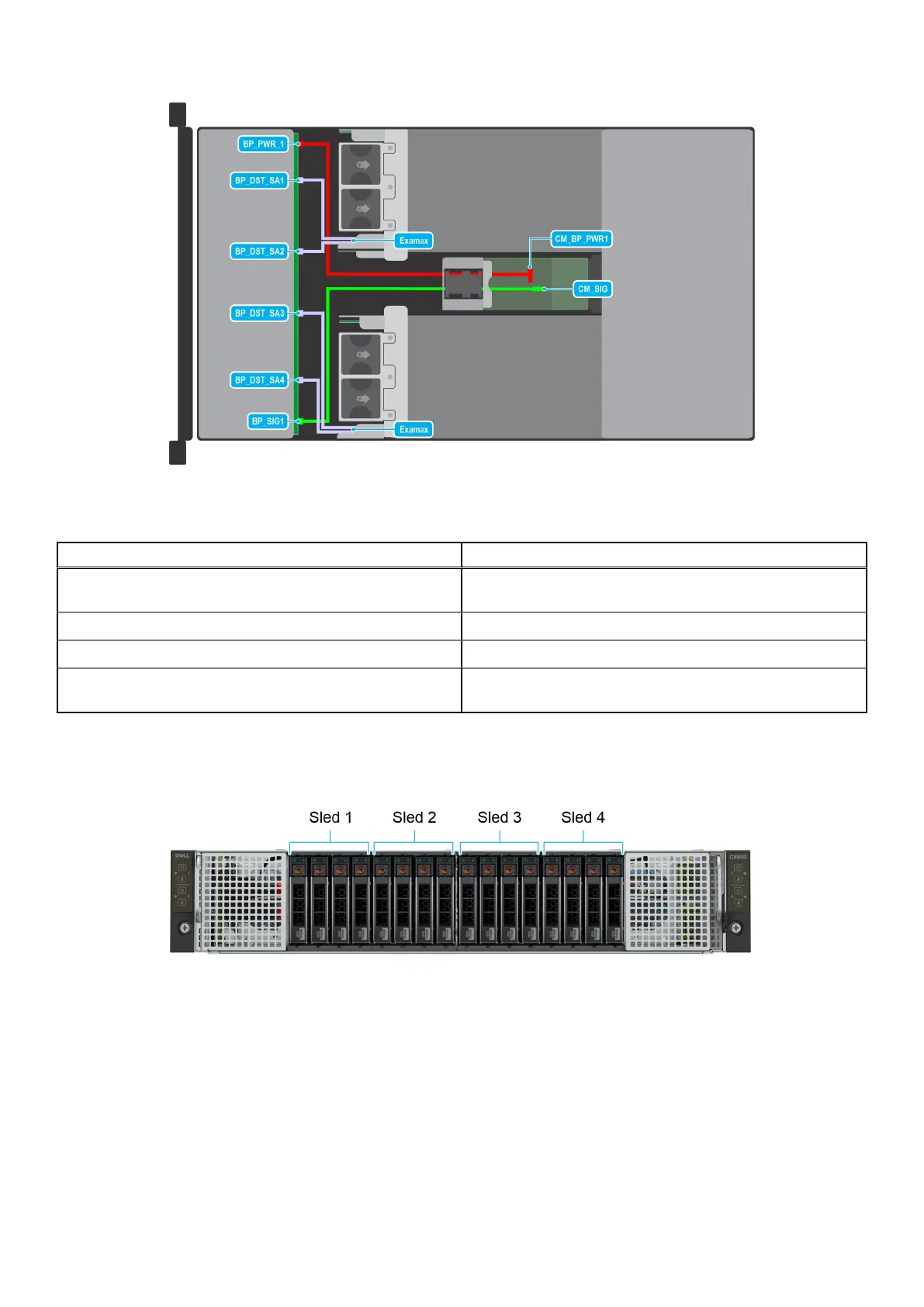

Figure 92. Cabling the 16 x 2.5-inch backplane with SAS/SATA drives
Table 14. Cabling the 16 x 2.5-inch backplane with SAS/SATA drives
From To
Examax (Examax connector) BP_DST_SA1, BP_DST_SA2 (backplane signal connector 1
and 2)
CM_BP_PWR1 (chassis manager board power connector) BP_PWR_1(backplane power connector)
CM_SIG (chassis manager board signal connector) BP_SIG1 (backplane signal connector)
Examax (Examax connector) BP_DST_SA3, BP_DST_SA4 (backplane signal connector 3
and 4)
Sled to hard drive mapping
Figure 93. Sled to drive mapping for 16 x 2.5-inch drive configuration
1. Drives 0–3 mapped to sled 1
2. Drives 4–7 mapped to sled 2
3. Drives 8–11 mapped to sled 3
4. Drives 12–15 mapped to sled 4
