Table 12. Cabling the 8 x E3.s backplane with E3.s drives (continued)
From To
Examax (Examax connector) BP_DST_PA3, BP_DST_A4 (backplane signal connector 3 and
4)

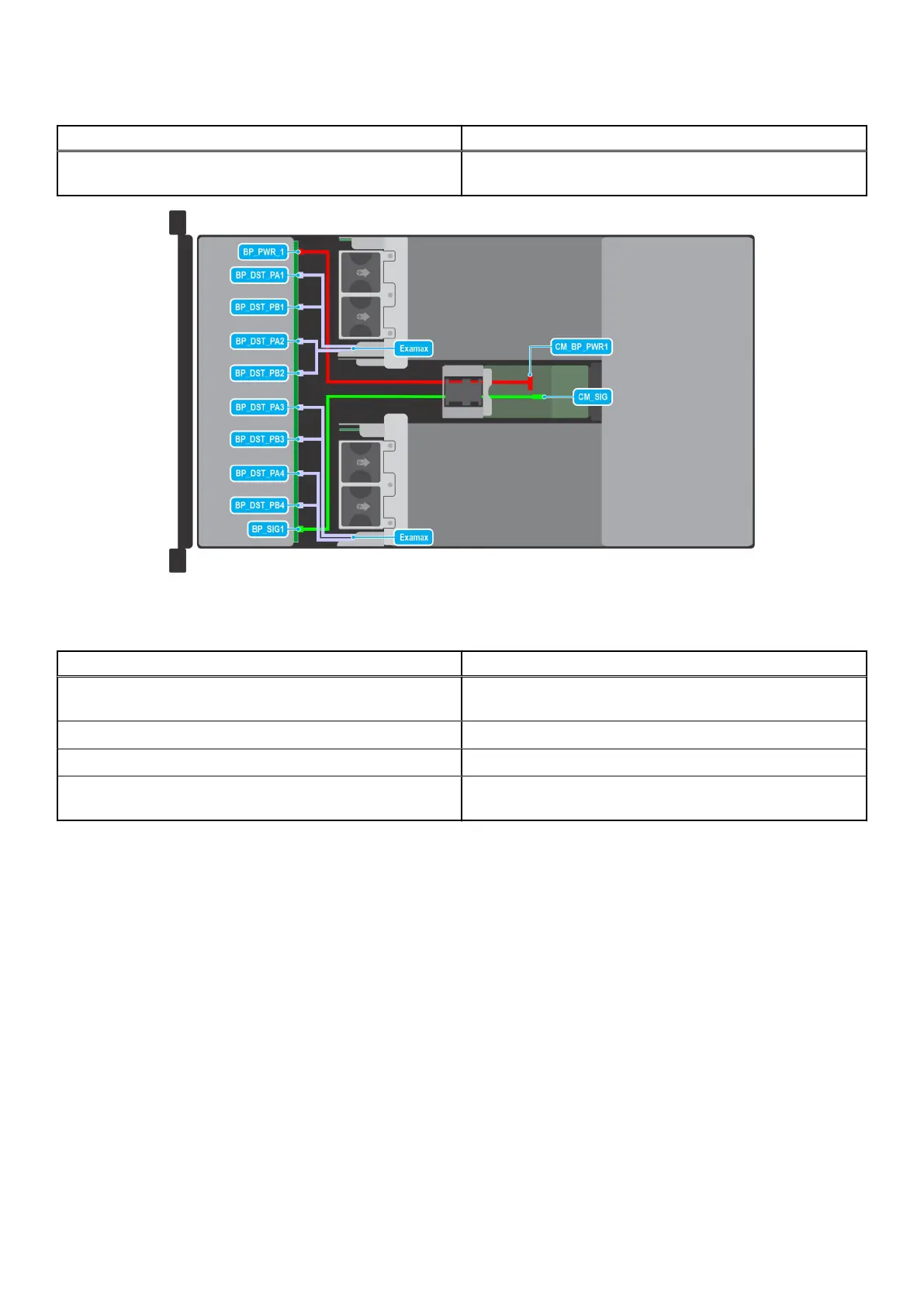

Figure 91. Cabling the 16 x 2.5-inch backplane with NVMe drives
Table 13. Cabling the 16 x 2.5-inch backplane with NVMe drives
From To
Examax (Examax connector) BP_DST_PB1, BP_DST_PB1, BP_DST_PB2, BP_DST_PB2
(backplane signal connector 1 and 2)
CM_BP_PWR1 (chassis manager board power connector) BP_PWR_1 (backplane power connector)
CM_SIG (chassis manager board signal connector) BP_SIG1 (backplane signal connector)
Examax (Examax connector) BP_DST_PB3, BP_DST_PB3, BP_DST_PB4, BP_DST_PB4
(backplane signal connector 3 and 4)
