Dell Pro Max 16 - Page 106

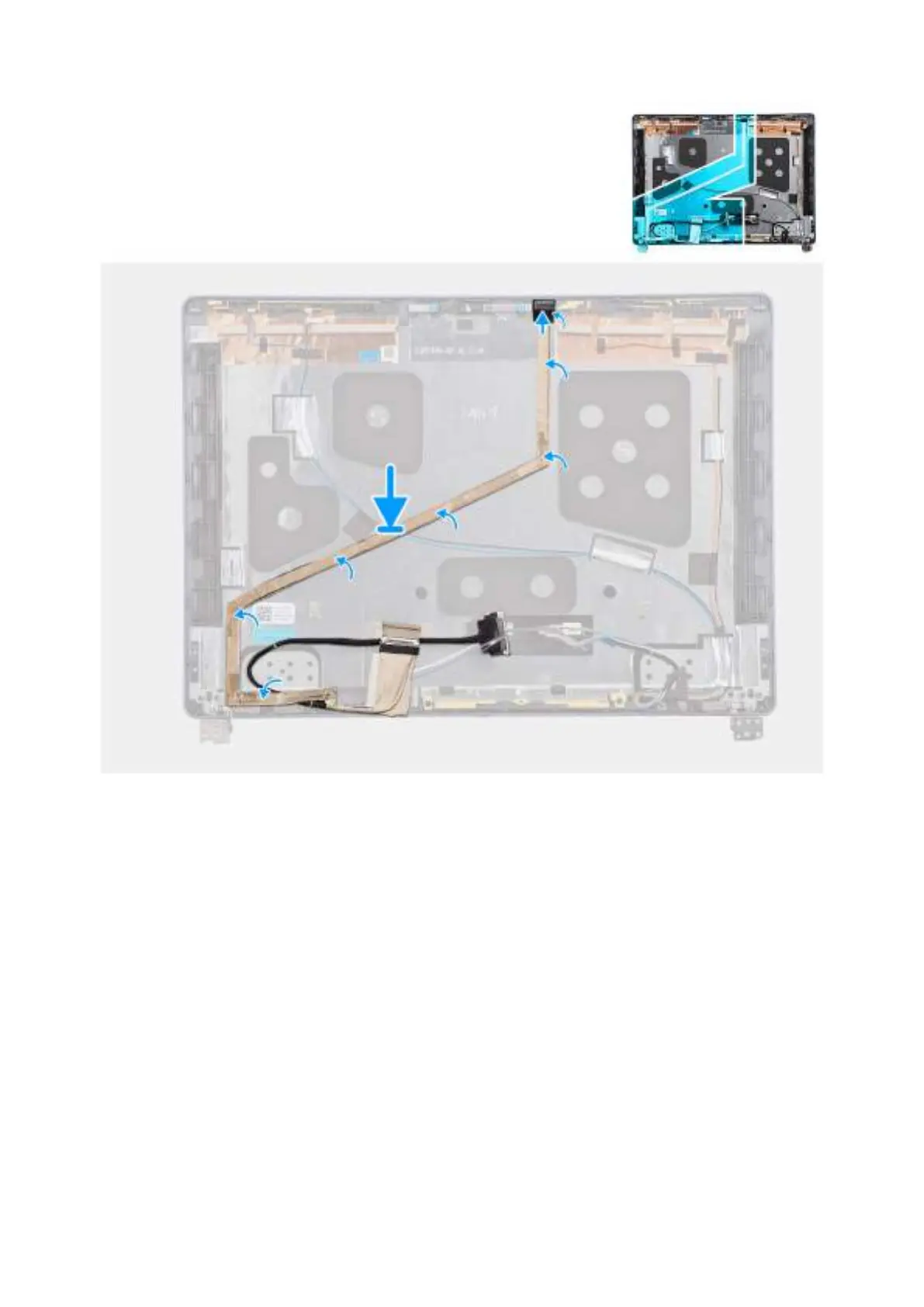

Figure 73. Installing the display cable
Steps
1. Adhere the display cable to the display back-cover and antenna assembly.
2. Connect the display cable to the connector on the camera module.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WWAN module, if available.
5. Install the wireless card.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
106
Removing and installing Field Replaceable Units (FRUs)
