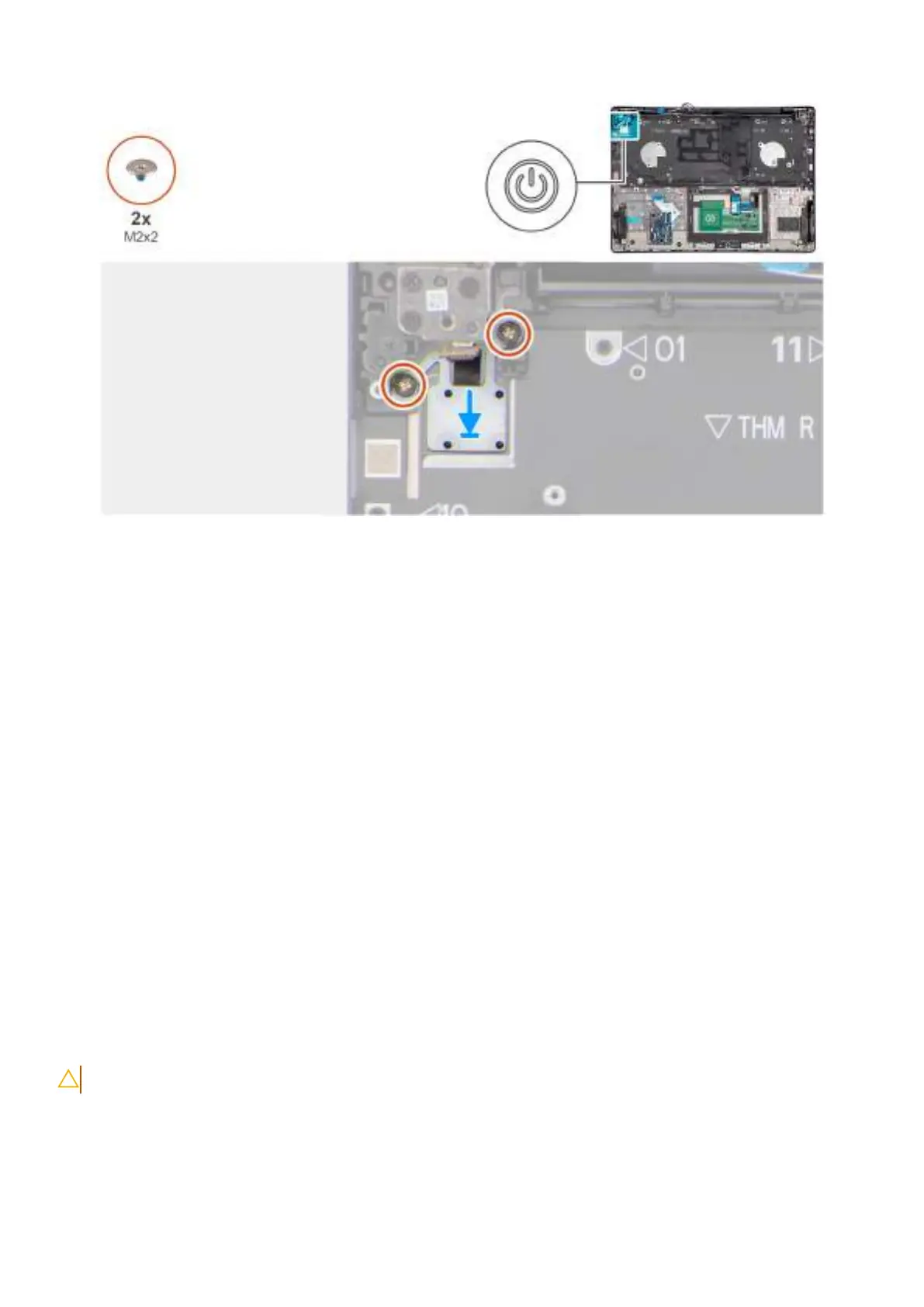

Figure 87. Installing the power button
Steps
1. Place the power button in the slot on the palm-rest assembly.
2. Align the screw holes on the power button with the screw holes on the palm-rest assembly.
3. Replace the two screws (M2x2) to secure the power button to the palm-rest assembly.
Next steps
1. Install the system board.
2. Install the battery frame.
3. Install the heat sink.
4. Install the left/video fan.
5. Install the right/processor fan.
6. Install the WWAN module, if available.
7. Install the wireless card.
8. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever is applicable.
9. Install the memory module.
10. Install the battery.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
Keyboard
Removing the keyboard
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
