2. Disconnect the keyboard-backlight cable from the connector (LIGHTING) on the touchpad board.
NOTE: This step applies only to computers shipped with a backlit keyboard installed.
3. Remove the 20 screws (M2x2.2) that secure the keyboard assembly to the palm-rest assembly.
4. Lift the keyboard assembly off the palm-rest assembly.
5. Remove the nine screws (M2x2.2) that secure the keyboard to the keyboard bracket.
6. Lift the keyboard off the keyboard bracket.
Installing the keyboard
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

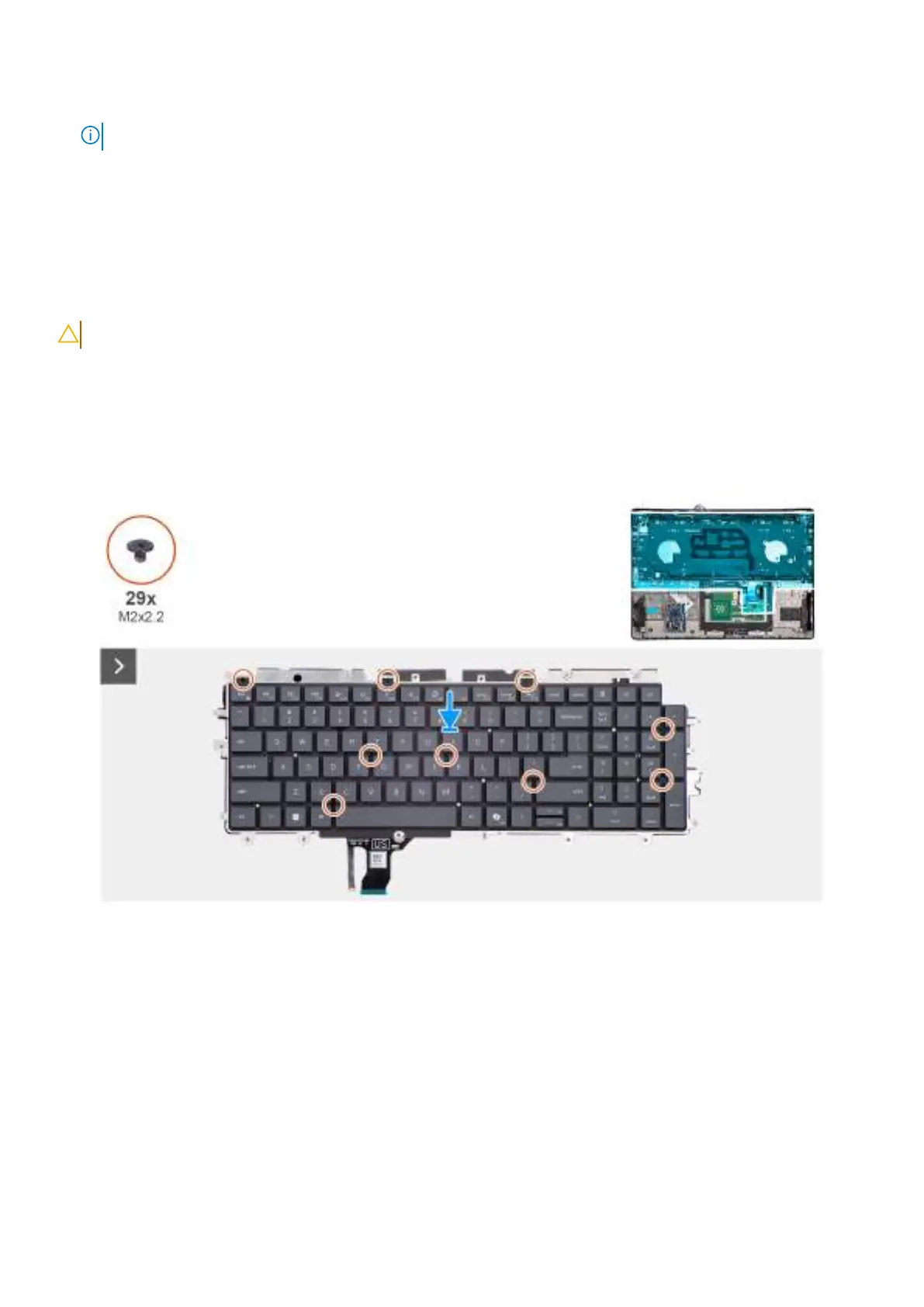

The following images indicate the location of the keyboard and provide a visual representation of the installation procedure.
Figure 90. Installing the keyboard
