Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: If the rubber grommets are pushed out when removing the speakers, push them back in before replacing the
speakers.

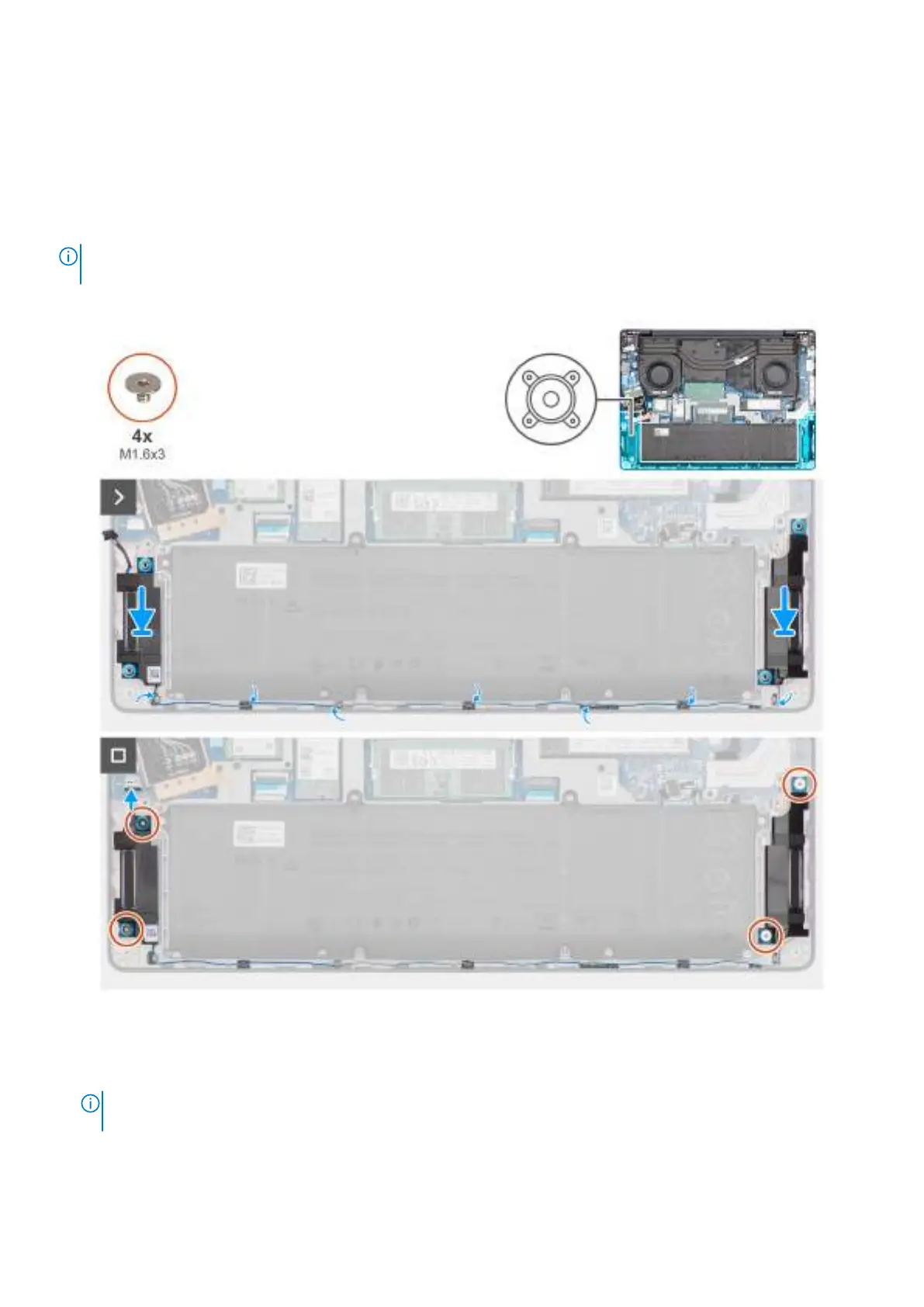

The following images indicate the location of the speakers and provide a visual representation of the installation procedure.
Figure 32. Installing the speakers
Steps
1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest assembly.
NOTE:
Ensure that the rubber grommets on the speakers are threaded through the alignment posts. Ensure that the
four rubber grommets are seated into the slot and installed on the speakers properly.
Removing and installing Customer Replaceable Units (CRUs) 65
