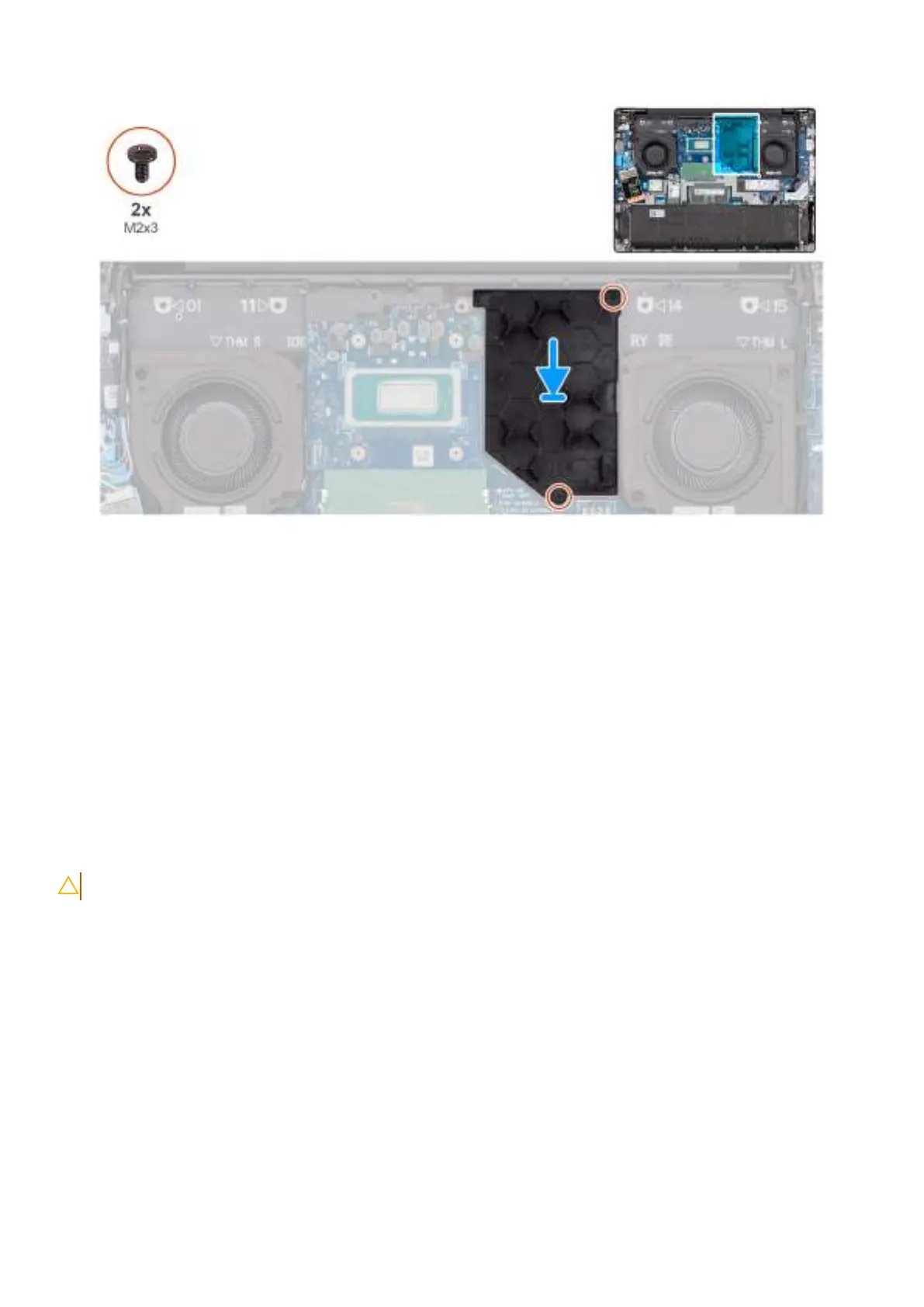

Figure 43. Installing the GPU filler
Steps
1. Align and place the GPU filler in the slot on the palm-rest assembly.
2. Replace the two screws (M2x3) to secure the GPU filler to the palm-rest assembly.
Next steps
1. Install the heat sink.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Battery frame
Removing the battery frame
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the wireless card.
About this task
The following images indicate the location of the battery frame and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
