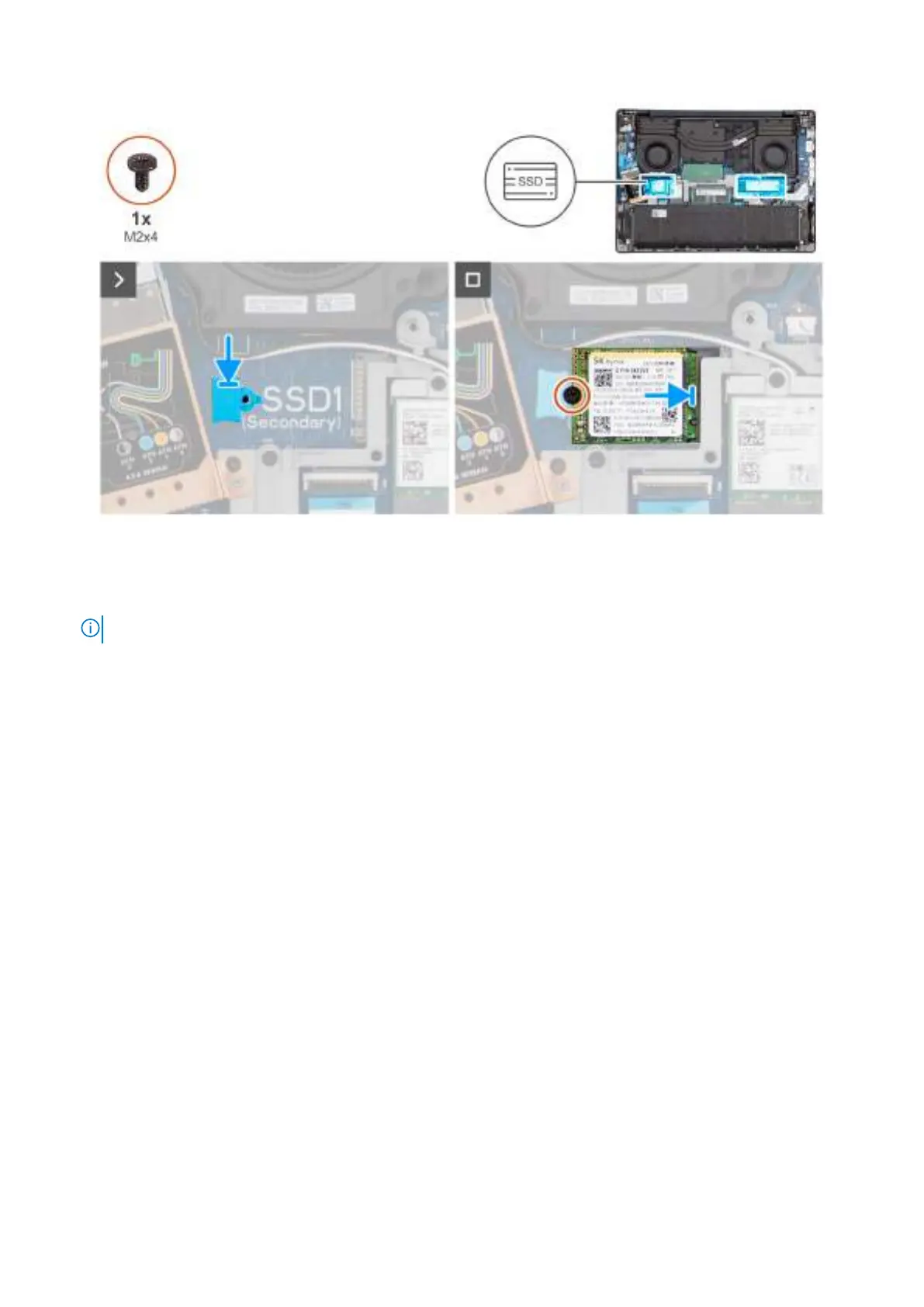

Figure 22. Installing the M.2 2230 solid state drive
Steps
1. Align and place the M.2230 SSD holder in its slot on the system board.
NOTE: This step applies only if you are replacing a M.2 2280 solid state drive with a M.2 2230 solid state drive.
2. Align the notch on the M.2 2230 solid state drive to the tab on the M.2 card slot (SSD1 or SSD2, whichever is applicable) on
the system board.
3. Slide the M.2 2230 solid state drive at an angle into the M.2 card slot on the system board.
4. Replace the screw (M2x4) to secure the M.2 2230 solid state drive to the palm-rest assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the M.2 2280 solid state drive (SSD) and provides a visual representation of the
removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
55
