Camera
Removing the camera
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the wireless card.
4. Remove the WWAN module, if available.
5. Remove the display assembly.
6. Remove the display bezel.
7. Remove the display panel.
About this task
NOTE: The camera module is removed with the foil as a single service part.
The following images indicate the location of the camera module and provide a visual representation of the removal procedure.

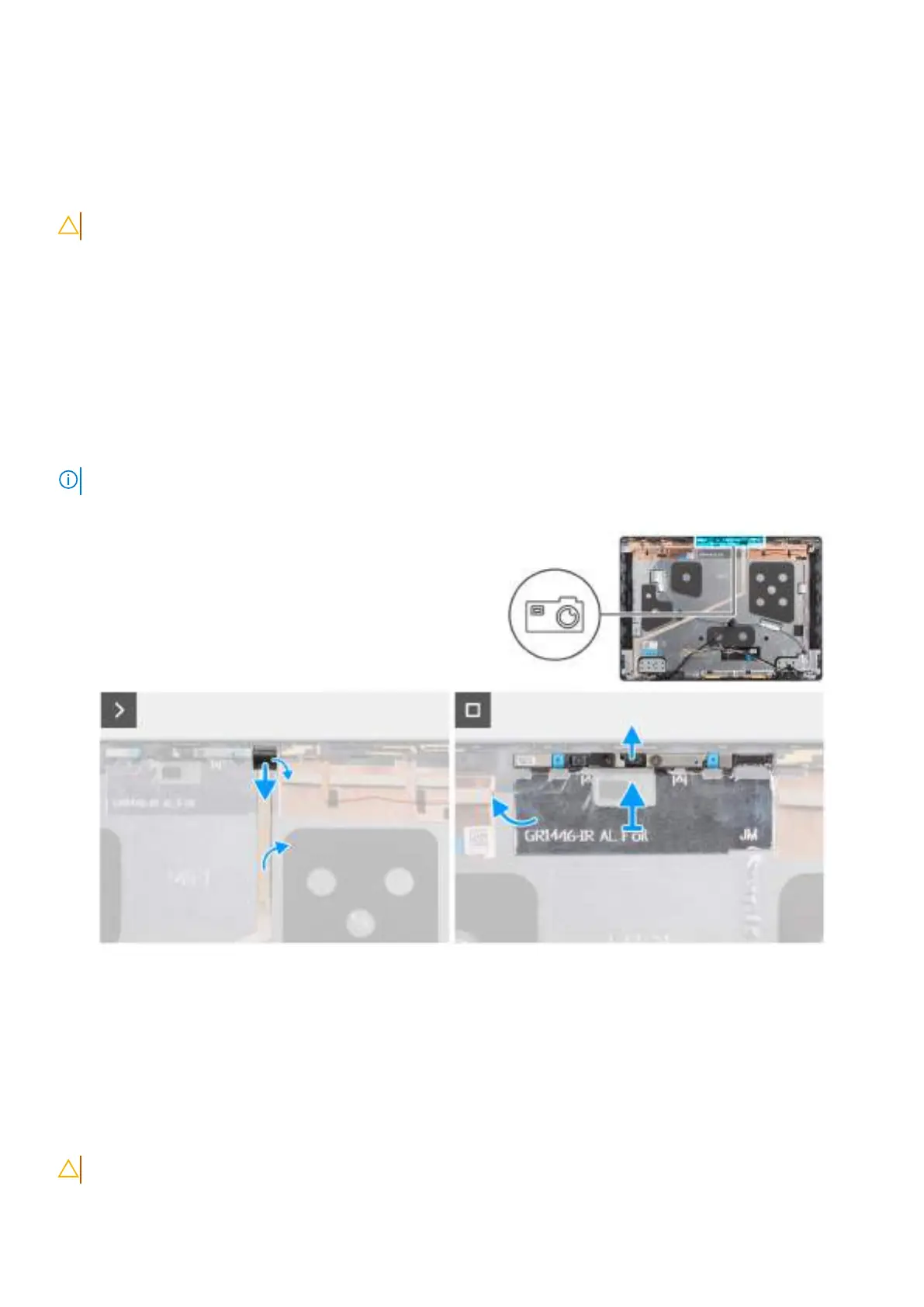

Figure 74. Removing the camera
Steps
1. Disconnect the display cable from the connector on the camera module.
2. Gently peel back the copper or aluminum foil, whichever is applicable, from the display back-cover and antenna assembly.
3. Remove the camera module, along with the foil, from the display assembly.
Installing the camera
CAUTION: The information in this installation section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 107
