Figure 72. Removing the display cable
Steps
1. Disconnect the display cable from the connector on the camera module.
2. Carefully peel back and remove the display cable from the display back-cover and antenna assembly.
Installing the display cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

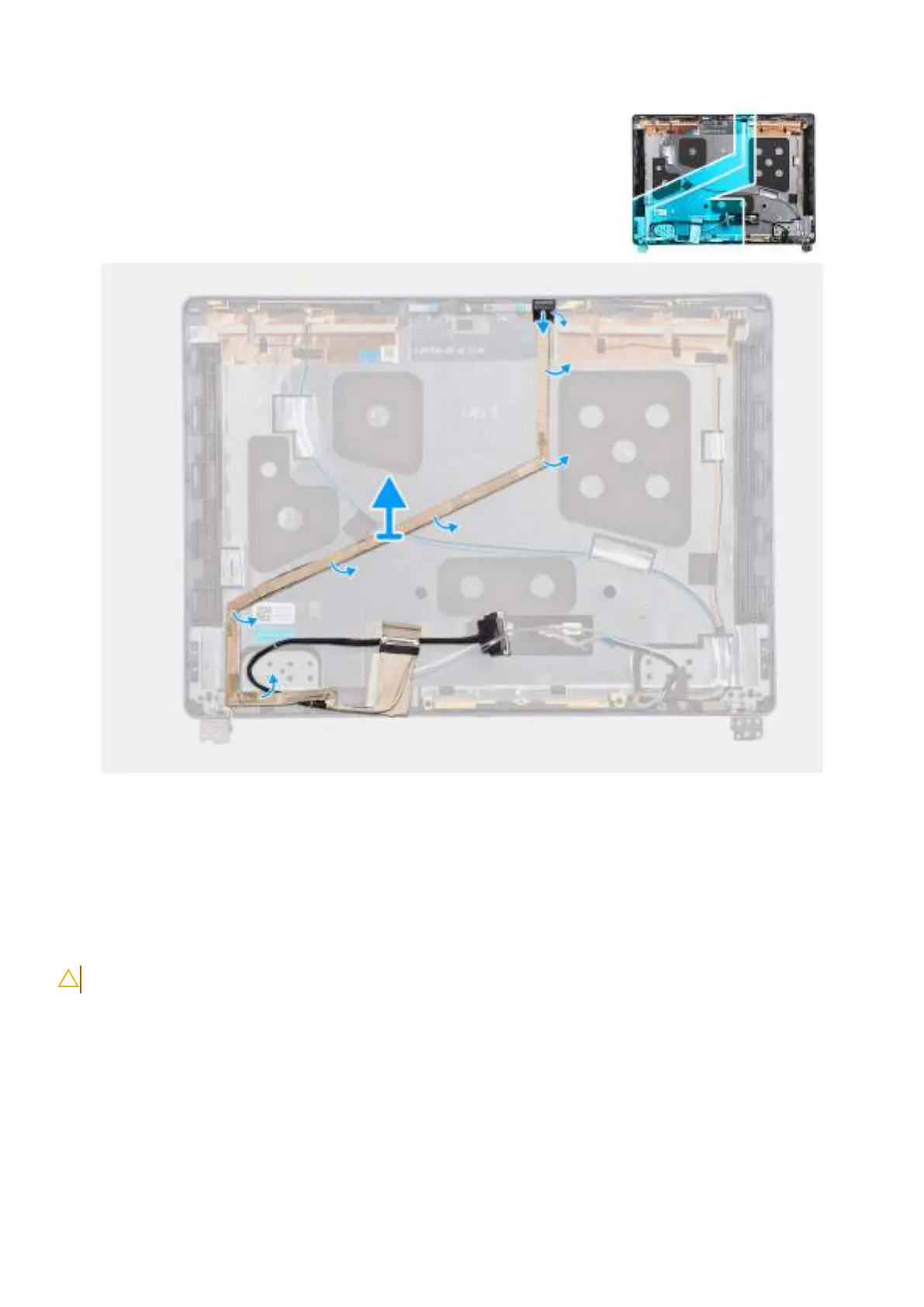

The following image indicates the location of the display cable and provides a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs)
105
