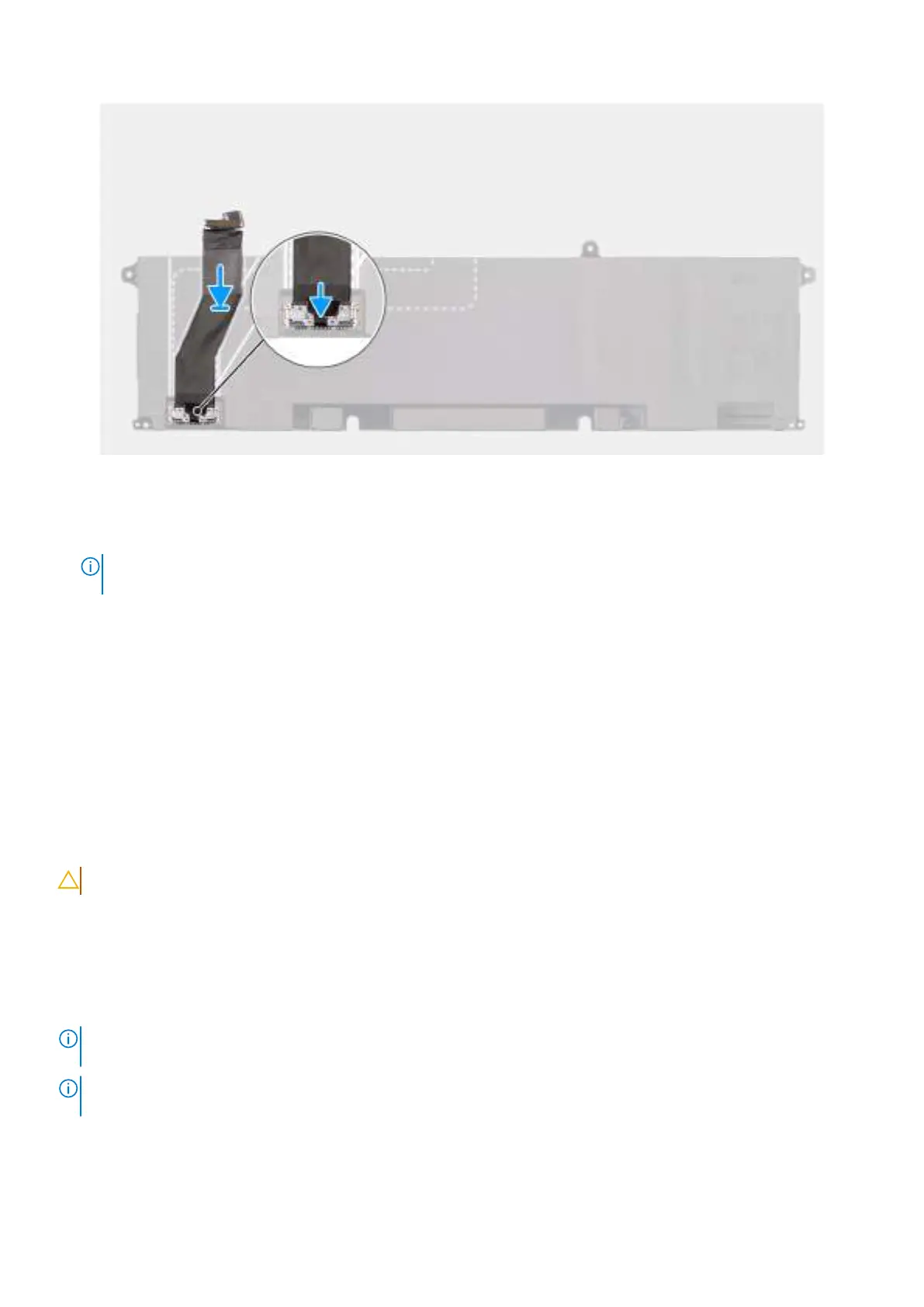

Figure 39. Connecting the battery cable
Steps
1. Connect the battery cable to the connector on the battery.
NOTE:
The connector on the battery cable has a switch that enables power supply to the computer. When connecting
the battery cable to the battery, ensure that the switch on the connector is turned on.
2. Adhere the battery cable to the battery.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool before you
touch it.
NOTE: For optimal cooling of the processor, do not touch the heat-transfer areas on the heat sink. The oils in your skin can
reduce the heat-transfer capability of the thermal grease.
The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.
