NOTE: This procedure applies only to computers shipped with an NFC sensor or smart-card reader installed.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the smart-card reader and provide a visual representation of the installation
procedure.

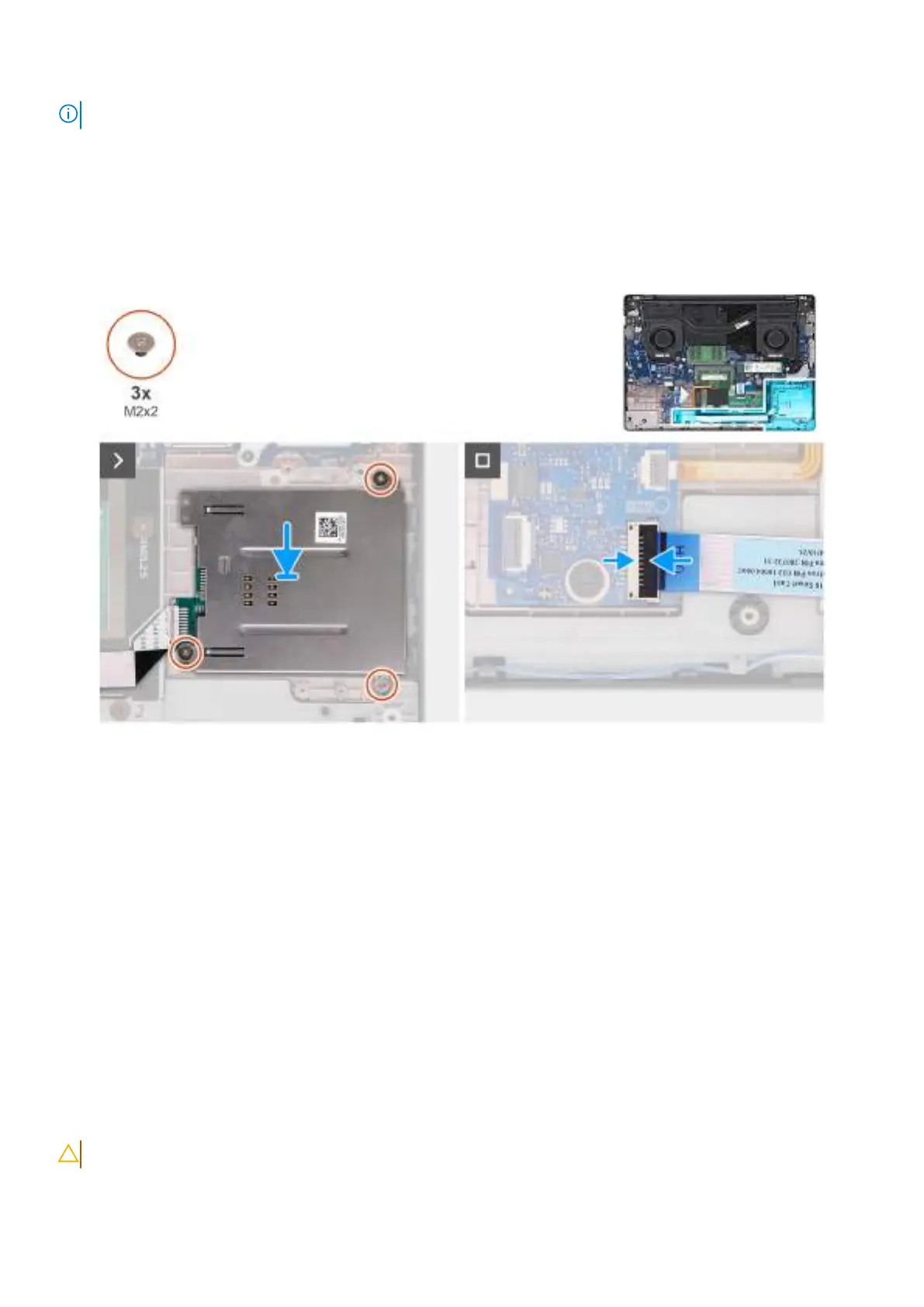

Figure 49. Installing the smart-card reader
Steps
1. Align and place the smart-card reader in the slot on the palm-rest assembly.
2. Replace the three screws (M2x2) to secure the smart-card reader to the palm-rest assembly.
3. Connect the NFC sensor or smart-card reader cable, whichever is applicable, to the connector (SC) on the USH board.
Next steps
1. Install the battery frame.
2. Install the wireless card.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
