CAUTION: The maximum operating angle for the display-panel hinge is 135 degrees.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the wireless card.
4. Remove the WWAN module, if available.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.

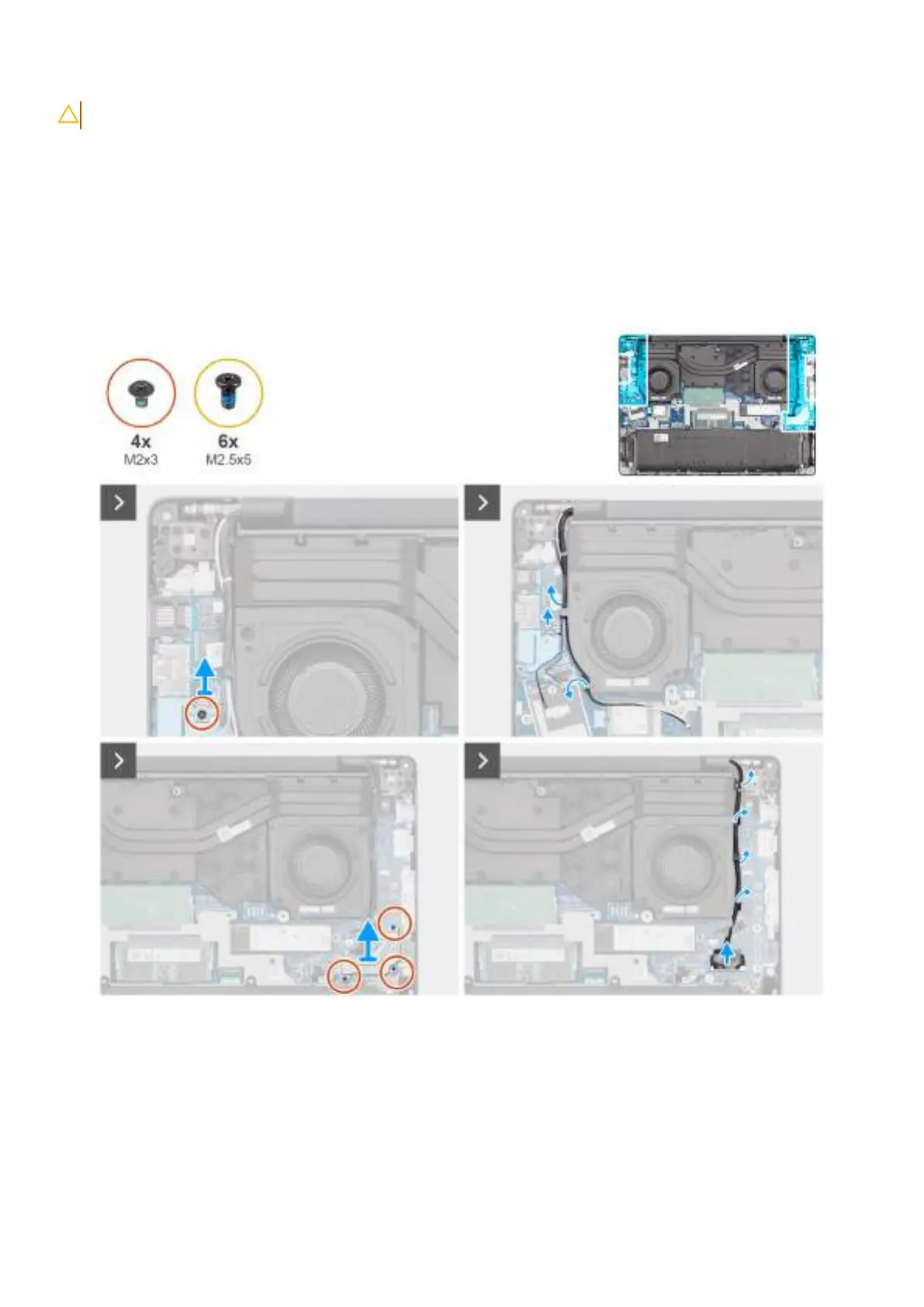

Figure 50. Removing the display assembly
84
Removing and installing Field Replaceable Units (FRUs)
