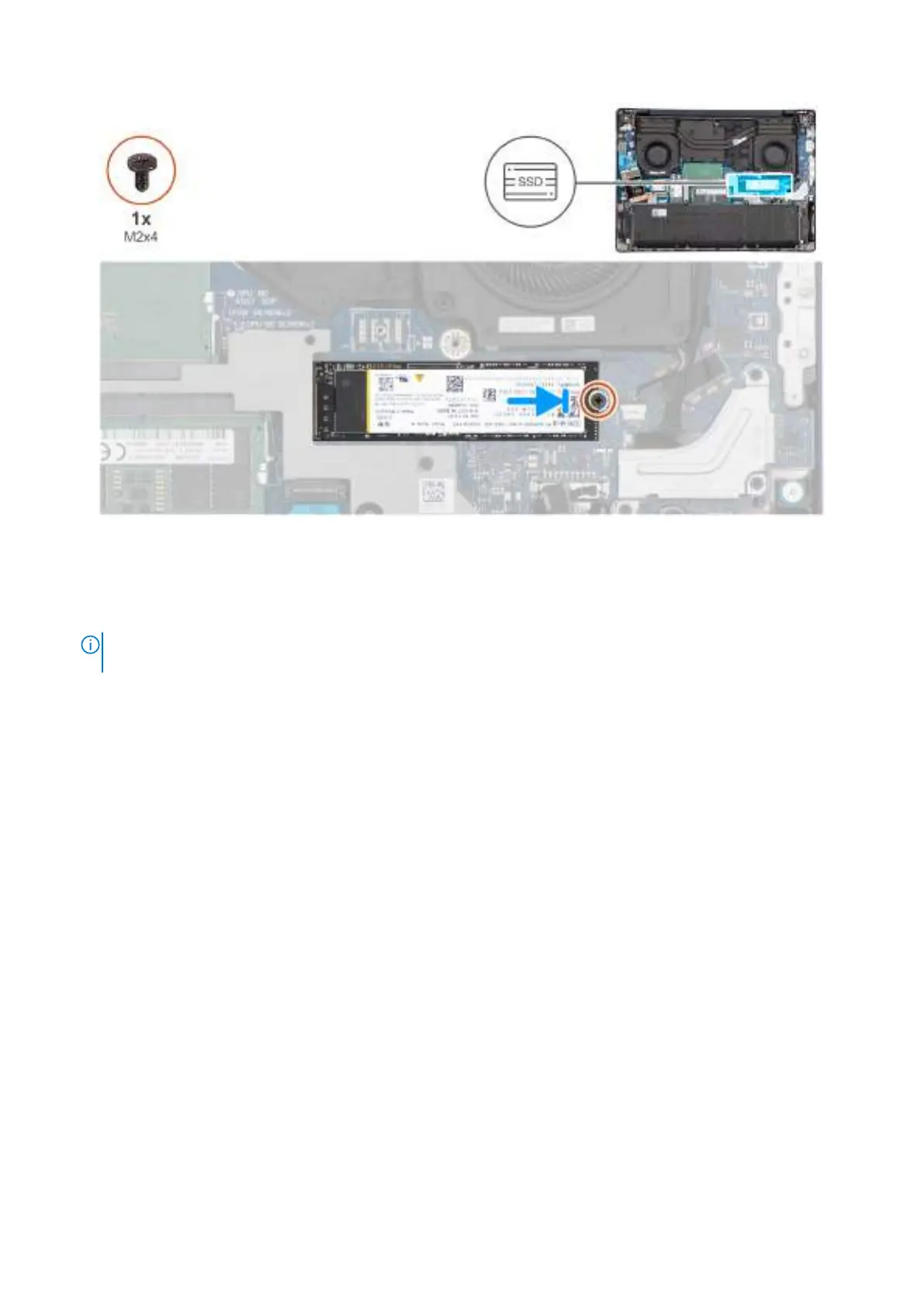

Figure 24. Installing the M.2 2280 solid state drive
Steps
1. Align the notch on the M.2 2280 solid state drive to the tab on the M.2 card slot (SSD1 or SSD2, whichever is applicable) on
the system board.
NOTE:
For computers shipped with a WWAN module installed, the M.2 2280 solid state drive can only be installed in
SSD2 slot (primary slot).
2. Slide the M.2 2280 solid state drive at an angle into the M.2 card slot on the system board.
3. Replace the screw (M2x4) to secure the M.2 2280 solid state drive to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
