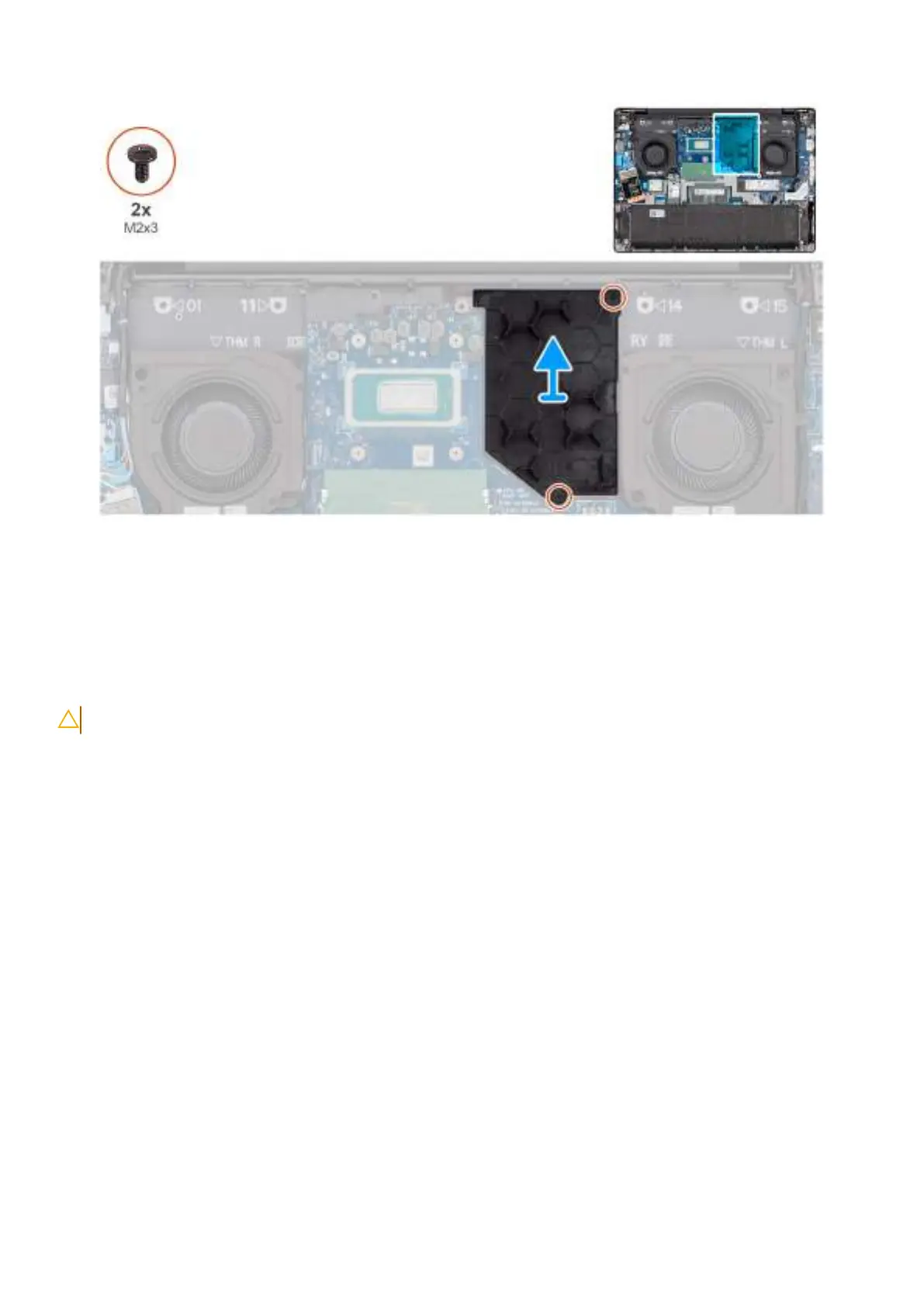

Figure 42. Removing the GPU filler
Steps
1. Remove the two screws (M2x3) that secure the GPU filler to the palm-rest assembly.
2. Lift the GPU filler off the palm-rest assembly.
Installing the GPU filler
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the GPU filler and provide a visual representation of the installation procedure.
76
Removing and installing Field Replaceable Units (FRUs)
