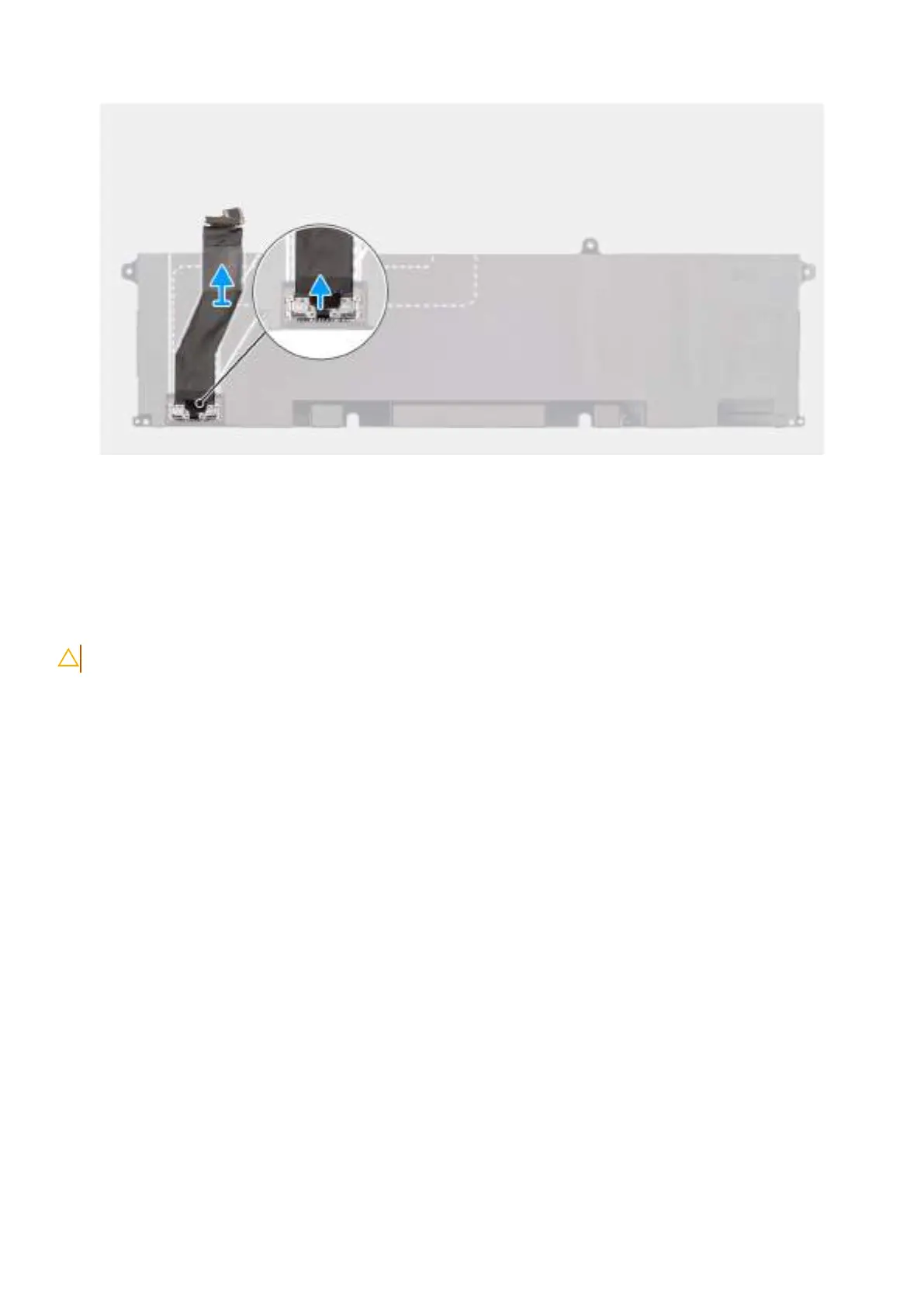

Figure 38. Disconnecting the battery cable
Steps
1. Peel back the battery cable from the battery.
2. Disconnect the battery cable from the connector on the battery.
Connecting the battery cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the battery cable and provides a visual representation of the installation procedure.
72
Removing and installing Field Replaceable Units (FRUs)
