7. For computers shipped without a fingerprint reader, remove the four screws (M2x3) and the two screws (M2x4) that secure
the system board to the palm-rest assembly.
For computers shipped with a fingerprint reader, remove the three screws (M2x3) and the two screws (M2x4) that secure
the system board to the palm-rest assembly.

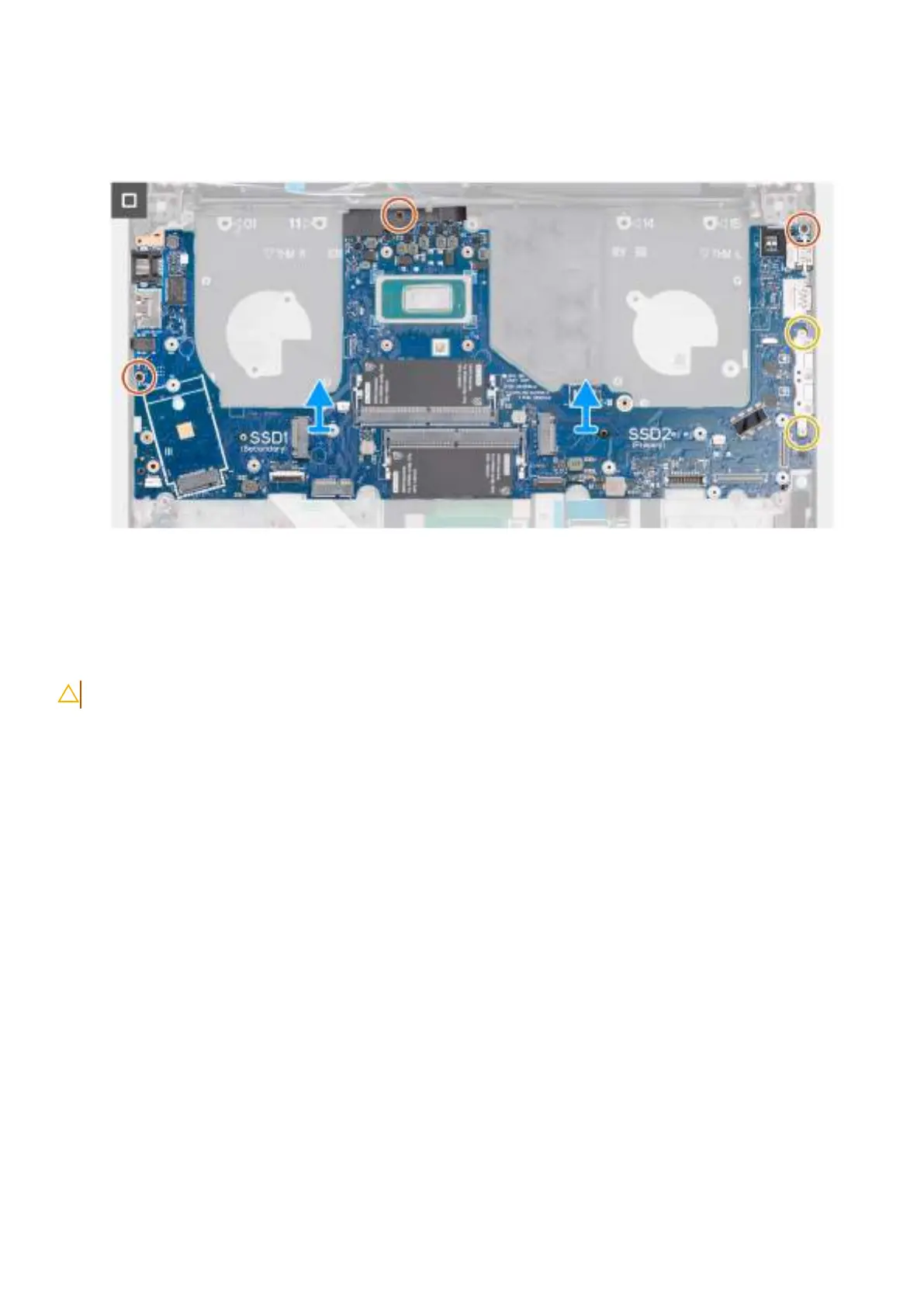

Figure 80. Removing the system board
8. Carefully lift and remove the system board at angle, from the palm-rest assembly, to clear the ports from the port slots.
Installing the system board
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the connectors on your system board.
Removing and installing Field Replaceable Units (FRUs)
113
