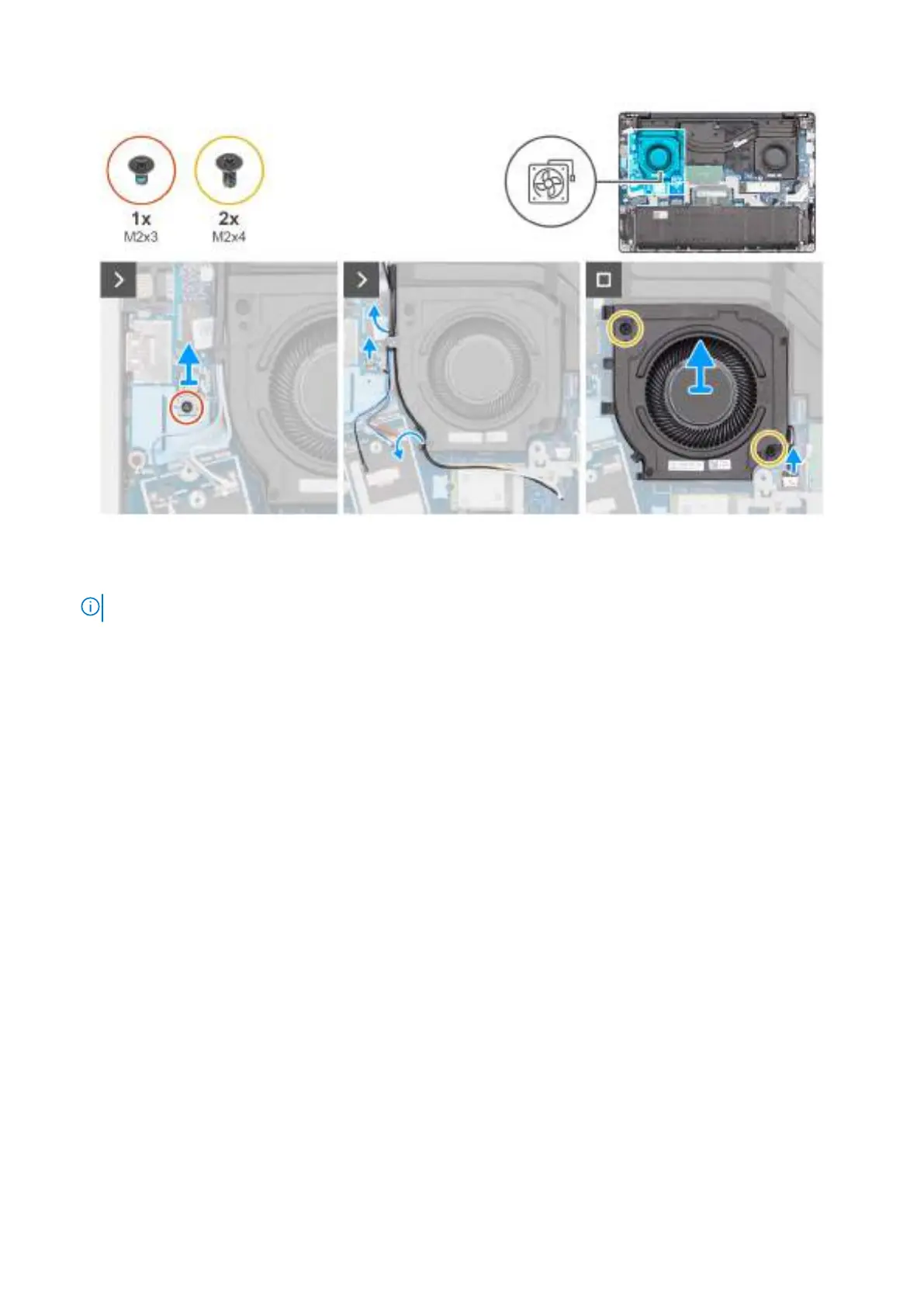

Figure 34. Removing the right/processor fan
Steps
1.
NOTE: Steps 1 to 3 apply only to computers shipped with a WWAN module installed.
Remove the screw (M2x3) that secures the Darwin-cable bracket to the system board.
2. Lift the Darwin-cable bracket off the system board.
3. Disconnect the Darwin-antenna cable from the connector (DARWIN) on the system board.
4. Remove the wireless-antenna cables and WWAN-antenna cables, if available, from the routing guides on the fan.
5. Disconnect the fan cable from the connector (FANL1) on the system board.
6. Remove the two screws (M2x4) that secure the fan to the palm-rest assembly.
7. Lift the right/processor fan off the palm-rest assembly.
Installing the right/processor fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the right/processor fan and provide a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs)
67
