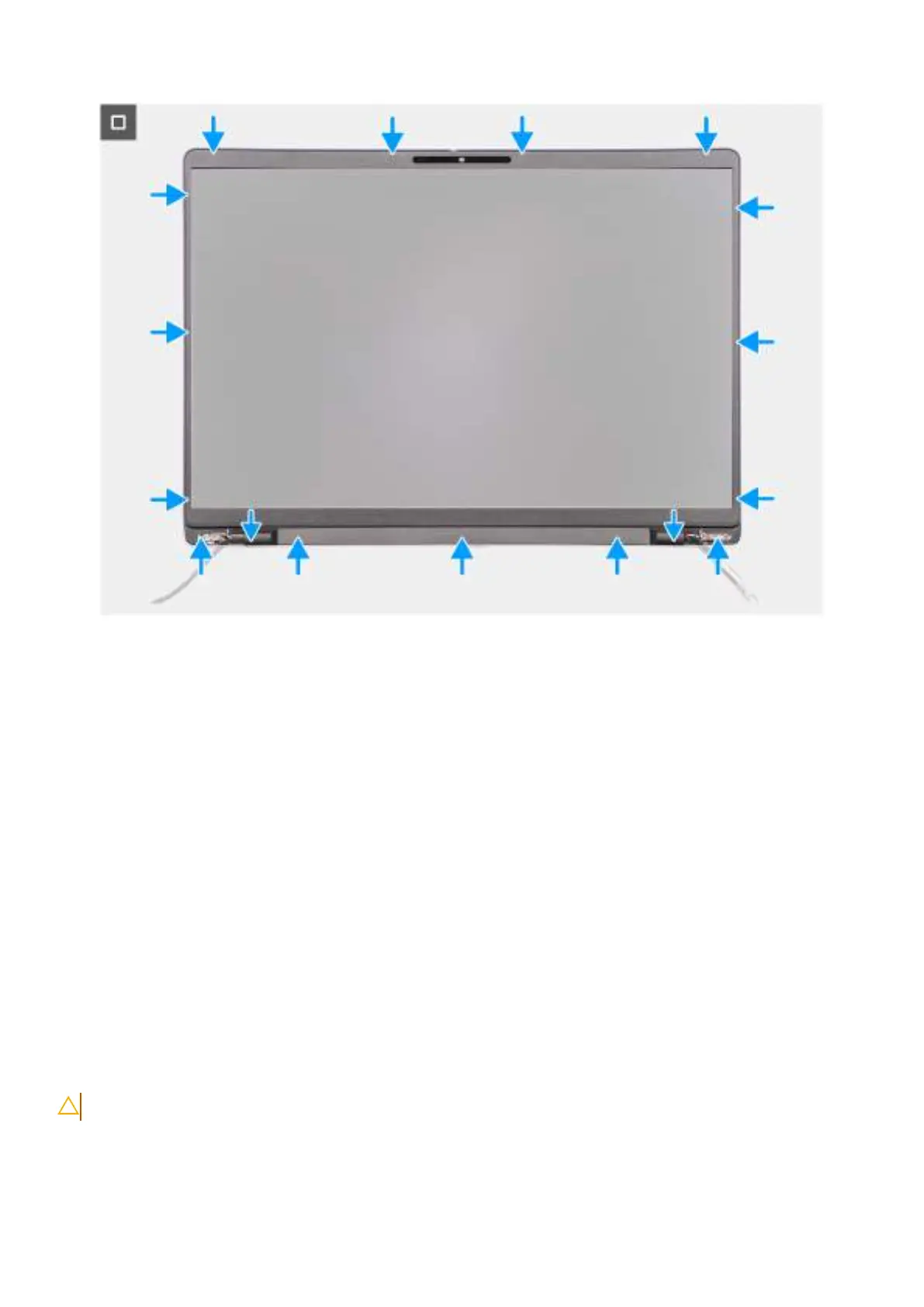

Figure 63. Installing the display bezel
Steps
1. Place the display assembly on a clean and flat surface.
2. Align and place the display bezel on the display assembly.
3. Route the display cable and wireless-antenna cables through the respective display-hinge caps.
4. Press the display-hinge caps down on the display hinges, until they click in place.
5. Starting from the bottom corner, press the display bezel and work around the entire bezel until it snaps onto the display
assembly.
Next steps
1. Install the display assembly.
2. Install the WWAN module, if available.
3. Install the wireless card.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
Display panel
Removing the display panel
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
