Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The camera module is installed with the foil as a single service part.
The following images indicate the location of the camera module and provide a visual representation of the installation
procedure.

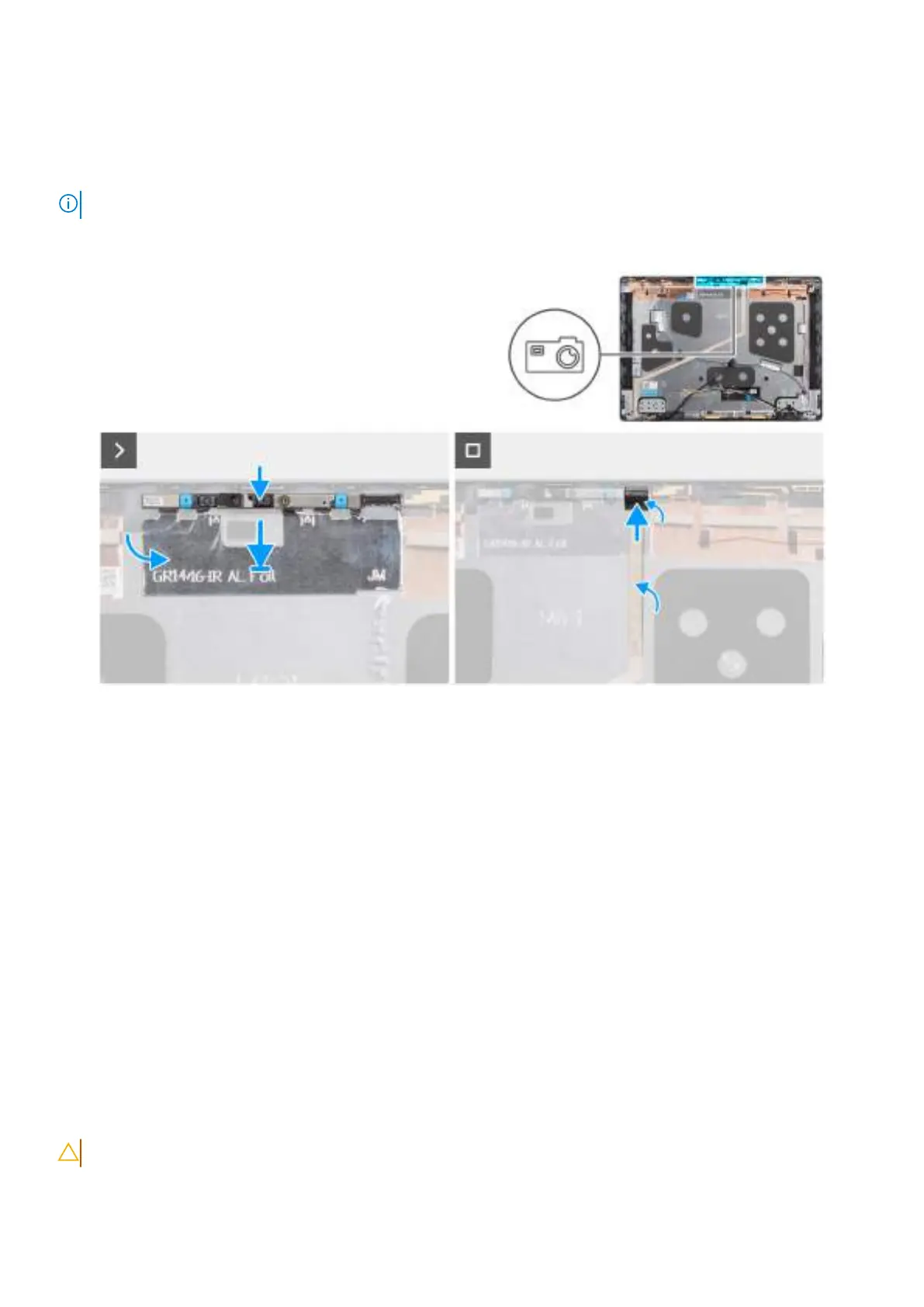

Figure 75. Installing the camera
Steps
1. Align and place the camera module in the alignment post on the display back-cover and antenna assembly.
2. Adhere the copper or aluminum foil, whichever is applicable, to the display back-cover and antenna assembly.
3. Connect the display cable to the connector on the camera module.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WWAN module, if available.
5. Install the wireless card.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Display back-cover and antenna assembly
Removing the display back-cover and antenna assembly
CAUTION: The information in this removal section is intended for authorized service technicians only.
108 Removing and installing Field Replaceable Units (FRUs)
