Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.

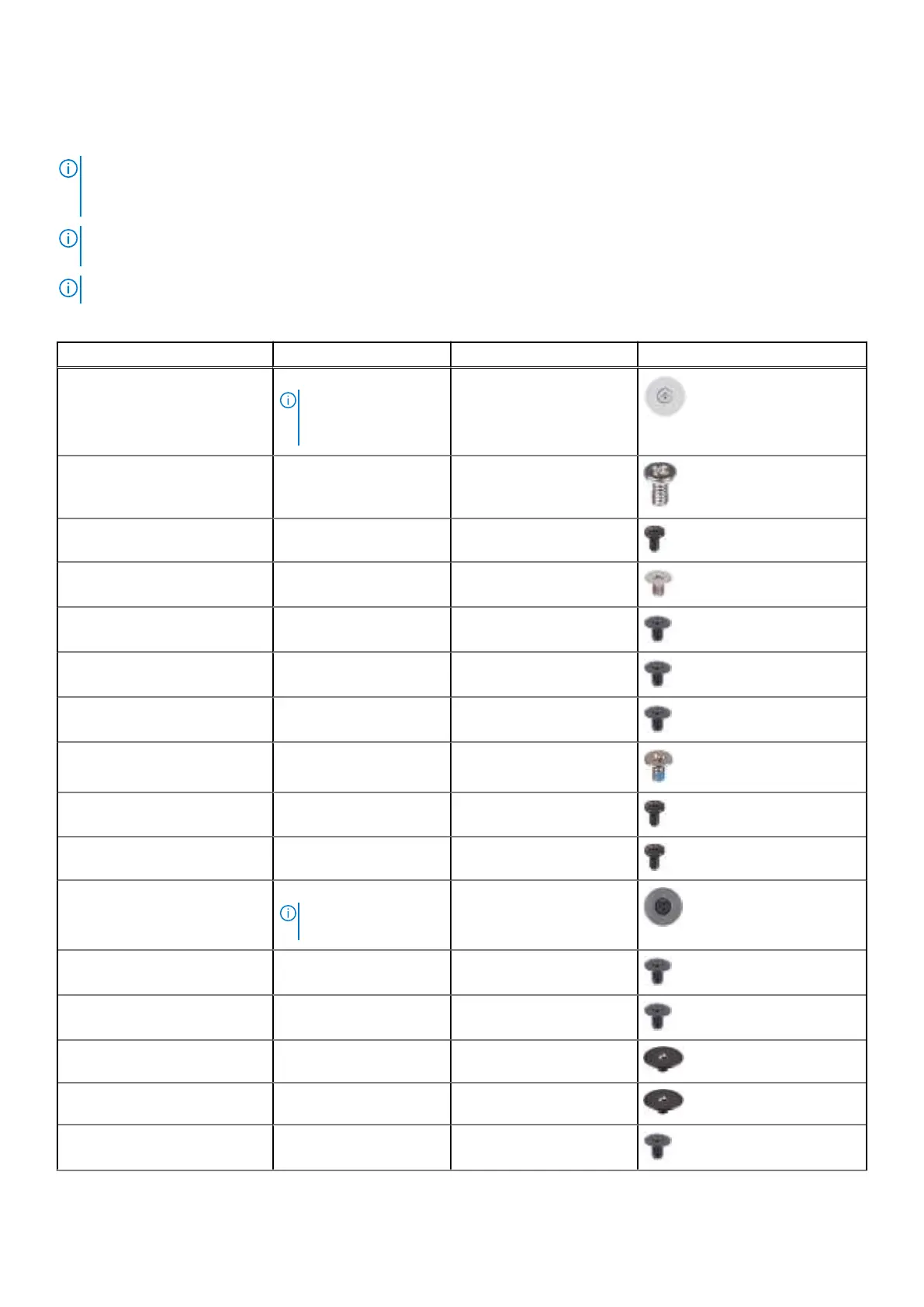

Table 35. Screw list
Component Screw type Quantity Screw image
Base cover Captive screw
NOTE: Screws are
part of the base
cover.
9
Battery M2x4 8
Solid state drive M2x4 1
Wireless-card bracket M2x3 1
WWAN-module shield M2x3 2
WWAN-module bracket M2x3 1
Darwin-cable bracket M2x3 1
Speakers M1.6x3 4
Right/Processor fan M2x4 2
Left/Video fan M2x4 2
Heat sink Captive screw
NOTE: Screws are
part of the heat sink.
4
GPU filler M2x3 2
Battery frame M2x3 10
USH board M2x2 2
Smart-card reader M2x2 3
Display-cable bracket M2x3 3
40 Working inside your computer
