Dell Pro Max 16 - Page 123

To Next Page

To Previous Page

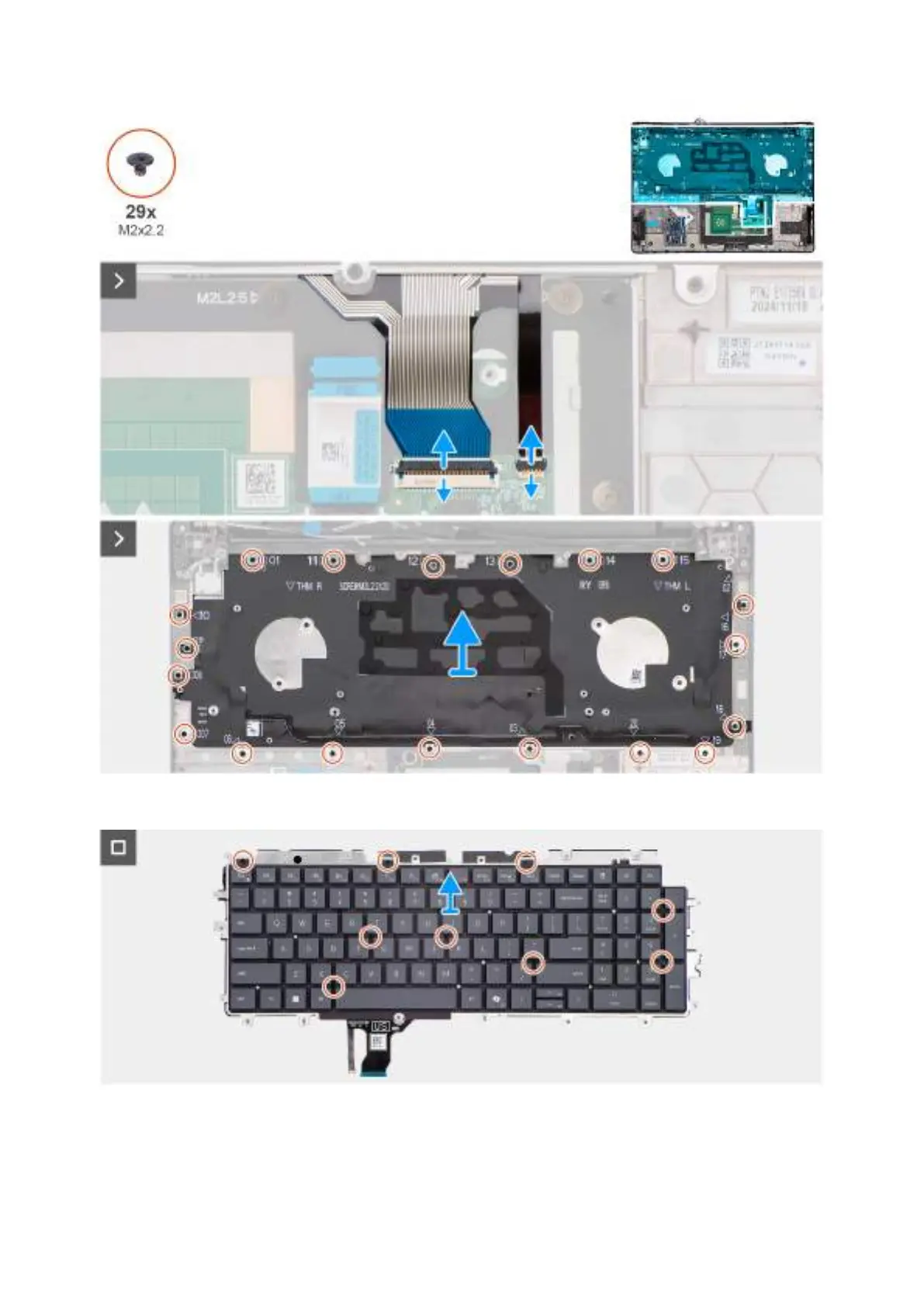

Figure 88. Removing the keyboard

Figure 89. Removing the keyboard

Steps

1. Disconnect the keyboard cable from the connector (KEYBOARD) on the touchpad board.

Removing and installing Field Replaceable Units (FRUs)

123
