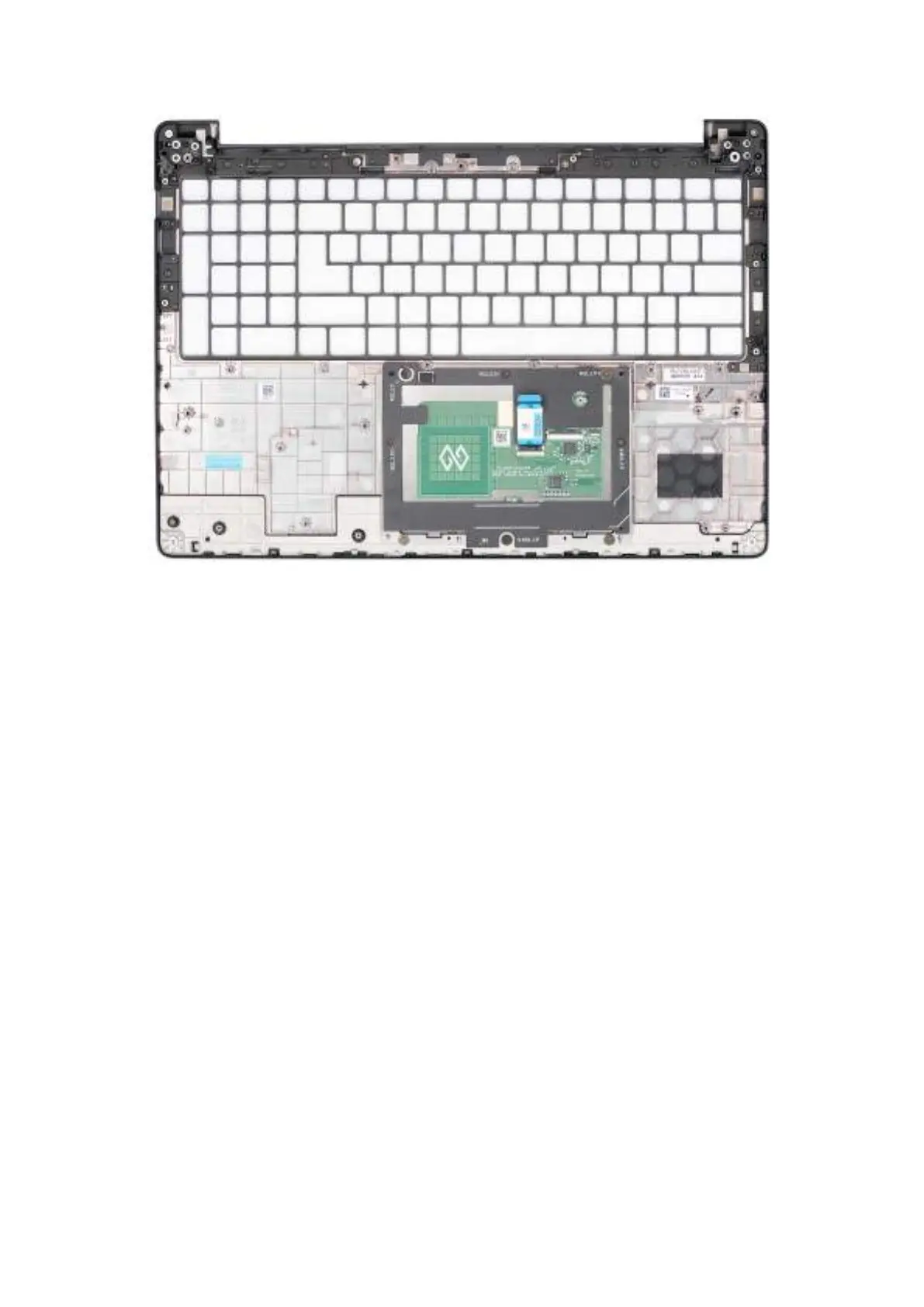

Figure 93. Palm-rest assembly
Steps
Place the palm-rest assembly on a flat surface and perform the Next steps to install the palm-rest assembly.
Next steps
1. Install the keyboard.
2. Install the power button.
3. Install the system board.
4. Install the display assembly.
5. Install the smart card reader, if available.
6. Install the USH board.
7. Install the battery frame.
8. Install the GPU filler.
9. Install the heat sink.
10. Install the left/video fan.
11. Install the right/processor fan.
12. Install the speakers.
13. Install the WWAN module, if available.
14. Install the wireless card.
15. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever is applicable.
16. Install the memory module.
17. Install the battery.
18. Install the base cover.
19. Follow the procedure in After working inside your computer.
