Dell Pro Max 16

To Next Page

To Previous Page

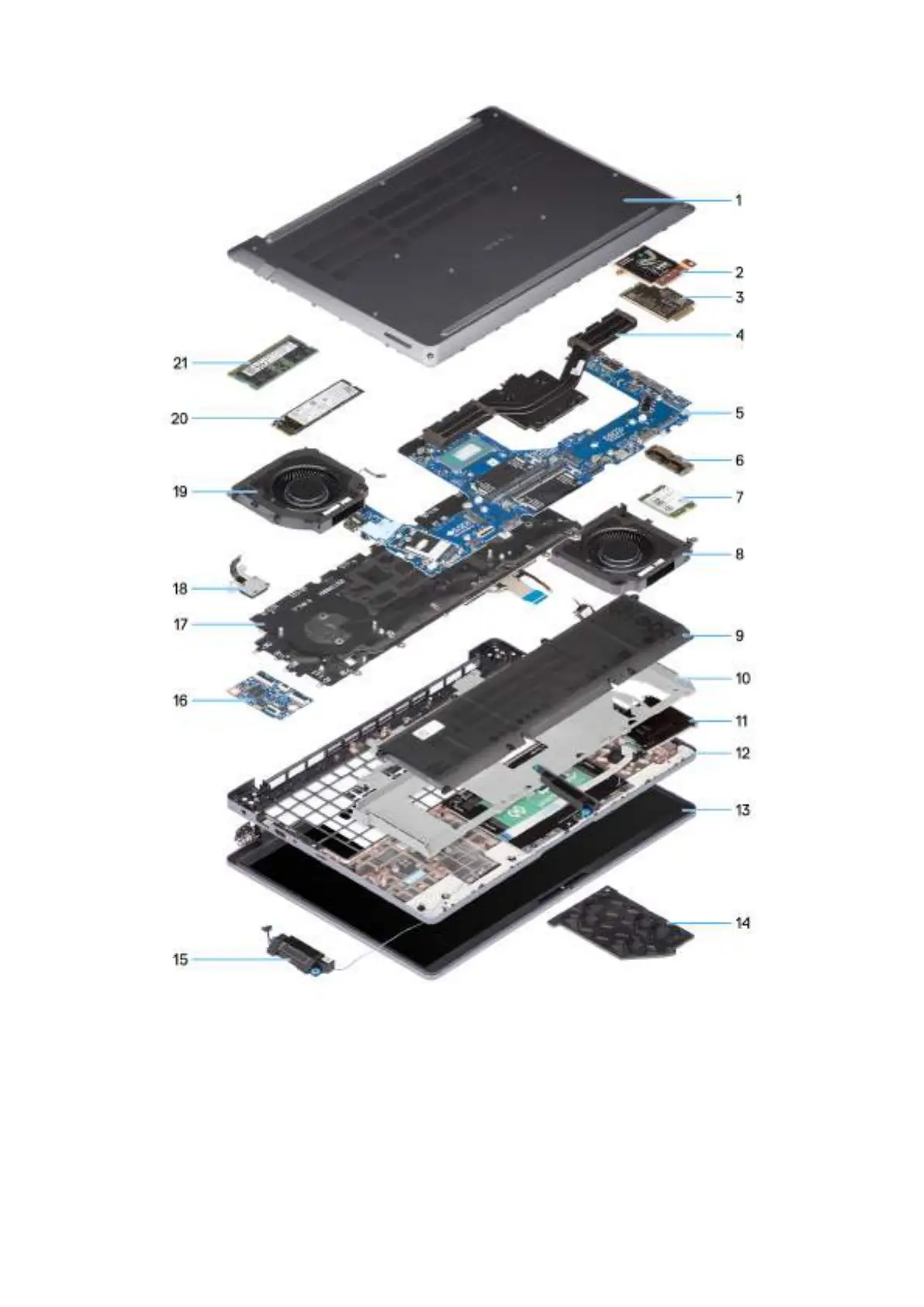

Figure 11. Major components of your Dell Pro Max 16 MC16250

1. Base cover

2. WWAN-module shield

3. WWAN module

4. Heat sink

5. System board

6. USB Type-C module

7. Wireless card
