Chapter 9 Vision Manager
(3) Measurement input
Find the center of gravity with image analysis and enter the results as the coordinates.
Operating procedure
1. Display an image in the Vision monitor window.
2. Specify the point to edit.
3. Choose the Measurement input radio button to display a selection window in the Vision
monitor window
4. Move the cursor to the target coordinates with dragging or with arrow keys.
Moving window with keyboard
←, →, ↑ and ↓ keys: These four arrow keys move the window in the corresponding direction.
W and S keys: These keys widen and shrink the window, respectively.
H and L keys: These keys make the window higher and lower, respectively.
5. Press the Measure button to display the center of gravity.
6. Press the Read button to read in the coordinates.

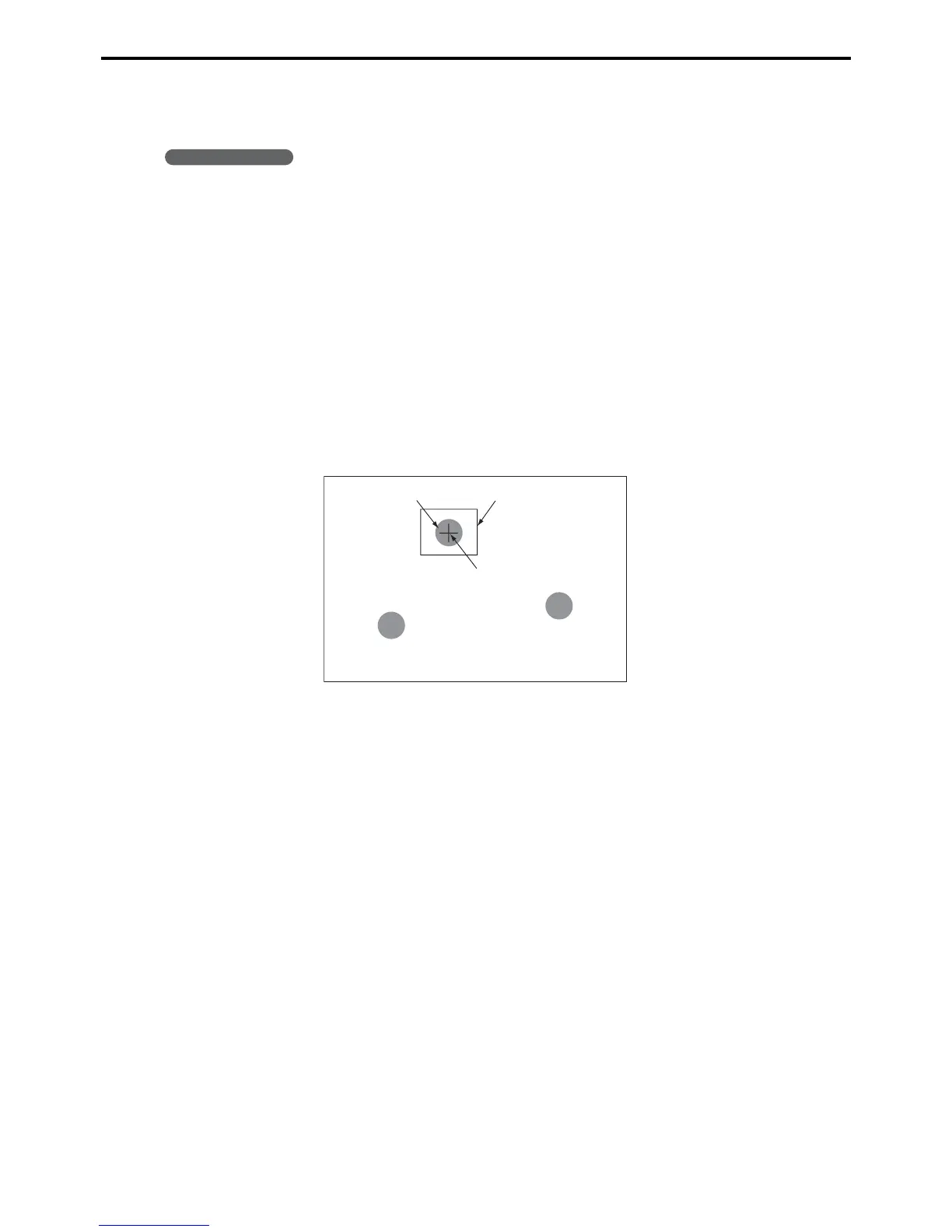

Selection window
Center of gravity
Point
