9.2.11 Edge detection
This function detects edges within the specified window.
This measurement uses a projection window (Parameter = 0 or 1).

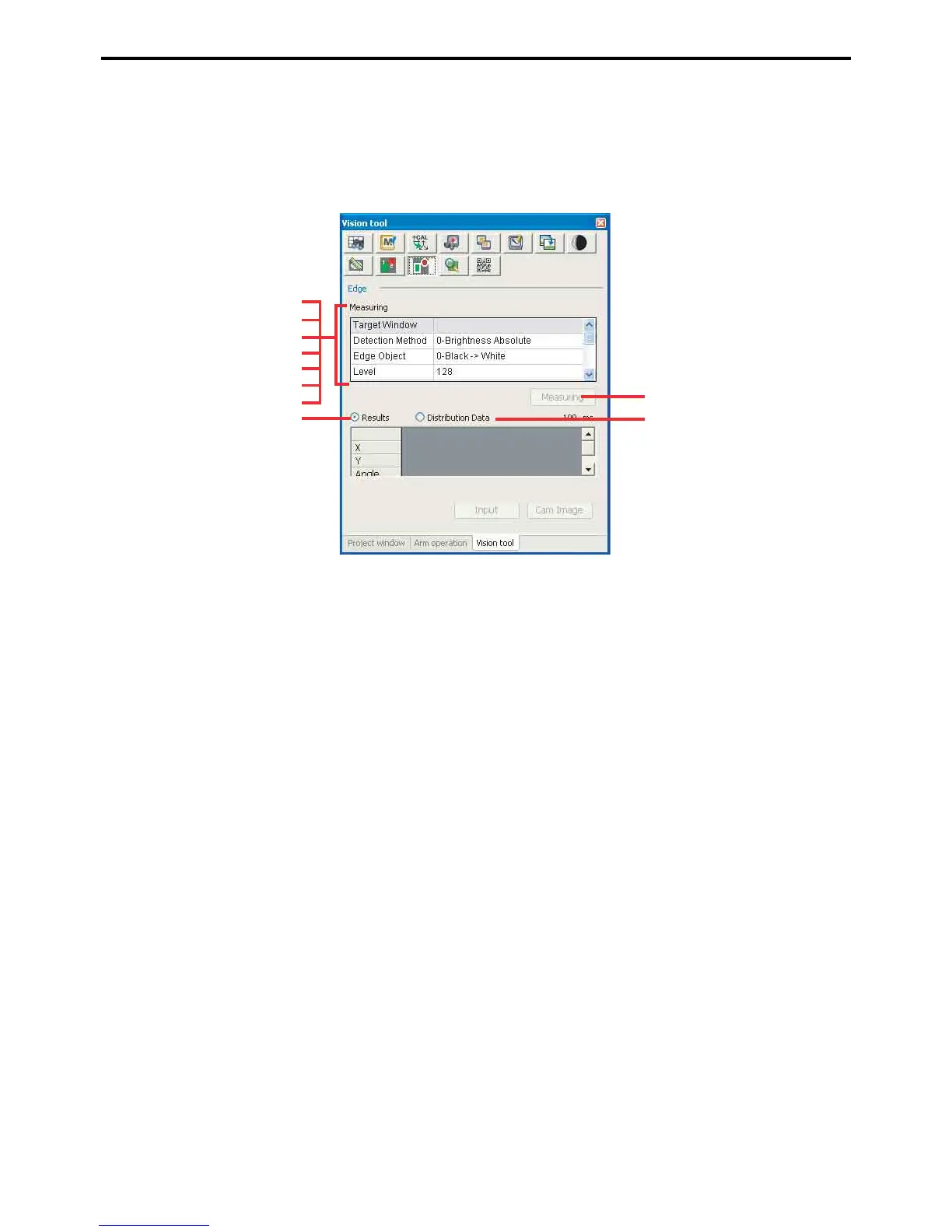

Edge settings screen
A: Target window
This field specifies the window range to measure.
B: Method
This field specifies the edge detection method.
C: Transition
This field specifies the transition defining edges.
D: Level
This field specifies the edge detection level.
E: Scan direction
This field specifies the scan direction.
F: Digitization upper threshold
G: Digitization lower threshold
These two fields display/specify the digitization thresholds for image analysis.
H: Measure
This button proceeds with the specified operation.
I: Results
This radio button lists measurement results.
J: Distribution data
This radio button displays the distribution for the measurement results.
H
A
B
C
D
E
F
G
I
J
